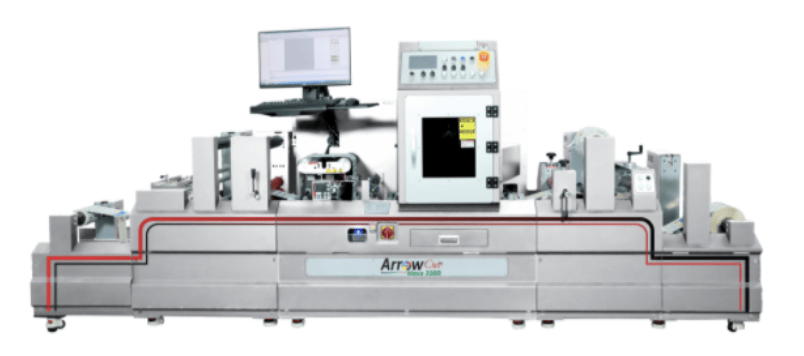

The ArrowCut Nova 330R is the full-width laser finishing line in the ArrowCut range. It takes printed roll stock up to 350mm and returns finished, slit, rewound labels — lamination, laser die cutting, matrix removal and up to seven slitting blades all running in one pass at web speeds to 30 m/min.
Because the cut is a laser, not a die, the shape lives in the file. Kiss cuts, full cuts and perforation happen without tooling, and a new label shape costs setup time rather than a die order. For a converter carrying a lot of SKUs, that removes the single biggest source of delay between a print job finishing and product shipping.
The system ships as a complete station: unwind, rewind, dual rewind, waste collection, automated web guide, black mark sensor, integrated touch screen and digital display pad, plus a computer tower, monitor and operational software. A 250W laser power upgrade is available for heavier substrates and faster cutting.
Specifications
| Brand | Arrow Jet |
| Type | Roll-to-roll laser label finishing system |
| Max. web width | 350 mm |
| Cutting area | 300 x 300 mm |
| Max. web speed | 30 m/min |
| Max. roll diameter | 400 mm |
| Slitting | In-line, 7 blades |
| Rewind | Dual rewind station |
| In-line modules | Unwind, lamination, laser, matrix removal, slitter, dual rewind, waste collection tray |
| Registration | Black mark sensor, automatic web guide system |
| Interface | Integrated touch screen, digital display pad, computer tower and monitor, operational software |
| Options | 250 W laser power upgrade, auto job change barcode scanner, fume extractor, water chiller (required for 150 W and above) |
| Installation & training | Quoted separately (5 days on site) |
| Condition | New |
Applications
Questions about laser power, extraction, chiller requirements or lead time? Contact the Allprintheads team and we’ll confirm the right configuration before you order.
