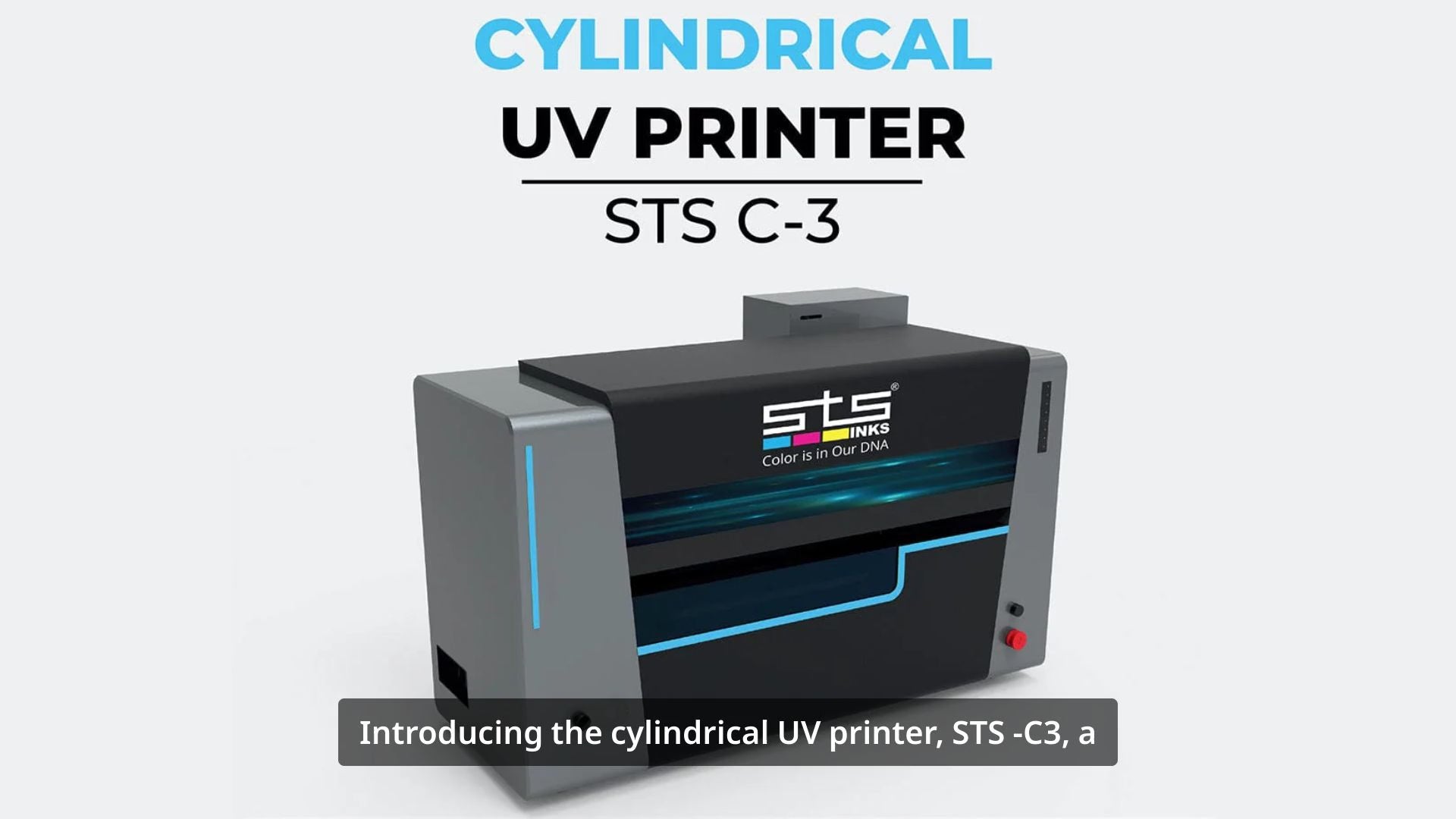

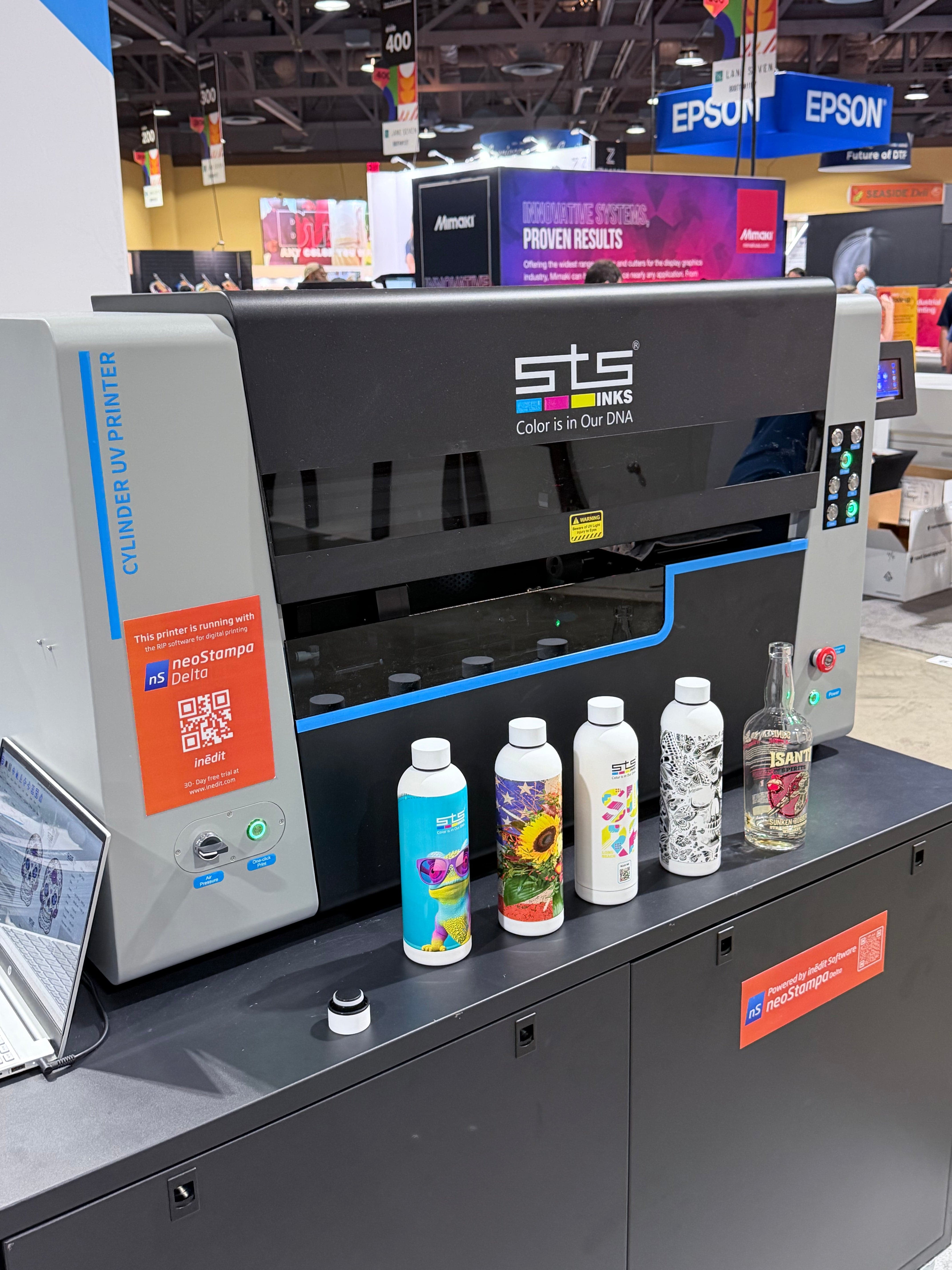

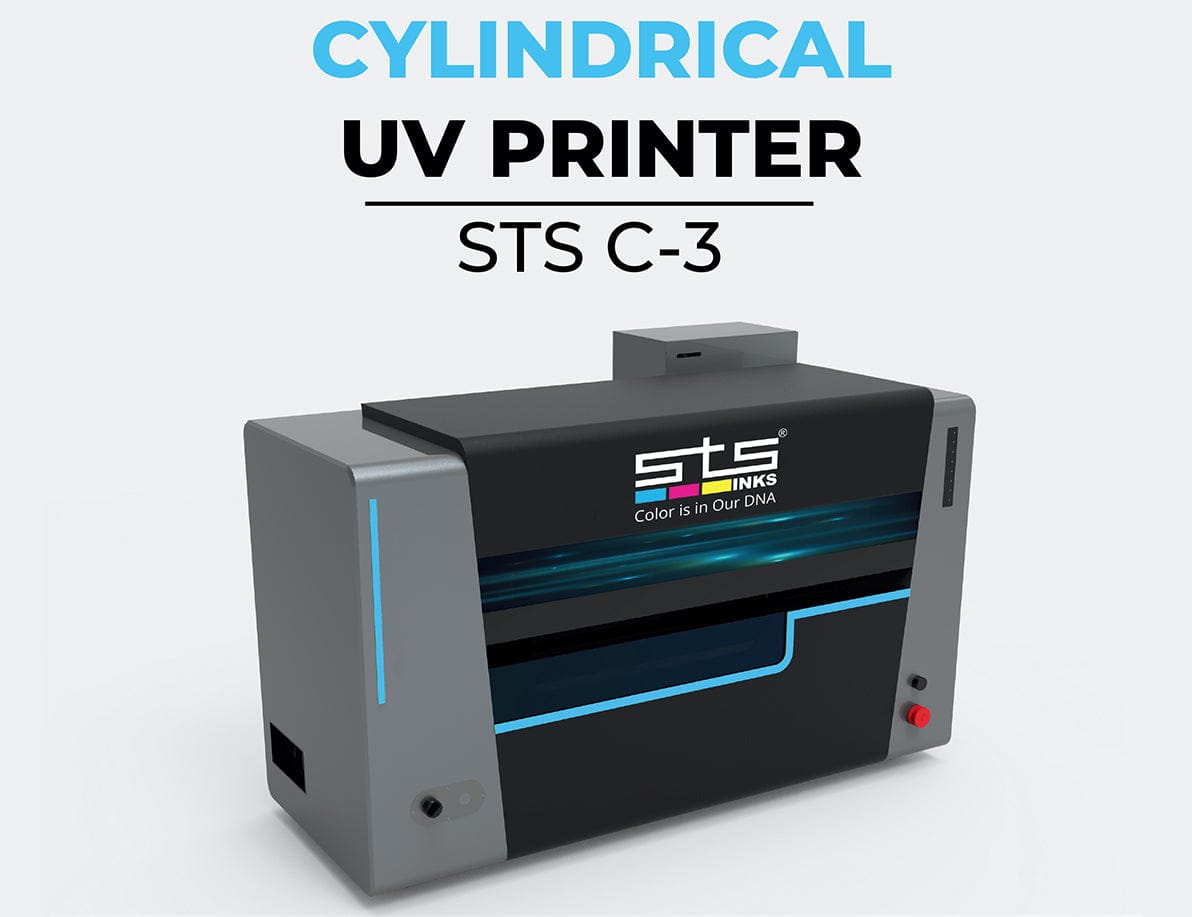

Cylindrical UV Printer STS C-3


Price:
Sale price$42,000.00 USD
FINANCE NOW
When product is not in stock, usually the time to process is 5-7 days.

Pickup available at Main Office

Usually ready in 2 hours

Description

Printer Name Cylindrical UV Printer
Model STS C-3
Printing Resolution 720 DPI – 2880 DPI
Number Of Print Head 3 pcs
Print Head Epson i1600
Ink Mode CMYK+W+V
Print Size 0 – 240mm | 0 – 9.44″ Length, 55-180mm | 2.16″ – 7.08″ Diameter, 12″ Taper
Ink System Siphon positive-pressure ink supply system
Ink Type Eco UV Curing ink
File Format TIFF, JPEG, ESP, PDF, etc
RIP Software CADlink | FlexiPRINT | Inedit
Voltage AC110V+/-10%
Interface Type High-speed 3.0 USB cable
Operating Environments Temperature: 15°C-30°C | 57F° – 86°F
Humidity: 30%RH – 70%RH
Platform Jig Special printing fixture
Dimensions of Printer(LxWxH) 1340mm * 480mm * 730mm |
52.7″ * 18.9″ * 28.74″ | (LxW.H)
Rated Power 1300W
Curing System LED UV curing system
Machine Weight 134 kg | 295.419 lbs


  • VARIABLE INK DROP TECHNOLOGY

Variable Ink Drop Technology controls the voltage that powers the printhead components so that the same nozzle can drop ink down in various sizes as needed which produces high quality images at high speed with vibrancy and smooth gradations.

VARIABLE INK DROP TECHNOLOGY

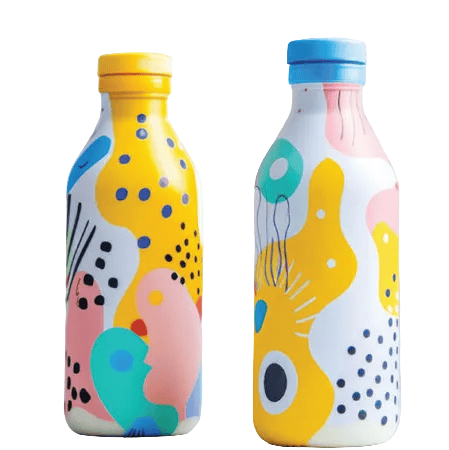

  • AUTOMATIC BOTTLE ADJUSTMENT

The built-in sensors detect the varying bottle sizes and automatically adjust settings to ensure precise printing, eliminating the need for manual adjustments.

 AUTOMATIC BOTTLE ADJUSTMENT

  • POWERFUL HIGH-DROP PRINTING

Supports 8mm high-drop printing, with automatic laser measurement of product shape for precise positioning. Enables seamless and accurate printing on irregularly shaped products.

C 3 Cylinder UV powerful
