EFI • Printhead
EFI ASSY, PRINTHEAD,GEN 5,POSITION A/B, H3/H5 - 45163642 / 45209015
SKU: PPHRI18049
About this printhead

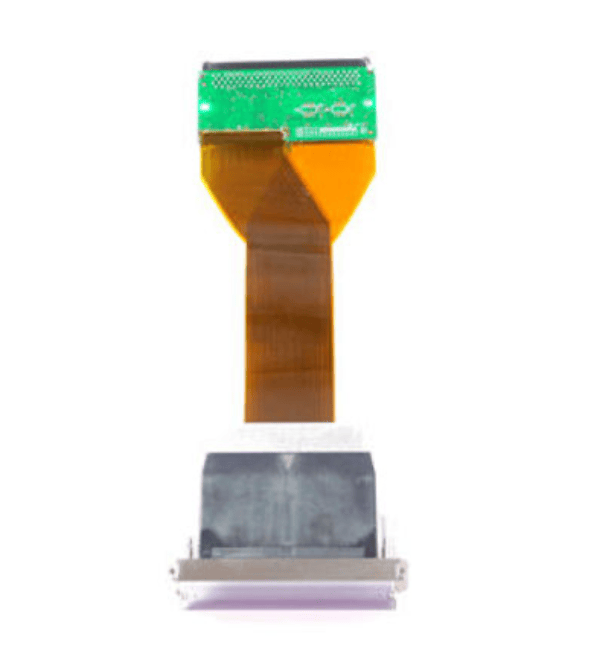

This original EFI printhead (EFI part number 45163642 / 45209015, Ricoh part number N221414B) is suitable for a range of EFI printers. This printhead is 310mm long in total (head body + cable + connectors). The head cable is 240mm long.
Specifications
| SKU | PPHRI18049 |
| Part No. | 45209015 |
| Brand | EFI |
| Condition | New |
| Dimensions | 89 x 25 x 69 mm (excluding cables) |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle density | up to 600 npi |
| Native drop volume | 7 pl |
| Drop volume range | 7 - 35 pl |
| Drop velocity | 7 m/s |
Compatible printers
Compatible printers
EFI Vutek 5REFI Vutek 5r+Efi Vutek H3Efi Vutek H5Quantum Matan 5m
All printheads are brand new, never used or refurbished. Not sure this is the right head for your machine? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
