Description
Mimaki • Spare Part

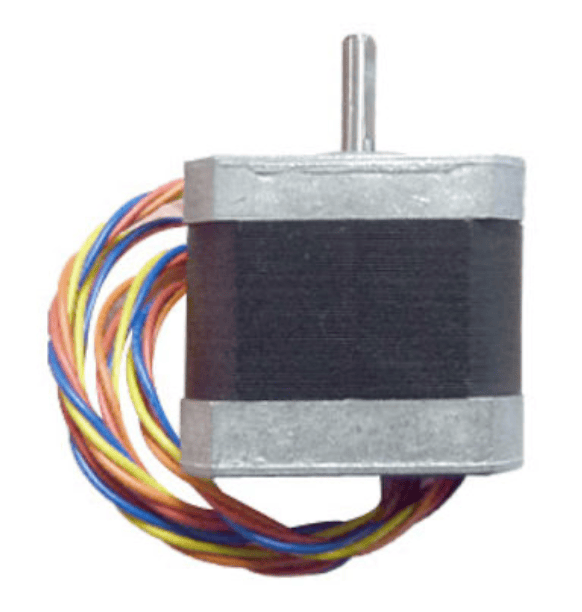

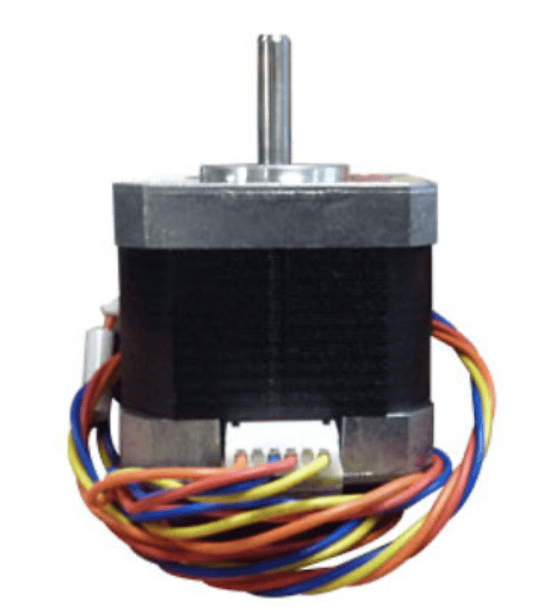

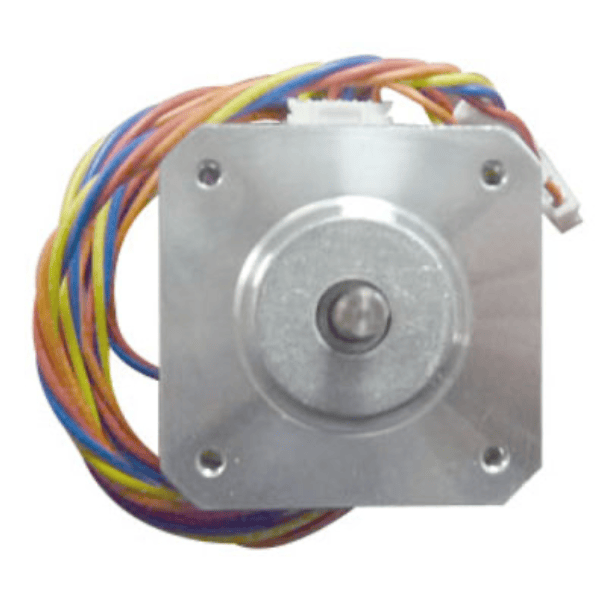

JV22 Pump Motor 2 - E102202
SKU: E102202 (acm)
What this part is
This motor drives the maintenance pump that provides the suction used during the printer's cleaning and ink-charging cycles. It is what lets a cleaning cycle draw ink through the caps and clear the nozzles; a weak or seized pump motor shows up as cleanings that no longer recover nozzles or a new head that will not prime.
This part is used on the Mimaki JV3 solvent sign-and-display series built around an on-demand piezo printhead.
Specifications
| SKU | E102202 (acm) |
| Mimaki Part No. | E102202 |
| Part Type | Pump Motor Assembly |
| Type / Brand | Mimaki (OEM) |
| Condition | New |
| Compatible Models | 9 Mimaki models (listed below) |
Compatible Mimaki models
JV22-130JV22-160JV3-130SJV3-130SLJV3-130SPJV3-160SJV3-160SPJV3-250SPJV3-75SP
Not sure this is the right part for your machine? Contact the Allprintheads team with your printer model and serial number and we'll confirm the correct SKU before you order.
