Description
About this printhead

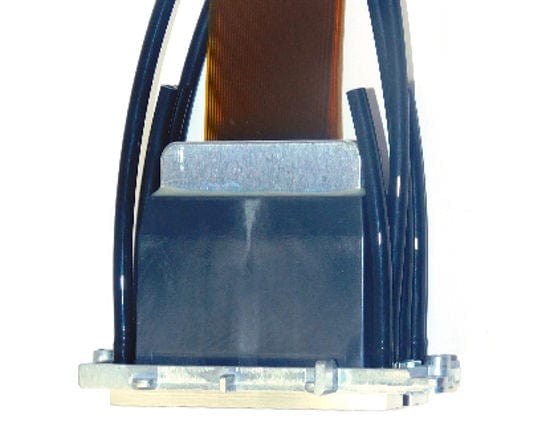

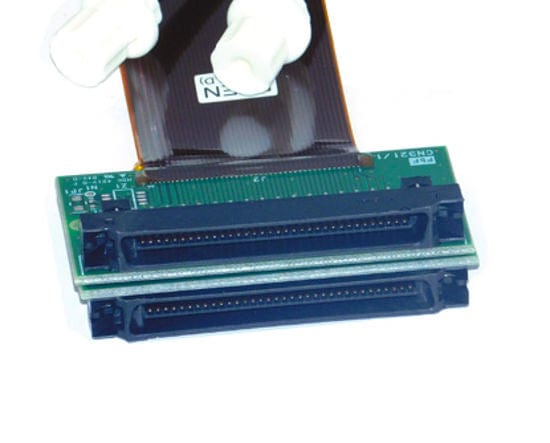

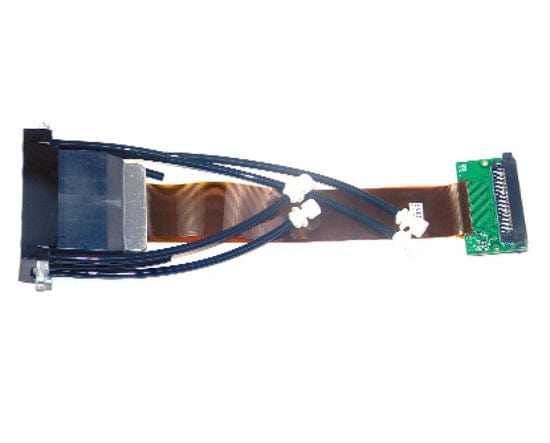

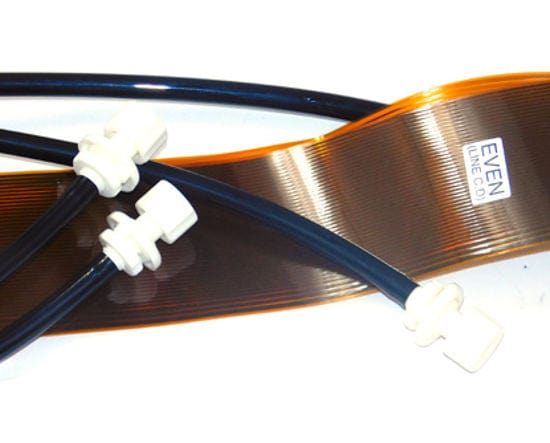

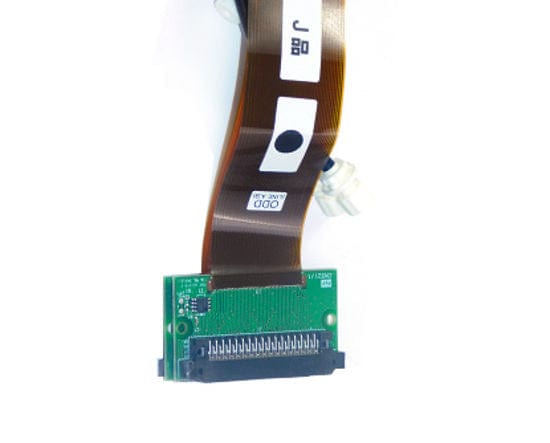

This GEN5 (MH5420/5440) printhead is suitable for Mimaki JV400-130SUV & JV400-160SUV printers. This is the original Mimaki part (number M014400) .
Specifications
| SKU | M014384 |
| Brand | mimaki |
| Condition | New |
| Dimensions | 89 x 25 x 69 mm (excluding cables) |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle density | up to 600 NPI |
| Native drop volume | 7 pl |
| Drop volume range | 7 - 35 pl |
| Drop velocity | 7 m/s |
All printheads are brand new, never used or refurbished. Not sure this is the right head for your machine? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
