Description

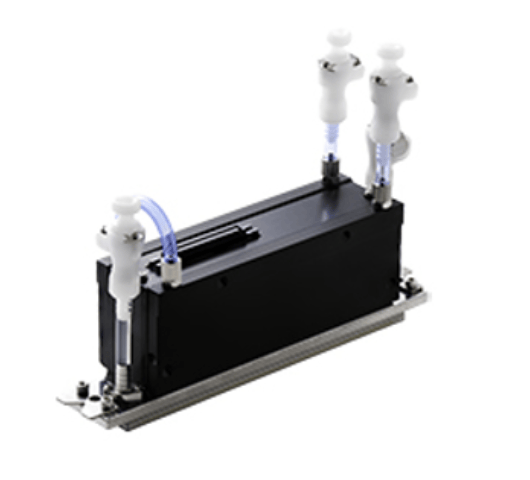

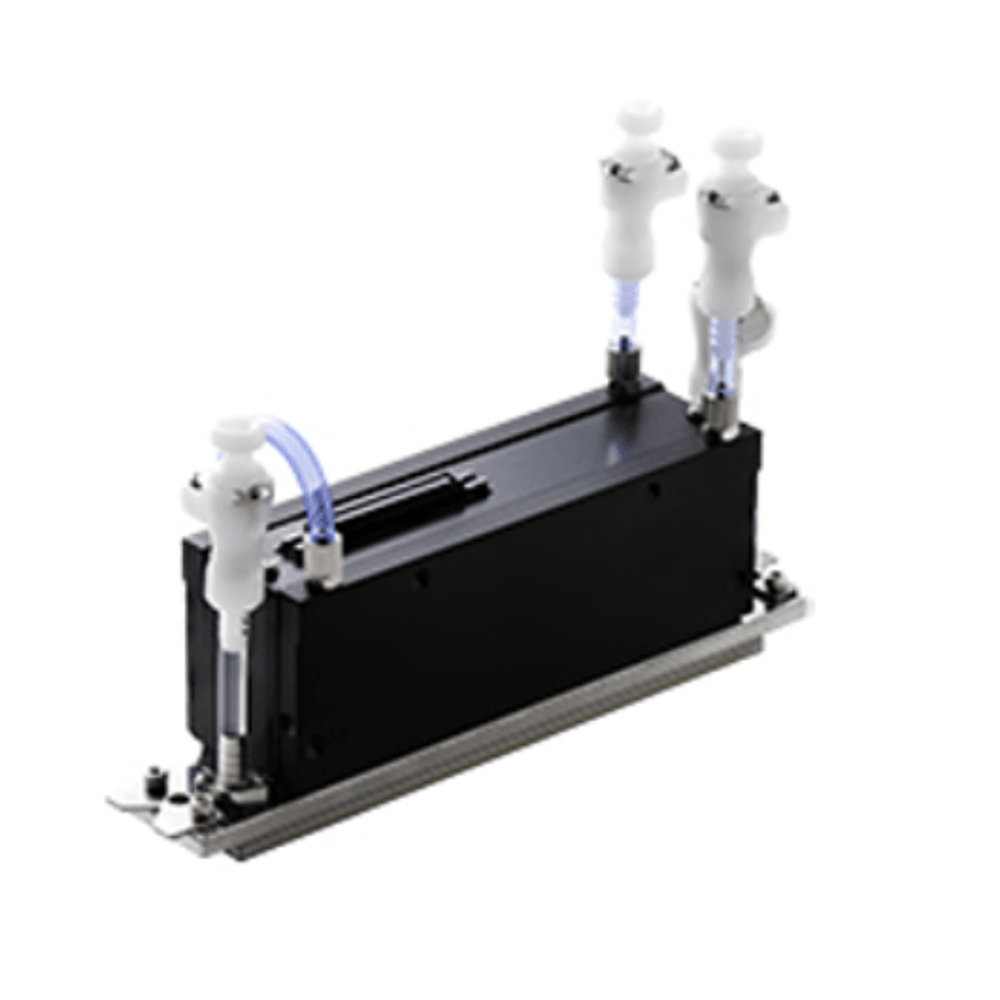

This original KJ4B-EX600-RC printhead is designed for high-speed printing with water-based ink. This series delivers excellent productivity — not only in single-pass applications such as transaction, document, and security printing using MICR ink, but also in multi-pass applications, including textile printing.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Specifications
- Ink Type: Water-based ink
- Maximum Drive Frequency (kHz): 40
- Resolution (dpi): 600dpi x 600dpi
- Print Speed (m/min): 101.6
- Drop Volume (pL): Min. 5, max. 14
- Nozzle Recirculation: Yes
- Width×Length×Height (mm): 200×41.6×68.2
- Number of Nozzles: 2,656 (2,560)
- Effective Print Width (mm): 108.33
- Recommended Ink Viscosity (mPa*s): 5.0~6.0
- Country of origin: Japan
