Description
About this product

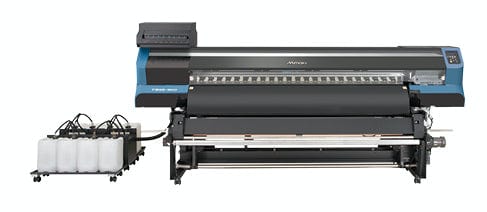

The Mimaki TS55-1800 is a 1.8 m (76.4") dye-sublimation transfer inkjet printer built for high-volume digital textile production. Running Mimaki's water-based Sb610 sublimation inks in 4-, 6-, 7- or 8-color configurations — including light colors and vivid fluorescent pink and yellow — it delivers production speeds up to 1,453 sqft/hr (135 m²/hr) for sports apparel, fashion, soft signage and interior fabrics.
Two factory options turn the TS55-1800 into a true around-the-clock production system: the mini jumbo roll unit feeds economical 2,500 m (8,202 ft) transfer-paper rolls to slash media changes and cost per square meter, and the 10 kg bulk ink supply unit cuts running costs and ink-change downtime compared with standard 2 L packs.
Key features
- Up to 1,453 sqft/hr (135 m²/hr) in high-speed mode, 538 sqft/hr (50 m²/hr) in practical quality mode (600×600 dpi, 2-pass) and 333 sqft/hr (31 m²/hr) in enhanced picture quality mode.
- Staggered printhead assembly printing at 480, 600 and 1,200 dpi for sharp detail at production speeds.
- Mimaki Advanced Pass System (MAPS) adds gradation at pass boundaries to eliminate banding and uneven color — usable even in high-speed mode.
- NCU / NRS nozzle safeguards — the Nozzle Check Unit detects and cleans clogged nozzles automatically, and the Nozzle Recovery System substitutes working nozzles so production continues without waiting for service.
- Sb610 dye-sublimation ink in 4, 6, 7 or 8 colors (Bl, M, Y, K, Lbl, Lm, Lk, Fy, Fp) with 2 L ink packs across 8 slots.
- Optional mini jumbo roll unit handles approx. 2,500 m rolls — up to 661 lb (300 kg) feeding and 220 lb (100 kg) winding — for long unattended runs.
- Optional 10 kg ink supply unit lowers ink cost per color and reduces changeover downtime.
Applications
Specifications
| SKU | TS55-1800 |
| Brand | Mimaki |
| Type | Dye-sublimation transfer inkjet printer |
| Condition | New |
| Printhead | Printhead assembly, staggered layout |
| Print resolution | 480 / 600 / 1,200 dpi |
| Print speed | High-speed: 1,453 sqft/hr (135 m²/hr) | Practical quality (600×600, 2-pass): 538 sqft/hr (50 m²/hr) | Enhanced picture quality: 333 sqft/hr (31 m²/hr) |
| Ink | Mimaki Sb610 dye-sublimation ink — Bl, M, Y, K, Lbl, Lm, Lk, Fy, Fp |
| Ink sets | 4-color (Bl M Y K) • 6-color (+ Lbl Lm) • 7-color (+ Lbl Lm Lk) • 8-color (+ Lbl Lm Fp Fy) |
| Ink supply | 2 L ink packs, 8 slots; optional 10 kg ink supply unit (10 kg per color; Lk, Fy, Fp remain 2 L packs) |
| Maximum print width | 76.4 in (1,940 mm); 74.8 in (1,900 mm) with mini jumbo roll unit |
| Maximum media width | 76.8 in (1,950 mm) |
| Roll media | Up to 99.2 lb (45 kg) standard; mini jumbo roll unit: feeding up to 661.4 lb (300 kg) / ø23.6 in (600 mm), winding up to 220.5 lb (100 kg) / ø11.0 in (280 mm) |
| Interface | Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-Speed |
| Power supply | Single-phase AC 100–120 V or AC 200–240 V |
| Power consumption | 1.44 kW or less (AC 100 V) / 1.92 kW or less (AC 200 V) |
| Operating environment | 68–86 °F (20–30 °C), 35–65% RH non-condensing |
| Dimensions (W × D × H) | 127.5 × 28.0 × 73.1 in (3,240 × 713 × 1,857 mm) |
| Weight | Main unit 445.3 lb (202 kg); mini jumbo roll unit 220.5 lb (100 kg); 10 kg ink supply unit 77.2 lb (35 kg); extended heater 33.1 lb (15 kg) |
| Certifications | VCCI Class A, FCC Class A, CE (EMC, Low Voltage, Machinery, RoHS), CB, Energy Star, RCM, EAC |
See it in action
Specifications per Mimaki; actual throughput varies with RIP, file size, resolution and ink coverage. Questions about configuration, inks or availability? Contact the Allprintheads team at +1 657-208-2768 and we'll help you spec the right setup before you order.
