Description

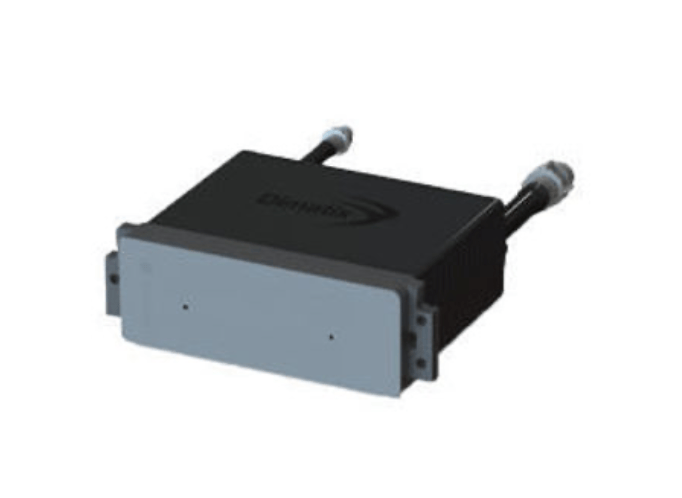

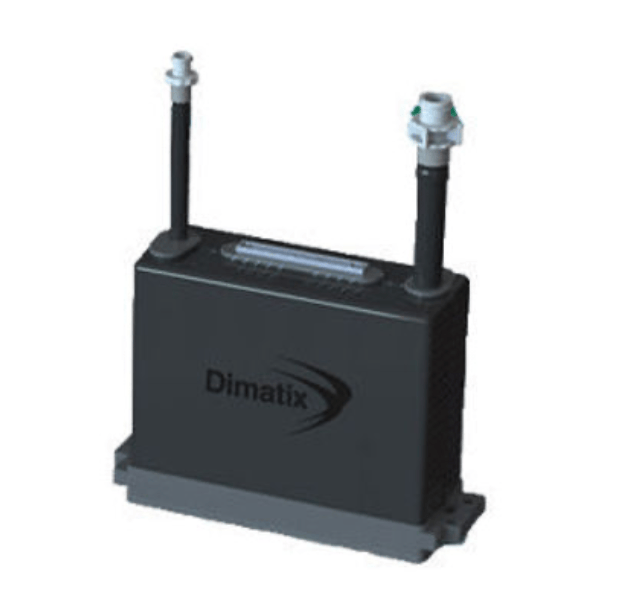

The StarFire™ SG1024/HFLis a compact, self-contained unit compatible with oil & solvent based ceramic ink formulations.
The SG1024/HFL is also known as SF1024/LCHF. We recommend to change the head cables when installing a new printhead.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Features
- Number of addressable Jets per module: 1024
- Print width: 64.96mm (2.55 in)
- Native resolution: 400 dpi
- Firing Frequency (kHz): 20/8
- Versadrop Max Productivity (ng-kHz): 1500
- Native Drop Size / Largest Drop Size (pL): 80/200
- Nozzle Plate Technology: Metal
- Compatible Fluids: Oil & solvent based ceramic inks
- Viscosity Range (cP): 8-20 (10-14 for highest productivity)
- Temperature control: yes
- Inkjet Operating Temperature Range (C/F): Up to 50°C / 122°F
- Integrated Temperature Sensor: Included
- OEM Accessible Non-volatile Memory : 64-byte rewritable
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
Compatible Printers:
-
SACMI DHD908
