Description
About this printhead

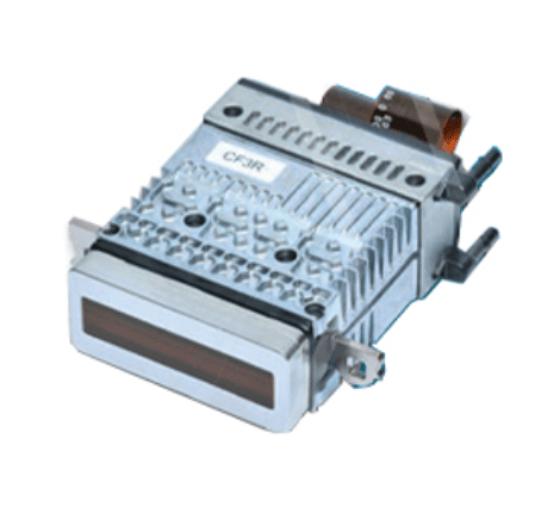

This Toshiba CF3R printhead has 300 npi/row with ink re-circulation through all channels. It is suitable for jetting ink with larger particle size and 2 colors per head.
We recommend to change the head cables when installing a new printhead.
Specifications
| SKU | PPHTOCF3R |
| Brand | Toshiba |
| Condition | New |
| Print Width | 53.91mm |
| Nozzle resolution | 300npi x 2 colors |
| Drop Volume | 20pL/5drops |
| Maximum drop volume | 3~4pL |
| Power Supply Voltage for Driving the Head | +7V~+15V, -7V~-15V |
| Power Supply Voltage for Driving Circuit | 5V, 24V |
All printheads are brand new, never used or refurbished. Not sure this is the right head for your machine? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
