Mimaki CJV200 Series (Print & Cut)


Price:
Sale price$ 260,000.00 MXN
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
By placing your order you agree to purchase from Global-e as the merchant of record, subject to Global-e’s Terms and Conditions and Privacy Policy, and share your information with Allprintheads.
When product is not in stock, usually the time to process is 5-7 days.

Description

Mimaki • Eco-Solvent Print & Cut

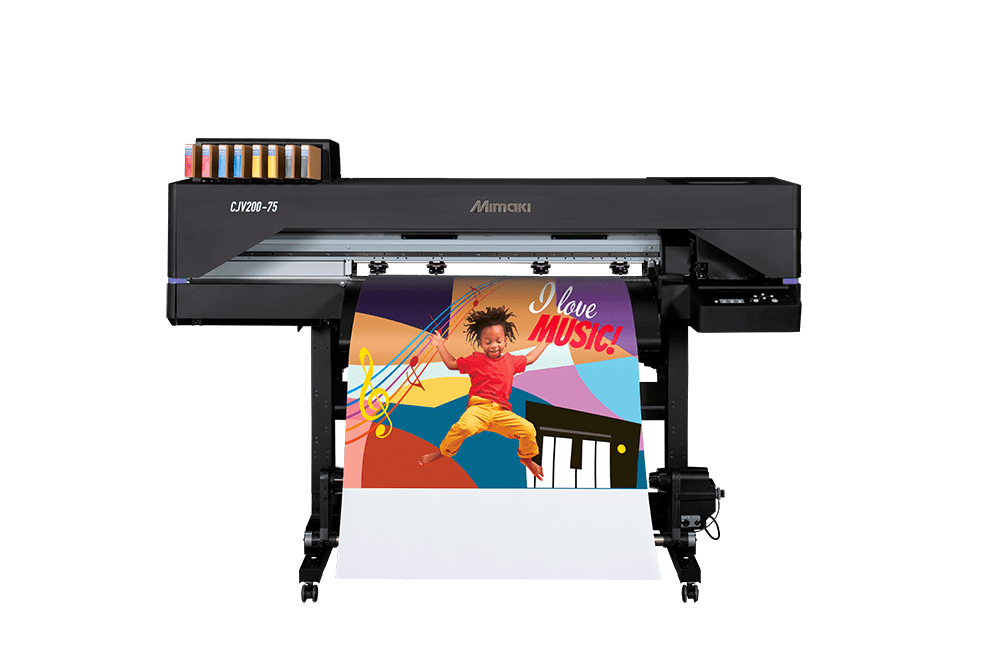

Mimaki CJV200 Series (Print & Cut)
SKU: CJV200-75

About this product

The Mimaki CJV200 Series offers exceptional print & cut value in a compact design. It delivers durable prints for indoor and outdoor applications, and the integrated contour cutter with user-friendly software makes it an ideal standalone solution for stickers, labels, decals and heat-transfer graphics. Three sizes cover every shop: the 30" CJV200-75 (31.5" max print width), 54" CJV200-130 (53.6") and 64" CJV200-160 (63.4").

At its heart is a single printhead from Mimaki's flagship 330 engine, printing up to 183 sqft/h (17 m²/h) in 4-color mode — the highest practical speed in its entry class — with low-odor, GBL-free SS22 eco-solvent ink in 440 ml cartridges (1L packs optional via the Mimaki Bulk Ink System). ID Cut support lets the machine read job data from a printed barcode and start contour cutting automatically.

Key features

  • Print and contour-cut in one machine — cutting up to 300 mm/s with 10–450 gf pressure and ±0.2 mm repeatability.
  • Print speed up to 183 sqft/h (17 m²/h) in 4-color mode — highest practical speed at entry level per Mimaki.
  • Flagship 330 printhead — single on-demand piezo head, X 600/1,200 dpi × Y 600/900/1,200 dpi.
  • Low-odor SS22 eco-solvent ink — 8 colors (C, M, Y, K, Lc, Lm, Lk, Orange), roughly 40% less odor and no GBL; durable indoors and out.
  • ID Cut support — a printed ID barcode carries the cut data, so jobs cut automatically with less media loss.
  • Three widths — 30" / 54" / 64" — including the compact CJV200-75 for space-limited shops.
  • 440 ml cartridges or optional 1L packs (Mimaki Bulk Ink System) for lower running costs.
  • Simple design, easy upkeep — built so anyone can operate, check and maintain it.

Applications

Print & cut
Labels & decalsStickersCutting-sheet graphicsHeat-transfer T-shirt graphicsVehicle markings
Signage & display
BannersPostersWindow graphicsPOP & POS displaysWallpaper

Specifications

SKU CJV200-75
Brand Mimaki
Type Eco-solvent print & cut inkjet printer — CJV200-75 (30") / CJV200-130 (54") / CJV200-160 (64")
Condition New
Printhead On-demand piezo printhead × 1 (330-engine head)
Print resolution X: 600 / 1,200 dpi | Y: 600 / 900 / 1,200 dpi
Print speed Up to 183 sqft/h (17 m²/h) in 4-color mode
Head gap Manual, 2 levels: 1.5 / 2.0 mm
Ink Eco-solvent SS22 — 8 colors: C, M, Y, K, Lc, Lm, Lk, Orange (SS21 also supported)
Ink capacity 440 ml cartridges; 1L packs (SS22) / 2L packs (SS21) with optional Mimaki Bulk Ink System
Maximum print width CJV200-75: 31.5 in (800 mm) | CJV200-130: 53.6 in (1,361 mm) | CJV200-160: 63.4 in (1,610 mm)
Maximum media width CJV200-75: 31.9 in (810 mm) | CJV200-130: 53.9 in (1,371 mm) | CJV200-160: 63.8 in (1,620 mm)
Maximum cutting speed 300 mm/s (acceleration up to 0.5 G)
Cutting pressure 10–450 gf, cutter response 10 times/sec
Cutting repeatability ±0.2 mm (excluding film expansion/contraction)
Media thickness Up to 0.04 in (1.0 mm)
Roll media Outside diameter up to 7.1 in (180 mm), 2 in / 3 in core
Roll weight Up to 55.1 lb (25 kg); up to 99.2 lb (45 kg) with optional media support
Interface Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-Speed
Power supply Single-phase AC 100–120 V / 200–240 V ±10%, 50/60 Hz (× 2)
Power consumption 1,320 W max × 2; 4.5 W sleep mode
Operating environment 68–86 °F (20–30 °C), 35–65% RH non-condensing
Dimensions (W × D × H) CJV200-75: 77 × 29.5 × 54 in (1,960 × 748 × 1,370 mm) | CJV200-130: 99 × 29.5 × 54 in (2,520 × 748 × 1,370 mm) | CJV200-160: 109 × 29.5 × 54 in (2,770 × 748 × 1,370 mm)
Weight CJV200-75: 231.4 lb (105 kg) | CJV200-130: 286.6 lb (130 kg) | CJV200-160: 308.6 lb (140 kg)
Certifications VCCI Class A, FCC Class A, ETL (IEC 62368-1), CE, CB, REACH, Energy Star, RCM, EAC, KC, UKCA

See it in action

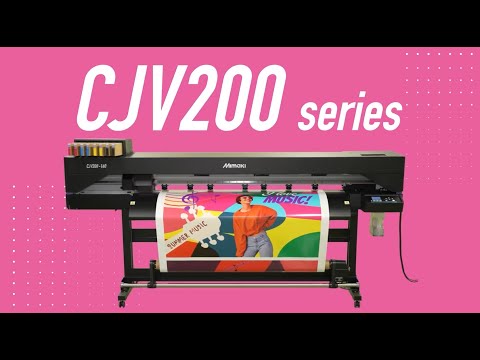

Official Mimaki product video — CJV200 Print & Cut Inkjet Printer
Cleaning the capping station
Carriage underside cleaning
Nozzle washing

Specifications per Mimaki; actual throughput varies with RIP, file size, resolution and ink coverage. Questions about configuration, inks or availability? Contact the Allprintheads team at +1 657-208-2768 and we'll help you spec the right setup before you order.
