Description
Direct and Transfer Printing in One Machine

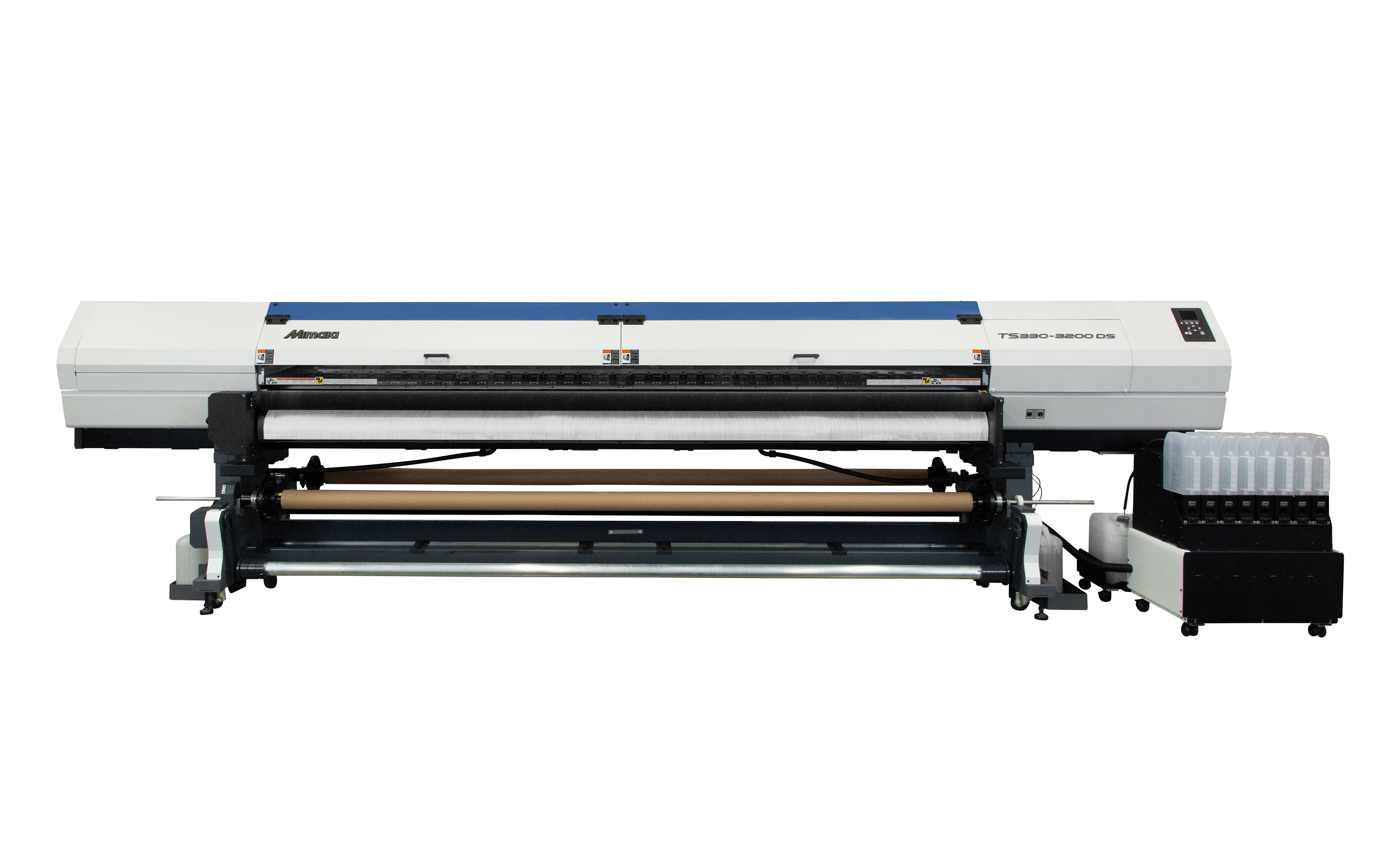

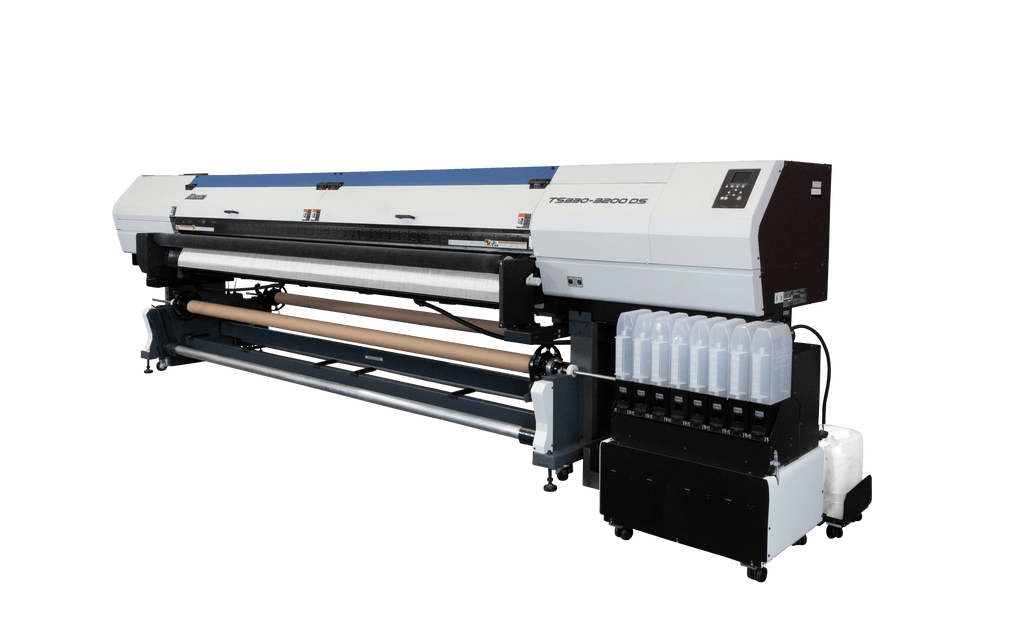

The Mimaki TS330-3200DS superwide printer offers the best of both worlds. It functions as a sublimation unit for printing on transfer paper and as a direct-to-textile printer for polyester fabrics, making it an all-in-one solution for various digital textile applications. These include backlit fabric displays, SEG frame printing, flags, theatrical backdrops, POP displays, interior décor, and more.
- Unlock double the growth potential with one superwide digital textile unit that supports both dye sublimation and direct-to-fabric printing.
- Features a hybrid mechanism that manages direct fabric printing and transfer onto sublimation paper before finishing.
- Achieve production speeds of up to 968 sqft/hr, whether transferring images to media or printing directly on fabrics.
- Versatile enough to create a wide range of applications, from backlit displays to interior décor.
- Equipped with a ten-liter bulk ink system for continuous operation and cost efficiency.
Our Core Technologies
Uninterrupted Ink Supply System (UISS)
Variable Dot Technology
Mimaki Bulk Ink System (MBIS)
Mimaki Intelligent Heaters (MIH)
Mimaki Advanced Pass System (MAPS)
Applications
Specifications
| Printhead |
Dual On-demand piezo printheads in a staggered configuration |
| Print resolution |
Y:300,600 dpi | X:600,1200 dpi |
| Print speed (4 color mode) |
up to 969 sqft/hr (90 sqm/hr) |
| Maximum Print Area |
127.6 in (3,240 mm) |
| Maximum media width |
127.9 in (3,250 mm) |
| Maximum Media Thickness |
up to 0.04 in (1 mm) |
| Maximum Media Weight |
Roll weight: 220 lbs. (100 kg) |
| Ink Type |
Sublimation Ink: Sb411 (Bl, M, Y, K) and Sb420 (Bl, M, Y, K) |
| Interface |
Ethernet 1000 BASE-T / (USB2.0 Hi-speed) |
| Power Supply |
Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz |
| Power Consumption |
Max AC200-240V / 2400W |
| Operational Environment |
Temperature: 20–30 °C (68–86 °F) |
| Dimensions (W × D × H) |
5,410 x 1,075 x 1,440 cm (213 x 42.32 x 56.69 in) |
| Weight |
529.1 lbs (240 kg) |
| Certifications |
VCCI Class A, FCC Class A, IEC 62368-1 ETL compliance, CE marking (EMC Directive, Low Voltage Directive, Machinery Directive, RoHS Directive), CB certified, REACH, EnergyStar, RCM marking, KC certified, UKCA marking |
