Description

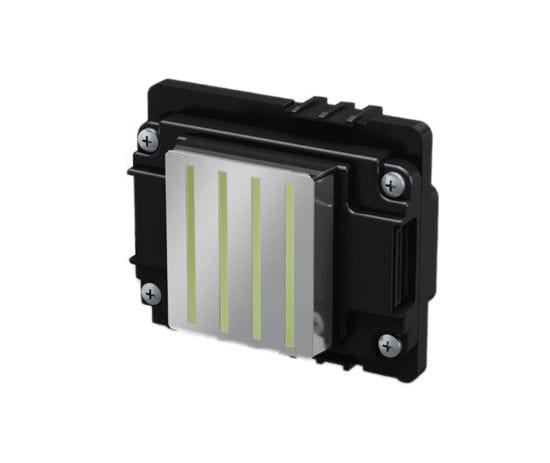

The Mutoh Print Head Assy (I3200-E1) - DH-41206 is suitable for Mutoh XPJ-1682SR-P printers. This printhead is a standard Epson I3200-E1.
This cost-effective 1.33-inch-wide MEMS head series offers high productivity and high image quality, featuring a 600dpi high-density resolution. This printhead is suitable for eco-solvent inks. We recommend changing the head cables when installing a new printhead.
Specifications :
- Ink Type : Eco-Solvent
- Type : PrecisionCore MicroTFP printhead

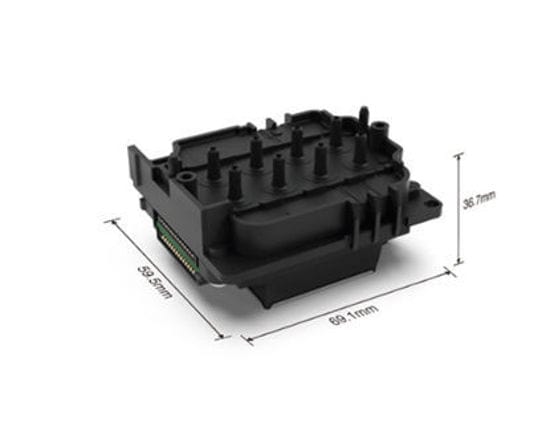

- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight : 82g
- Number of nozzle : 3200

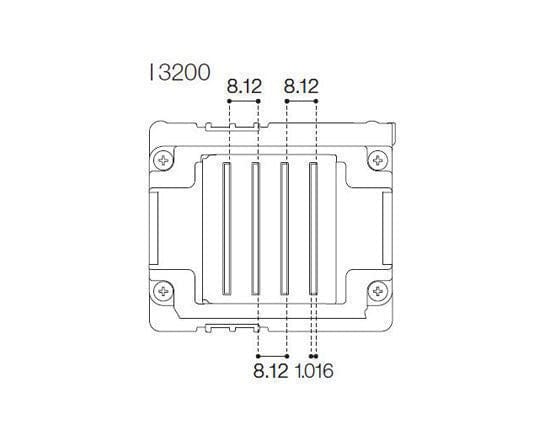

- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle rows: 8 rows
- Nozzle Resolution : 300 noi/row 600 npi/2 rows
- Max. number of colour inks : 4 colours
- Effective print width : 33.8 mm (1.33 inches)
- Droplet ejection performance :
- Binary : 6 plat 43.2 kHz
- 3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
- 4 levels grey scale 3.8,5.5, 8.7 pl at 21.6 kHz
- Viscosity range : 3-4 mPass
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
Printer compatibility
- Mutoh XPJ-1682SR-P
