Ricoh GEN4L 15PL Printhead - MH2620 (Hose barb)

Save 10%

Price:
Sale price$ 65,000.00 MXN Regular price$ 72,500.00 MXN
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
By placing your order you agree to purchase from Global-e as the merchant of record, subject to Global-e’s Terms and Conditions and Privacy Policy, and share your information with Allprintheads.
When product is not in stock, usually the time to process is 5-7 days.

Description

Ricoh • Printhead

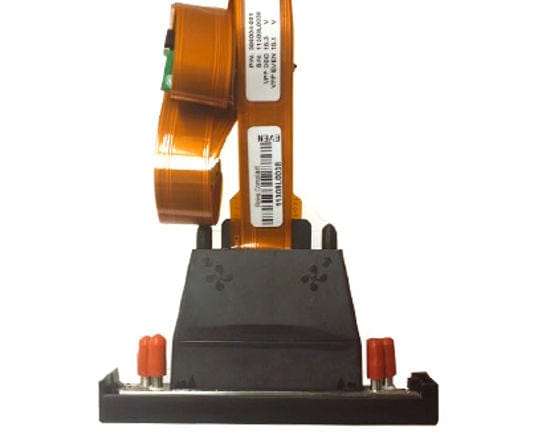

Ricoh GEN4L 15PL Printhead - MH2620 (Hose barb)
SKU: MH2620

About this printhead

The new Ricoh GEN4L printhead is suitable for a range of oil, water, solvent, and UV printers, including the original D.Gen Teleios Grande, D.Gen Teleios (TJ-2600), and Teleios (TJ-3333). This printhead has an integrated heater and thermistor. This is Ricoh's original printhead, and it is covered by a manufacturer's warranty. This printhead is not compatible with the newer D.Gen Teleios Grande G5 or Teleios Grande/H6. These printers use Ricoh GEN5 Printhead Water (PPHRI18045). Technical Specifications:

- Size: 13,2 x 120 x 75,5 mm (excluding cables) - Head Materials: SST, Ni, and Epoxy Adhesive (direct contact with ink) - Nozzle Plate Surface: Non-wet coating - Number of Nozzles: 2 x 192 nozzles - Nozzle Spacing: 0,1693 mm - Piezo Type: D33 Stacked PZT - Temperature Control: Integrated Heater and Thermistor - Operator Temperature range: Up to 80° C - Native Drop Volume: 15 pl - Drop Volume Range: 15-45 pl - Jetting Frequency: Up to 30 kHz - Life: 100 billion actuations per nozzle.

Specifications

SKU MH2620
Brand Ricoh
Condition New

Compatible printers

Compatible printers
PA32Teleios Grande (3333TX)Teleios (TJ-2600)Teleios Grande (TJ-3333)Teleios XL (XL2600)Artrix GTII

All printheads are brand new, never used or refurbished. Not sure this is the right head for your machine? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
