Description

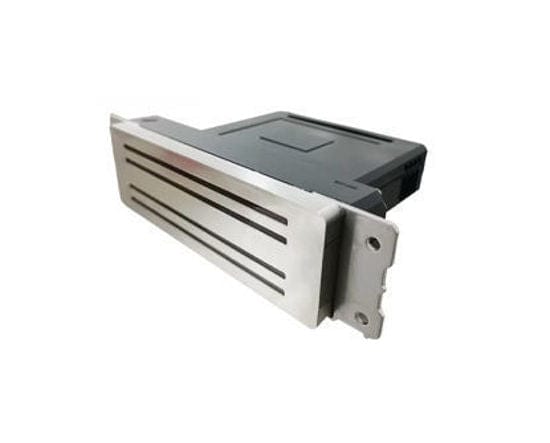

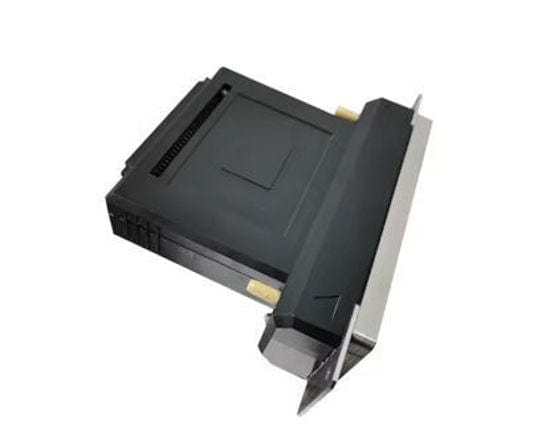

This printhead is suitable for ceramic, corrugated cardboard, textiles, and inkjet printers.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing, or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures, or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic.
Product Specifications
- Drop Volume Range: 25 to 225 pL
- Maximum Productivity at 10 Drops: 2.477 µL/sec
- Discharge at 25M/min: 85 g/m²
- Possible print directions: Vertical and Horizontal
- Number of Grey Levels: up to 10
- Jetting Frequency: up to 37 kHz
- Native Nozzle Resolution: 360 npi
- Active Nozzles: 1536 at 4 rows
- Ink Inlets / Ink Outlets : 1/1
- Ink Compatibility: Oil and UV inks
- Print width: 108.3 mm
- Weight: > 0.7 kg
- Dimensions: 180,0 x 47.6 x 123.3 mm
- Driving Interface: Parallel interface
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
