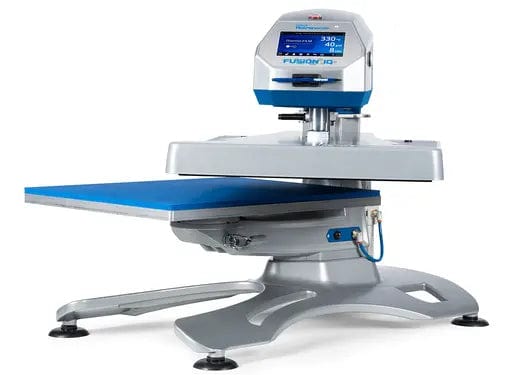

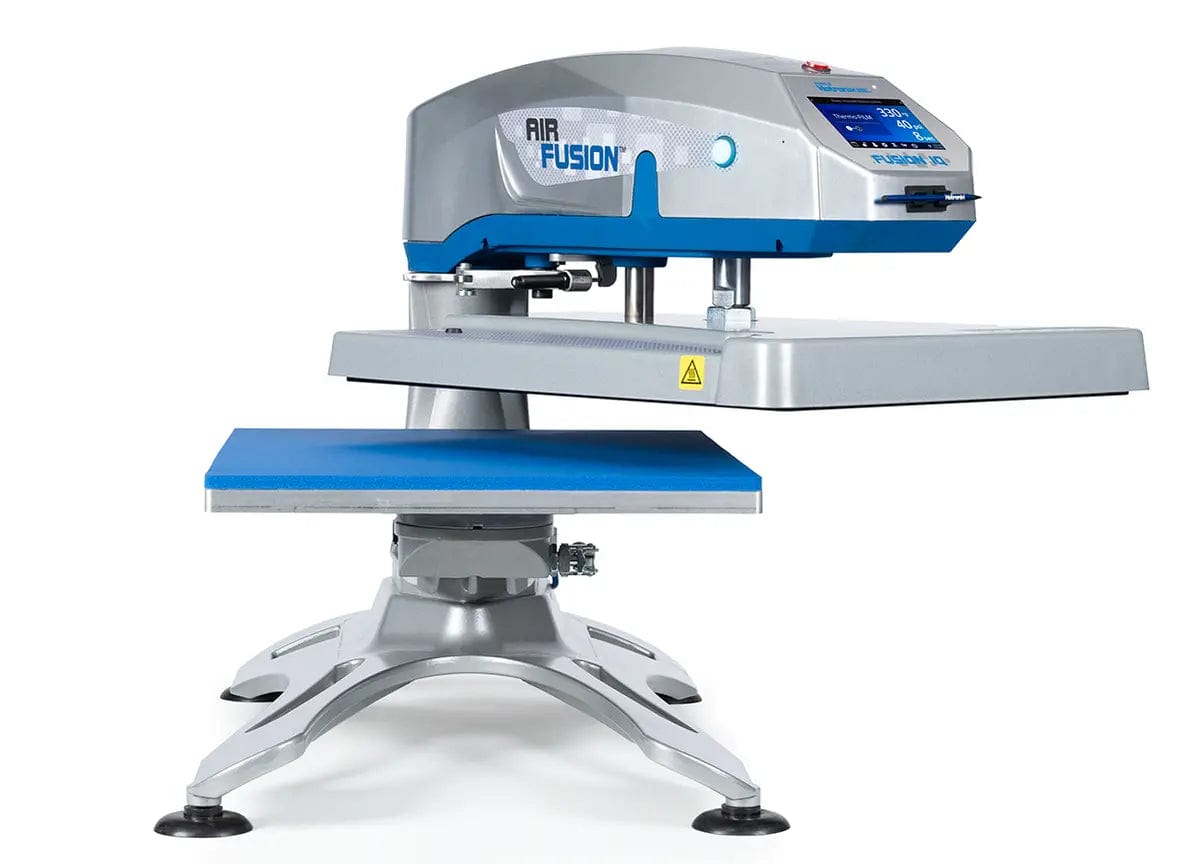

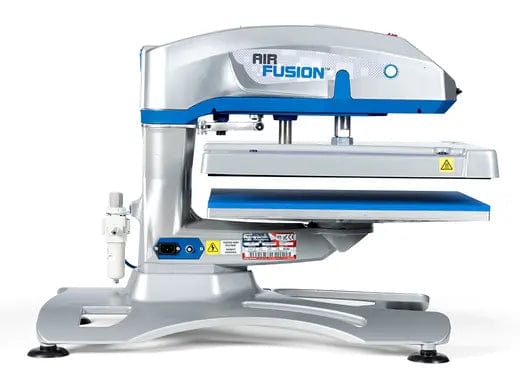

Experience effortless heat printing with the Air Fusion IQ® Heat Press. This cutting-edge digital heat transfer machine operates with air power, providing a heat-free workspace and a user-friendly touch-screen interface. Equipped with stored application instructions and self-diagnostic features, the Air Fusion® IQ simplifies the printing process. Its additional air compressor and two-button design reduce operator fatigue, making it ideal for fulfilling high-volume custom apparel orders.
Elevate your printing game with IQ® Heat Presses. Registering your Air Fusion IQ® Heat Press with Hotronix® allows you access to the Online Portal. Here, you can efficiently manage users, generate usage reports, and troubleshoot any technical issues that may arise.
BONUS: You'll receive a free sample pack, ready-to-apply heat transfers, and your heat press order!
- Online access to reporting, including total impressions, active/idle time, and average cycle time.
- Self-diagnostics help with troubleshooting and maintenance.
- 16" x 20" upper platen.
- Stores hundreds of application settings.
- Adjustable stand creates an ergonomic workspace for multiple users.
- Threadability™ increases production – load garments once and easily rotate from front to back.
- Exclusive Touch Screen Controller with new Multi-swipe gestures.
- Data interface port for software upgrades.
- Live digital time, temperature, and pressure readout.
- Energy-saving 4 hr sleep mode.
- Production cycle counter.
- UL/ULC/CE/RoHS compliant.
- Electrical Options:
120 v; 15 amps; 1800 w
240 v; 7.5 amps; 1800 w
- Must have designated circuit breaker
- 3/4 inch heat platen with fast recovering heater technology.
- Die pressure cast 356 aluminum corrosion-free framework.
- Multiple time and pressure settings make application a breeze.
- Program and store frequently used applications.
- Innovative EZ-On platen design eliminates the need for pillows or pads.
- 120 PSI for heavy-pressure application.
- User-safe two-hand operation.
- Digital read-outs.
- Optional smaller interchangeable platens.
- Proudly made in the USA.
- Premier warranty.
- Actual Weight: 152 lbs
- Shipping Weight: 245 lbs
- Dimensions: 40" x 32" x 57"
- Shipping Dimensions: 40" x 48" x 58"
Warranty
- Lifetime Warranty on Heating Element
- 5 yr on Framework
- 2 yr on Circuit board
- 1 yr parts/labor
*Requires air compressor (not included) with minimum:
1/2 horsepower and 2.5-gallon hold tank. Uses 2.3 CFM.
