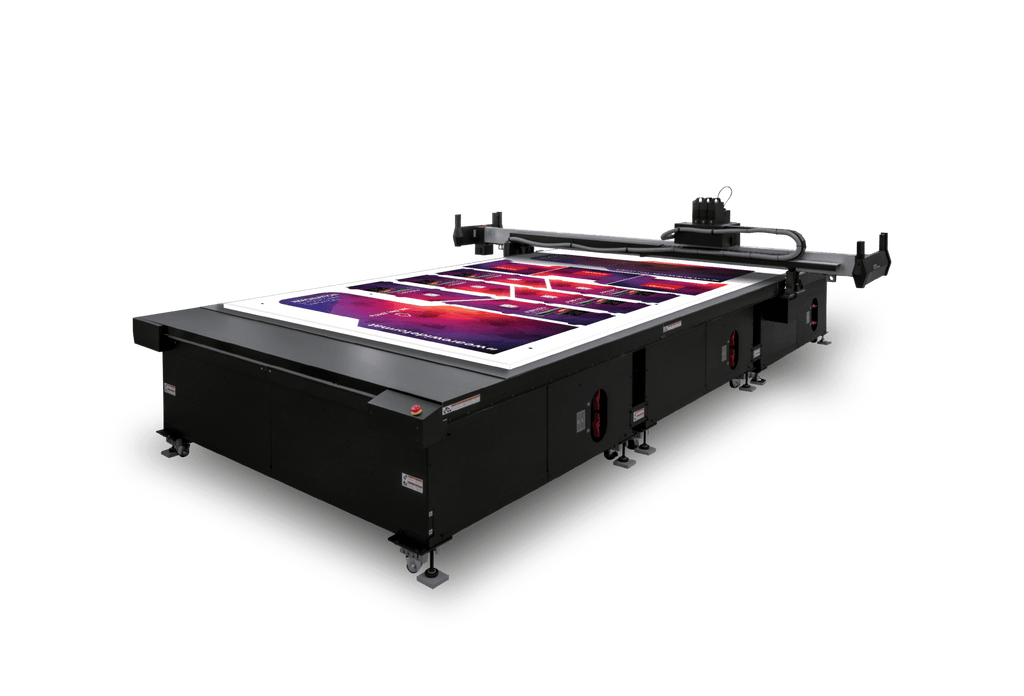

Mimaki's fastest, highest-pressure flatbed cutter, with routing support. The CFX Series is a production flatbed cutting plotter that moves at up to 1,000 mm/s with 0.7 G acceleration and applies up to 30 kg (66 lb) of tool pressure. That lets it cut and crease thick corrugated, foam board and rigid sign materials up to 54 mm (2.1 in) thick with clean, accurate results.
A multi-head carries four tools at once, covering pen/swivel, tangential, high-pressure tangential, V-cut, creasing, reciprocating and routing. Surface tracking keeps V-cuts accurate, and camera-guided backside mode lets you cut and crease from the reverse of the sheet. The tables are field-expandable: start with the CFX-2513 and add one table (CFX-2531) or two (CFX-2550) as your work grows, all running on a FineCut9 workflow.
- 1,000 mm/s movement speed - 0.7 G acceleration for high throughput
- Four simultaneous tool stations - cut, crease, V-cut and route in one job
- 5-30 kg (11-66 lb) pressure - handles thick and dense materials
- Up to 54 mm (2.1 in) material thickness - depending on tool
- Surface tracking - consistent V-cut depth across the sheet
- Camera-guided backside cutting - accurate cutting and creasing from the reverse side
- Field-expandable tables - grow from 2513 to 2531 or 2550 after installation; toggle loading on longer tables
- Continuous Mark Detect and Half Cut; FineCut/Coat9 included; Ethernet and RS-232C
Choose your size
| Model | CFX-2513 | CFX-2531 | CFX-2550 |
|---|---|---|---|
| SKU | CFX-2513 | CFX-2531 | CFX-2550 |
| Effective Cutting Area (X x Y) | 51.2 in x 100.0 in (1,300 x 2,540 mm) |
125.6 in x 100.0 in (3,190 x 2,540 mm) |
200.0 in x 100.0 in (5,080 x 2,540 mm) |
| Max. Settable Material (X x Y) | 74.4 in x 101.2 in (1,890 x 2,570 mm) |
148.8 in x 101.2 in (3,780 x 2,570 mm) |
223.2 in x 101.2 in (5,670 x 2,570 mm) |
| Best For | Standard 4 ft x 8 ft boards | Two 4x8 boards, front and rear, for alternating (toggle) production | Banners, packaging and building materials up to 5 m long |
| Dimensions (W x D x H) | 159.4 in x 84.6 in x 49.2 in (4,050 x 2,150 x 1,250 mm) |
159.4 in x 159.4 in x 49.2 in (4,050 x 4,050 x 1,250 mm) |
159.4 in x 234.3 in x 49.2 in (4,050 x 5,950 x 1,250 mm) |
| Main Unit Weight | 838 lb (380 kg) | 1,279 lb (580 kg) | 1,720 lb (780 kg) |
Applications
Specifications (all models)
| Brand | Mimaki |
| Type | Flatbed Cutting Plotter with routing support |
| Condition | New |
| Drive | X/Y axis: AC servo; Z/θ axis: DC servo |
| Maximum Movement Speed | 3.3 ft/s (1,000 mm/s); actual speed depends on material and tool |
| Maximum Acceleration | 0.7 G |
| Tool Pressure | 11-66 lb (5-30 kg) |
| Tool Stations | 4, simultaneous carry (multi-head) |
| Tool Types | Pen/swivel, tangential, high-pressure tangential, V-cut, creasing, reciprocating and routing |
| Max. Material Thickness (by tool) | E12 / E35 / E60: 2.13 in (54 mm) | V45 / VAS: 0.79 in (20 mm) | FBT: 0.39 in (10 mm) | C16 / C26: 2.13 in (54 mm) | C60: 0.79 in (20 mm) |
| Max. Material Weight | 10.2 lb/ft² (50 kg/m²) or less, non-concentrated load |
| Static Accuracy* | Repeatability ±0.03 mm; distance accuracy ±0.1 mm or ±0.1% of travel, whichever is greater; squareness ±0.5 mm / 1,000 mm; origin repeatability ±0.15 mm |
| Special Functions | Surface tracking for V-cut; camera-guided backside cutting; Continuous Mark Detect; Half Cut; toggle (alternating) table operation |
| Command | MGL-3C (HPGL standard) |
| Receiving Buffer | 22 MB (16 MB while sorting) |
| Interface | RS-232C / Ethernet |
| Software | FineCut/Coat9 (bundled) |
| Power Supply | CFX unit: single-phase AC200-240 V, 50/60 Hz, 12 A or less | Vacuum unit OPT-C0249: three-phase AC200-240 V, 50/60 Hz, 30 A or less (per unit) |
| Power Consumption | CFX unit: 2,880 W or less (approx. 3,000 W) |
| Operational Environment | 41-86 °F (5-35 °C), 35-75% RH non-condensing; accuracy guaranteed at 68-77 °F (20-25 °C), 35-65% RH; temperature gradient ±50 °F/h (10 °C/h) or less |
| Certifications | VCCI Class A, FCC Class A, CE Marking, CB Report (EN 62368), UL 62368-1, Machinery Directive, RoHS, REACH |
| Warranty | 1 year |
*Accuracy measured in pen plotting with little or no load, within the guaranteed temperature range.
