About this product

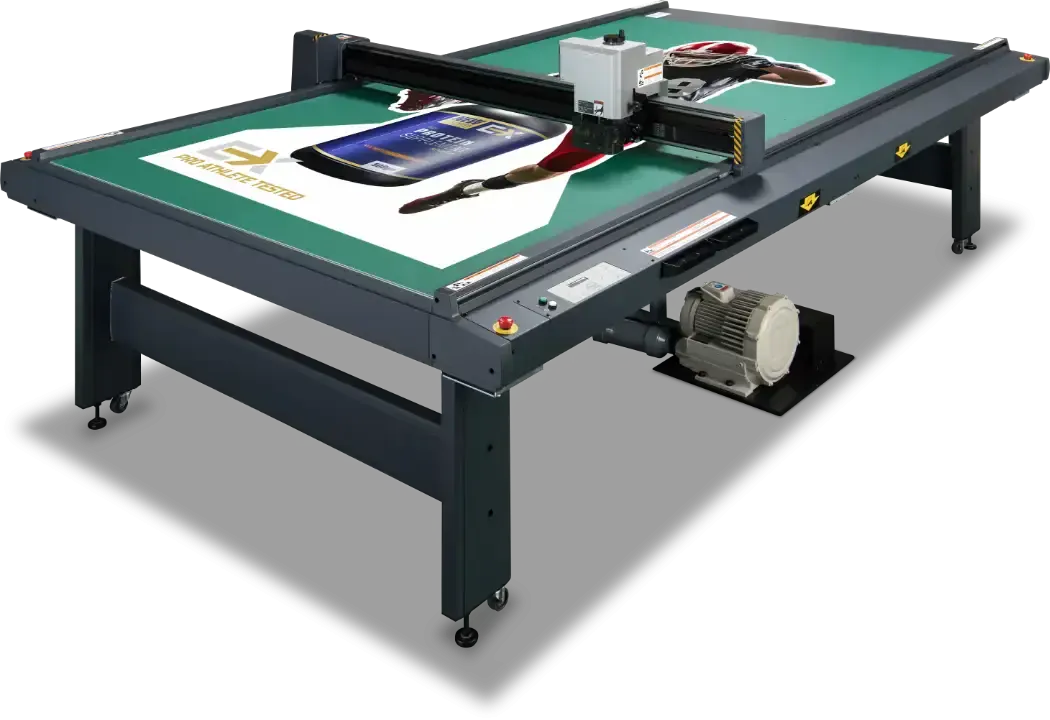

Full 4 ft x 8 ft cutting, straight off the flatbed printer. The CF22-1225RC-S builds on Mimaki's proven CF2 platform with a 1,220 mm x 2,500 mm (48 in x 98.4 in) effective cutting area, so print providers can move standard rigid boards directly from a flatbed printer to finishing without trimming or re-handling. It accepts oversized media up to 102 in wide and up to 20 mm thick.
The RC head's A, B and C stations run eccentric, reciprocating and tangential cutters plus creasing rollers, with up to 5,000 g of pressure for corrugated, PVC, rubber and reflective sheet. ID Cut reads printed data and sets the cut path automatically, cutting setup time and errors, while a four-zone blower vacuum holds the full sheet in place.

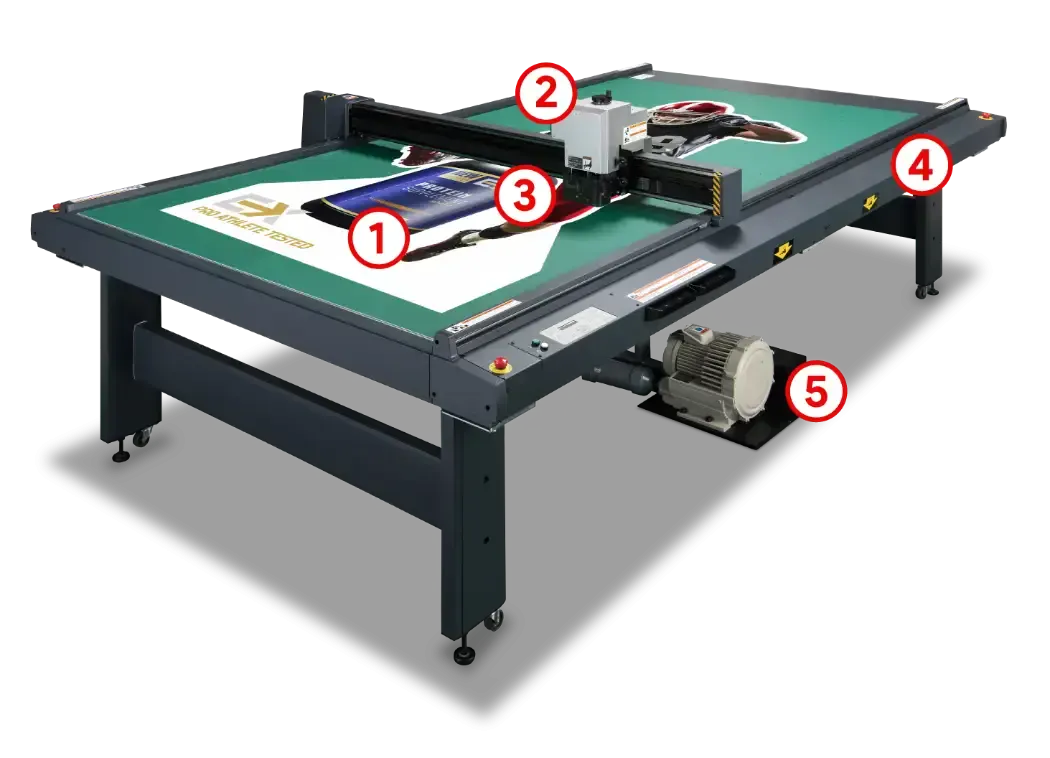

- 4 ft x 8 ft cutting area - handles standard board sizes from your flatbed printer
- Cuts up to 20 mm thick - corrugated board, PVC, rubber and reflective sheets
- ID Cut automation - reads printed data and aligns cut paths automatically
- Three-station RC head - eccentric, reciprocating, tangential and creasing tools
- Four-zone vacuum bed - powerful blower suction with divided control
- X/Y/Z/θ DC servo drive; ±0.1 mm accuracy; CuttingLink and FineCut9 support

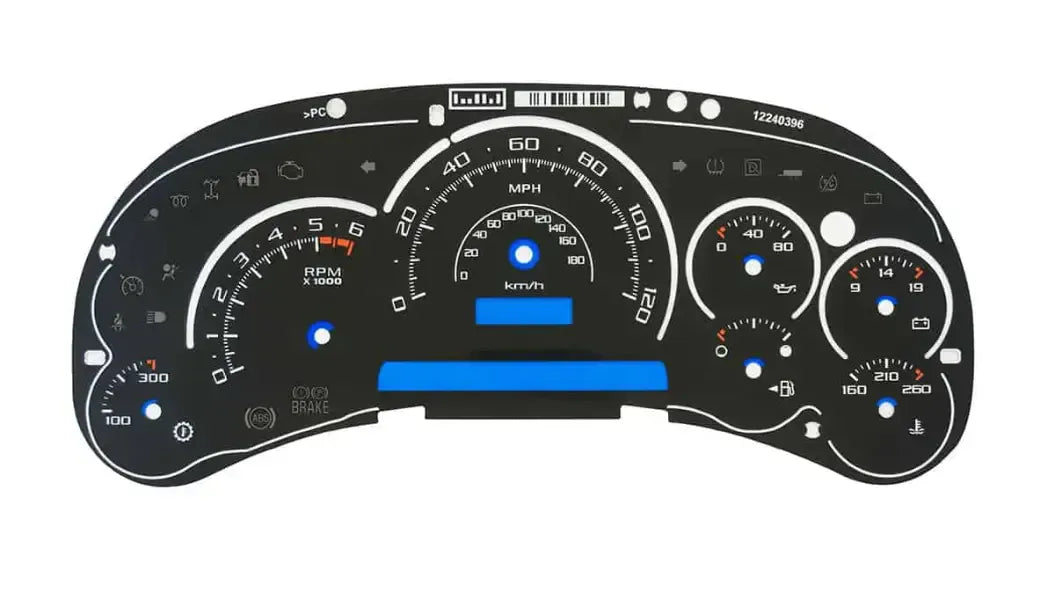

Applications
Specifications
| SKU | CF22-1225RC-S |
| Brand | Mimaki |
| Type | Flatbed Cutting Plotter |
| Condition | New |
| Effective Cutting Area | 48.0 in x 98.4 in (1,220 mm x 2,500 mm) |
| Maximum Media Width | 102.36 in (2,600 mm) |
| Maximum Media Thickness | 0.79 in (20 mm) |
| Tool Stations | 3 (RC head) |
| Supported Tools | Pen, eccentric cutter, tangential cutter, reciprocating cutter, creasing roller |
| Swivel Cutting Pressure | 20 g - 400 g |
| Tangential Cutting | 500 g - 5,000 g; up to 10 mm thick; multi-pass |
| Reciprocating Cutting | 1,000-7,000 rpm (RC head); 4-10 mm stroke; 500-1,500 g; up to 20 mm thick |
| Creasing Roller Pressure | 1,000 g - 5,000 g |
| Vacuum | Vacuum bed, 4 zones |
| Media Registration | Optical mark sensor; ID Cut |
| Repeat Accuracy | ±0.1 mm (±0.004 in) |
| Drive | X/Y/Z/θ DC servo motors |
| Buffer Memory | 27 MB |
| Interface | USB 2.0 / Ethernet / RS-232C |
| Software | FineCut9; CuttingLink |
| Power Supply | Single-phase 100-240 VAC; 300 W max |
| Operational Environment | 68-86 °F (20-30 °C); best accuracy 68-77 °F (20-25 °C); humidity 35-65% (non-condensing) |
| Dimensions (W × D × H) | 124.4 in x 76.0 in x 47.2 in (3,160 mm x 1,930 mm x 1,200 mm) |
| Weight | 507 lbs (230 kg) |
| Included Items | Eccentric cutter, reciprocating cutter 07, tangential cutter 2N, creasing roller CN, creasing plate YN |
| Certifications | VCCI Class A, FCC Class A, CE Marking, CB (EN 60950), UL 60950-1, RoHS, REACH |
| Warranty | 1 year |
