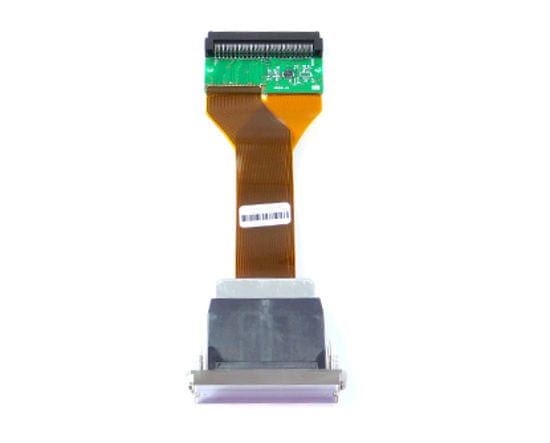

Ricoh GEN5 Printhead (Cable: 248mm) - N221414J

Precio de venta$2,450.00 USD
When product is not in stock, usually the time to process is 5-7 days.

Retiro disponible en Main Office

Normalmente está listo en 2 horas


This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to four colors and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh's original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is available in two different cable lengths (connector included): 248mm and 500mm.

Product Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy, and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 NPI
  • Piezo type: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHz
  • Ink compatibility: UV Inks
  • Life: 100 billion actuations per nozzle

Compatible Printers:

  • Jeti Mira MG2716 S/HS
  • Jeti Mira MG2732 S/HS
  • Jeti Tauro H2500
  • Jeti Titan HS
  • Jeti Titan S
  • NovaJet UV M6
  • Q5-1000
  • Q5-1000h
  • Q5-250
  • Q5-250h
  • Q5-500
  • Q5-500h
  • 1212 UV
  • FR3210
  • FRT3116
  • M10
  • M6
  • M8
  • HT1600UV HR4
  • HT1610UV FR4
  • HT2500UV HR8
  • HT2512UV-D FR8
  • HT3116UV FR8
  • HT3200UV HG12
  • HT3200UV HR8
  • UJV500-160
