Descripción

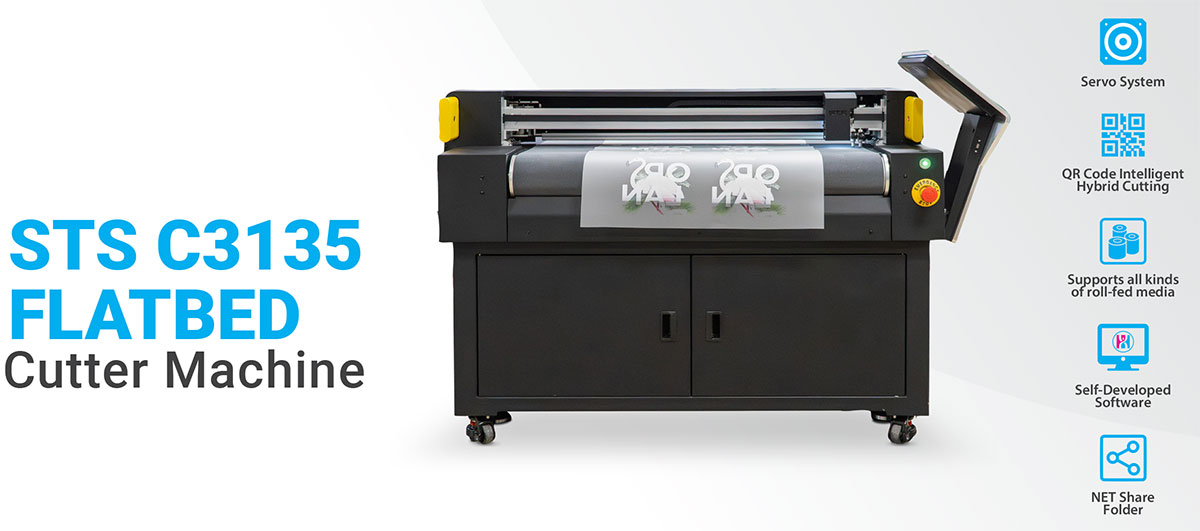

KEY FEATURES
- CCD camera with intelligent edge detection.
- Supports QR code recognition for automatic detection of multiple jobs and mixed-material cutting from roll-fed media.
- Supports multiple roll-fed media and allows precise cutting or perforation within printed image areas.
- Supports multiple material types including PET heat transfer fillm, self-adhesive vinyl, cardboard, coated paper, and kraft paper.
- Space-saving foldable design for convenient transport and storage.
- Anti-static board for stable media feeding.
| CUTTING CONTROL SYSTEM | High-power brushless servo motor |
|---|---|
| POSITIONING SENSOR TYPE | Digital Camera (CCD) |
| CONTROL PANEL | 10 inch capacitive touch screen |
| NUMBER OF TOOL HOLDERS | 1 tool holders |
| BLADE TYPES | Blade/ Pen/ Scoring Pen |
SOFTWARE AND COMPATIBILITY
| CONNECTIVITY | USB / LAN / WiFi / U disk |
|---|---|
| SOFTWARE AND COMPATIBILITY | Cut Software CutStudio / Coral Draw / illustrator Plug-In |
POWER AND WORKING ENVIRONMENT REQUIREMENTS
| WORKING VOLTAGE AND CURRENT | 110VAC ~ 120VAC – 50/60Hz – Maximum current 6.8A 220VAC ~ 240VAC – 50/60Hz – Maximum current 3.4A |
|---|---|
| WORKING POWER | Maxium 350W |
| VACUUM PUMP VOLTAGE AND CURRENT | 110VAC – 50Hz – Rated current 10.8A – 60Hz – Rated current 13A 220VAC – 50Hz – Rated current 4.5A – 60Hz – Rated current 5.6A |
| AIR PUMP VACUUM POWER | 110VAC – 50Hz – 0.75KW / 110VAC – 60Hz – 0.84KM 220VAC – 50Hz – 0.75KW / 220VAC – 60Hz – 0.83KM |
| OPERATION ENVIRONMENT |
TEMPERATURE: +5°C to +35°C / 41°F – 95°F HUMIDITY: 30% – 75% RH (Non-Condensing) |
DIMENSIONS AND WEIGHT
| ACTUAL DIMENSIONS | 1650x1130x1020mm | 64.96×44.49×40.49in (LxWxH) |
|---|---|
| PACKAGE DIMENSIONS | 1760x1450x620mm | 69.29×57.09×24.41in (LxWxH) |
| GN/NW | 276±5Kg/176±5Kg | 608.47±11.02lb/388.01±11.02lb |
MACHINE PERFORMANCE
| MEDIA HOLD METHOD | Vacuum suction |
|---|---|
| SCANNING CODE TYPE | Mark or QR Code |
| MAXIMUM CUTTING SIZE | 900 x 800 mm | 35.43 x 31.50 in |
| SCANNING SPEED | About 5s |
| CUTTING SPEED | 10-700 mm/s | 0.39-27.6 in/s |
| CUTTING FORCE | 0-750 g | 0-1.65 lbs of force |
| MAXIMUM PAPER WEIGHT | Up to 400g (Varies from different cutting materials) |
| SHEET FEEDING METHOD | Friction feed |
| MAXIMUM DIAMETER OF PAPER FEED ROLL | 200mm | 7.87in |
| MAXIMUM FEED ROLL WIDTH | 600mm | 23.62in |
| SHEET FEEDING SPEED | 100-600 |
| MAXIMUM CHARACTER CUTTING SIZE | About 10mm2 (Varies from contour patterns and media) |
| INTERNAL STORAGE SPACE | Memory size: 128M | Function: For storing cutting files, use |
| MECHANICAL RESOLUTION | 0.02m | 0.00079in |
| PROGRAMMABLE RESOLUTION | HPGL 0.025mm | HPGL 0.00984in |
| REPEAT PRECISION | ≤ 0.05mm | ≤ 0.00197in |
| CUTTING MEDIA TYPES | Hot Film / Sticker / Cardboard / etc. |
