Descripción

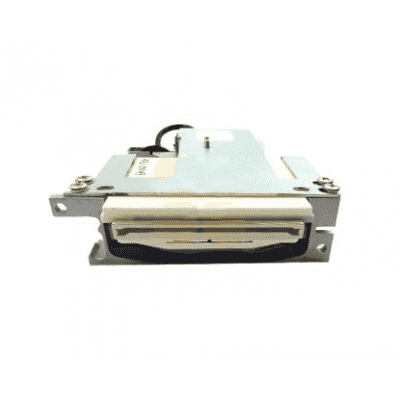

This UJF-605C printhead assy is suitable for the Mimaki UJF-605C printers. This is the original Mimaki part (number M005803).
Product Specifications
- Technology: Multi-drop grayscale micro-piezo
- Grayscale levels: 8
- Active nozzles: 318
- Print swathe width: 53.6 mm
- Nozzle pitch: 169 μm
- Native resolution: 150 dpi
- Printhead weight: 148 g
- Dimensions: 85 x 70 x 23 mm
- Drop volume: 6 - 90 pl
- Typical firing frequency: 4.8 kHz
- Ink Compatibility: oil-based pigment ink and UV curable pigment ink
COMPATIBLE PRINTERS :
Mimaki
- UJF-605C
- UJF-605RII
