Description
High output and high-performance Industrial DTG printing
The Kyo Series was developed for customers with high output needs, for either large runs of the same design or one-offs. This proven platform offers excellent uptime of operation, which translates into the fastest return on investment of any DTG printing machines on the market.
The KYO Series offers unsurpassed print quality, unbeatable print speed, and the highest quality industrial components. There are over 30 standard pallets with a maximum print area of 92 x 98 cm for added flexibility. With aeoon’s open architecture, workflow processes are easily attainable, which will improve on the industry's lowest cost per print. Based on optimized ink usage.
There is no better solution to set up or expand a high output, versatile and lucrative DTG production business. The Kyo Series offers you can get maximum output, maximum print area, and maximum performance!
Output 12/3 – on a dark garment
Print size (40 x 20 cm / ~16 x 8 in)*
Depending on the performance of the operator, on the material and design.
Benefits:
- Fastest return on investment (with good capacity utilization)
- Fastest DTG printer on the market
- 24/7 – High-performance production in shift operation
- No pretreatment for white garments – low printing costs

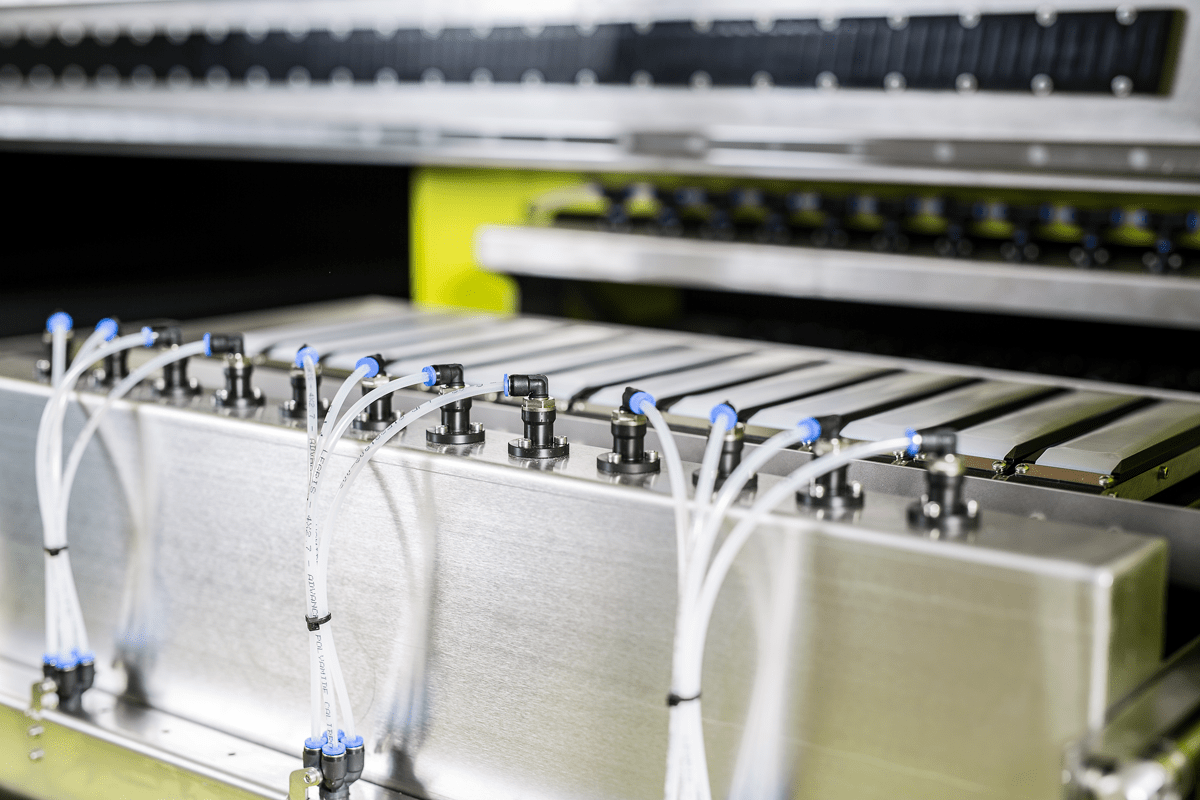

- Industrial print heads with a print resolution from 600 dpi up to 2400 dpi
- Integrated API interface

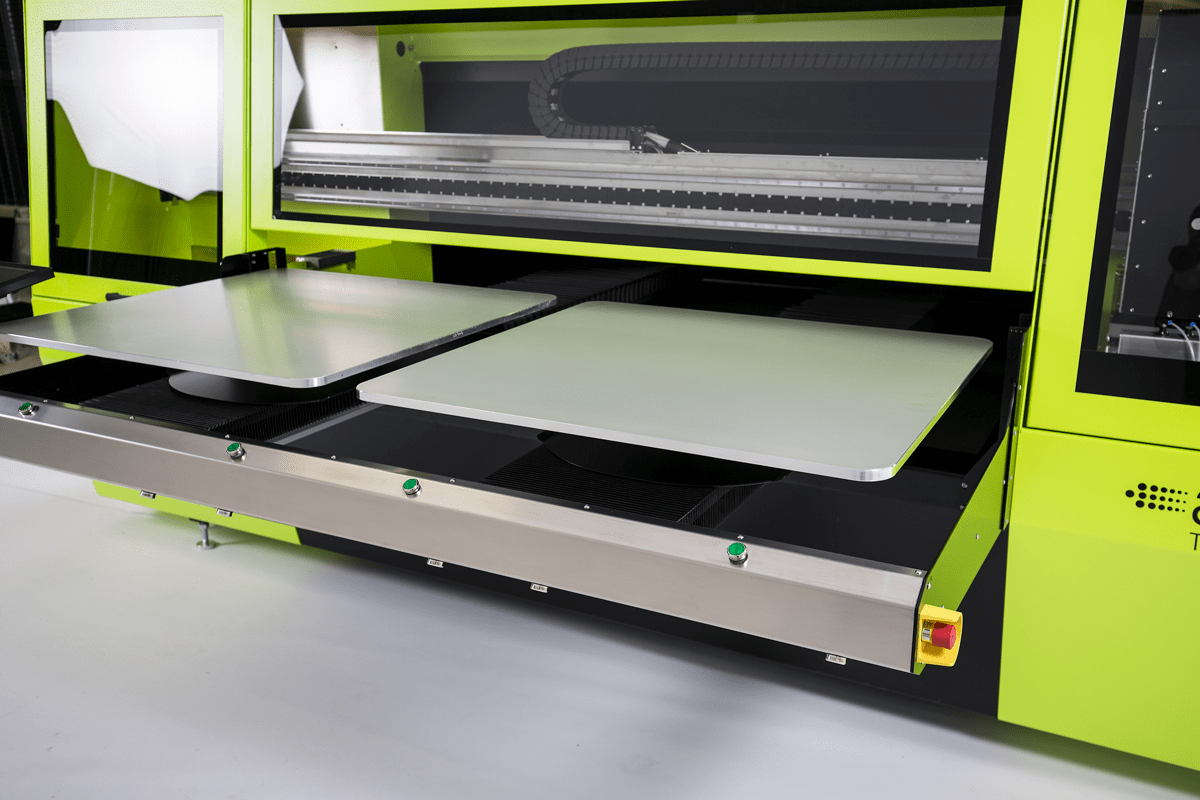

- Wide range of pallets – also for special applications
- max. print size 200 x 98 cm (frameless pallet).
Robert Hake, CEO & Founder of MyLocker
“Our company has more than 30 aeoons running 2 shifts/7 days a week. We have tested every commercial DTG machine, and aeoon is by far the most scalable solution for POD fulfillment. Their high-definition prints, cost per/print, and up-time reliability are the best in the market. aeoon technologies blow the competition clean out of water.”
Technical specifications:
| Industrial printheads: | 4, 8 or 12 |
| Print stations: | 2 or 3 |
| Color channels: | CMYK or Double CMYK or CMYK|4W or CMYK|8W or CMYKOG|6W |
| Max. Print size: | 60 x 90 cm; 23.6 x 35.4 in XL version: 92 x 98 cm; 36.2 x 38.6 in |
| Printable material: | Cotton, synthetics, mixed fibers, canvas, wood, leather, and more |
| Machine size: | 410 x 290 x 200 cm; 161.4 x 114.2 x 78.7 in |
| Machine weight: | 2000 kg; 4409 lb |
| Electrical connections: | 400/208 VAC, 50/60 Hz, 3 Ph, 16 A – max. Power: 7.5 kVA |
| Compressed air: | 7 bar – quality class 5 |
|
Environmental conditions: depending on the ink used |
Temperature: 22 – 28 °C, |
