High-speed pretreatment for industrial mass production
Our PTB Series is an excellent extension of the machine park for an efficient and economical workflow.
Pre-treatment units integrated into the printer reduce printer performance and production capacity enormously. The PTB Series enables textiles to be prepared for printing in a separate work step. The individually adjustable spray areas with up to 13 nozzles achieve an unrivaled spray area of up to 1 x 3 meters. The integrated cleaning function, storage of default settings, and easy connection to our dryers increase the productivity of our customers significantly. The PTB Series is thus the logical extension for our customers with high production capacity and the need to increase their productivity.
The PTB Series is thus the logical extension for our customers with high production capacity and the need to increase their productivity.
- Individual spraying areas with up to 13 nozzles
- The laser automatically identifies areas for pretreatment
- Cleaning function of the nozzles and the conveyor belt

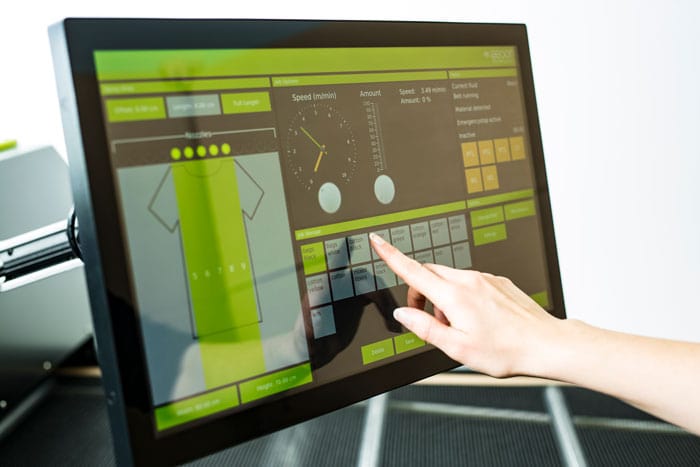

- Save your own pretreatment settings
- Fluid change at the push of a button
- Can be connected directly to a dryer (optional).
|Spray area:||1 x 3 m

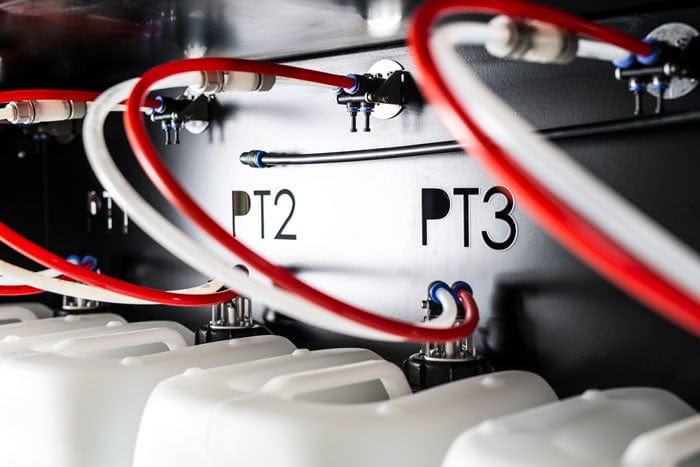

|A number of tank connections:||4|
|Machine size:||300 x 120 x 140 cm; 118.1 x 47.2 x 55.1 in|
|Machine weight:||250 kg; 551 lb|
|Electrical connections:||1x 230 V + N + PE, 16A, 0.9 kVA|
