Arizona 300/350 Print Head Assembly

  • Sale
  • Regular price $1,799.99
  • or

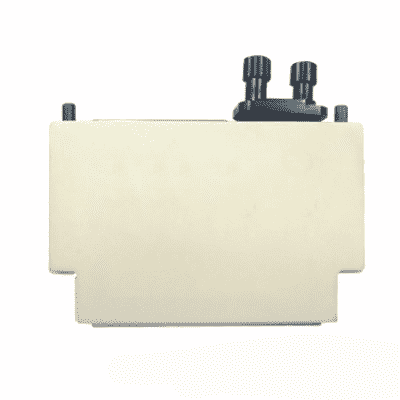

This Toshiba / Xaar CA4 on-demand piezo electric inkjet print head is designed for industrial applications with high print quality. Unlike conventional binary print heads, this grayscale print head technology is capable of jetting multiple drops within one dot allowing for an image to have 16 levels of grey, since each dot is created through a minimum of 6 picolitre to a maximum of 90 picolitre of ink.

This CA4 printhead was modified to fit the Océ Arizona 300/350 GT/XT printers. This original Toshiba / Xaar printhead corresponds to Océ Arizona 3010108132 head. This printhead is supplied without bracket and the JIG tool PPHDI11519 can be used to easily fit this new printhead on the old Océ bracket.


Specifications
 Technology: On Demand Piezo Electric
• Max. Resolution: 1200 dpi
• Droplet Size: 6 to 90 pl
• Maximum Grayscale Levels: 16
• Tot. Amount of Nozzles: 318
• Nozzle Spacing: 169 microns
• Firing Frequency: 28 kHz (1 drop) - 2.8 kHz (15 drops)
• Driving Voltage: 14 - 31 V
• Ink Compatibility: Oil Based Pigment Ink and UV Ink

COMPATIBLE PRINTERS :

Fujifilm
  • Acuity Advance HD2545
  • Acuity Advance HD2545 X2
  • Acuity Advance HD2545W
  • Acuity Advance HD2565
  • Acuity Advance HD2565 X2
  • Acuity Advance LT
Océ
  • Arizona 300 GT
  • Arizona 318 GL
  • Arizona 350 GT
  • Arizona 350 XT
  • Arizona 360 GT
  • Arizona 360 XT
