Description

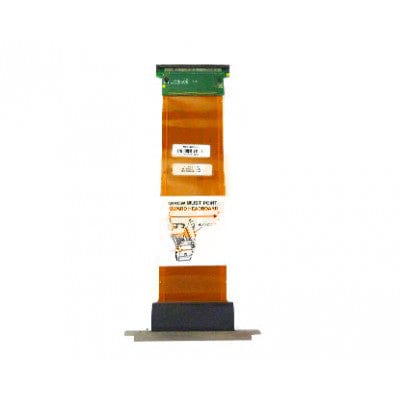

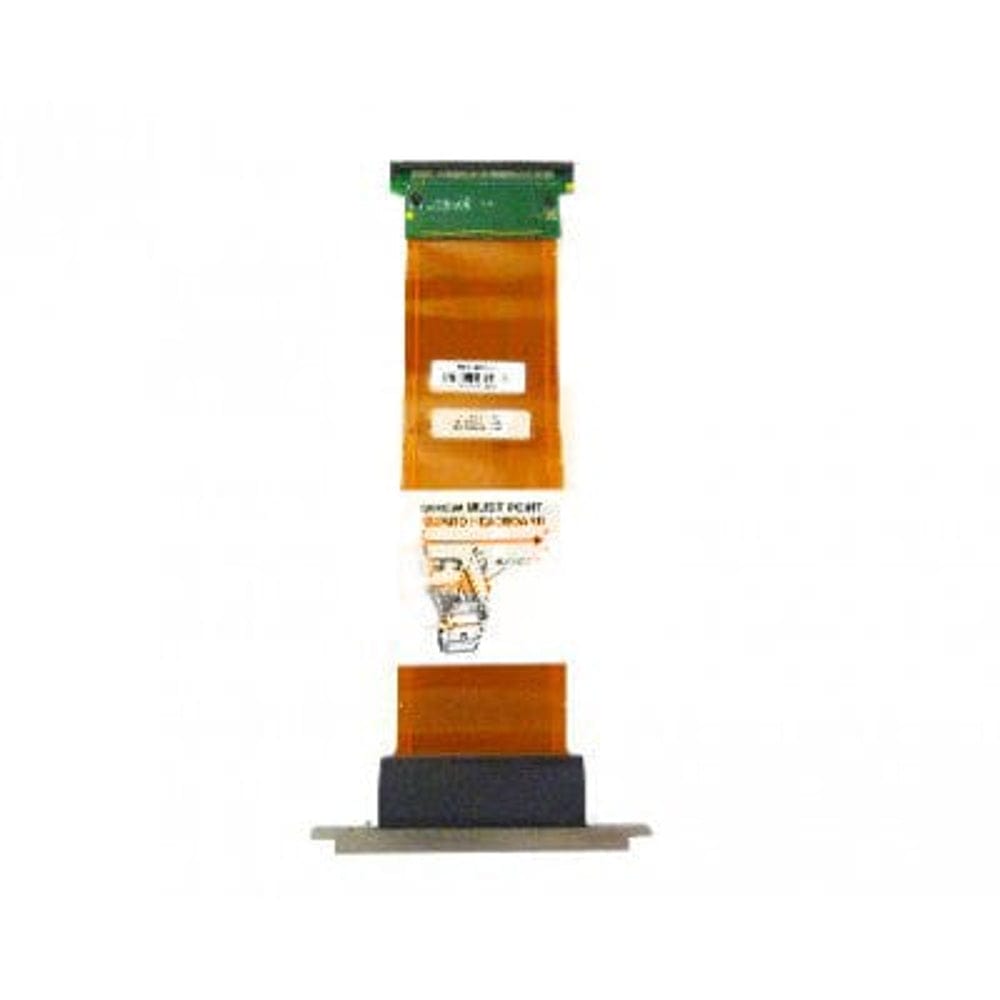

The Ricoh / Hitachi GEN3-E3 (MH1603/1803/1903/338690-001) printhead is suitable for HP FB700 / FB500 printers. This master printhead is a robust metallic construction offering resolution of up to 360dpi for fast speed and high-quality printing. There are 192 channels for a drop volume of 30 or 45 pl. This is HP / HP Scitex original printhead (number L1Q41-67065 replacing CQ114-67019). This printhead doesn't include the sub-ink tank CH104-67001, discontinued by HP.
Product Specifications
- Size: 7.8 x 120 x 35 mm (excluding cables)
- Head materials: SST, Pd, and Epoxy Adhesive
- Nozzle plate surface: Non-coated SST
- Number of nozzles: 192 nozzles
- Nozzle spacing: 0.3387 mm
- Piezo type: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 30 pl - 45 pl
- Drop volume range: 12-50 pl
- Jetting frequency: Up to 30 kHz
- Life: 100 billion actuations per nozzle
- Apollo R220
- Apollo UV-RF2200
- UVistar Pro 8
- Uvistar
- Uvistar II
- Scitex FB550
- Scitex FB750
- Scitex FB500
- Scitex FB700
- Scitex FB950
- Barak 4Q
- Barak 8Q
- Barak 8QW
- Barak HS
- Barak iQ
