Graphtec FCX2000 Series Flatbed Cutting Plotter


Price:
Sale price$14,500.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Graphtec • Flatbed Cutter

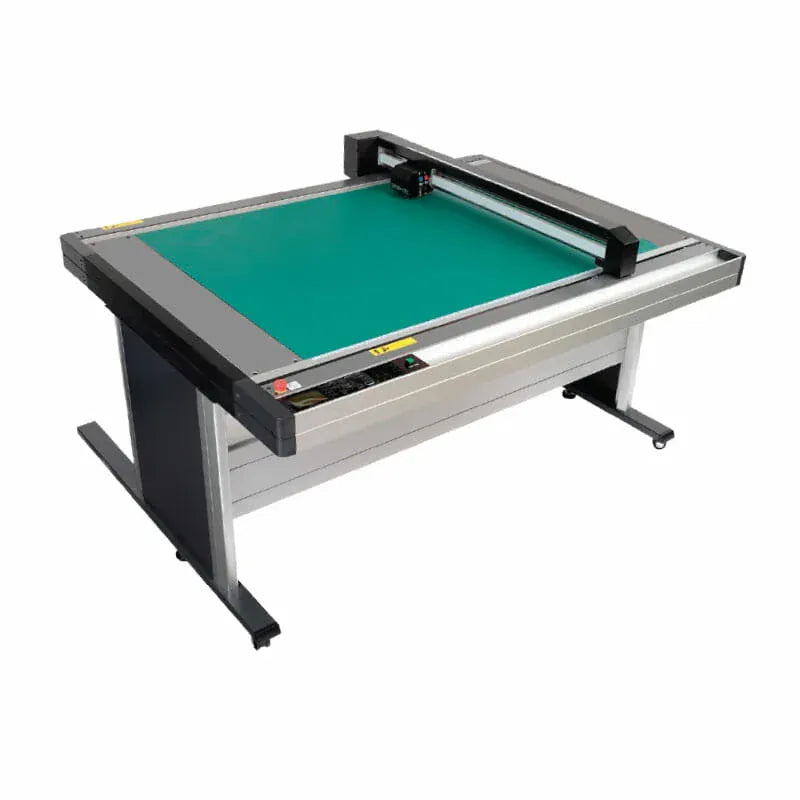

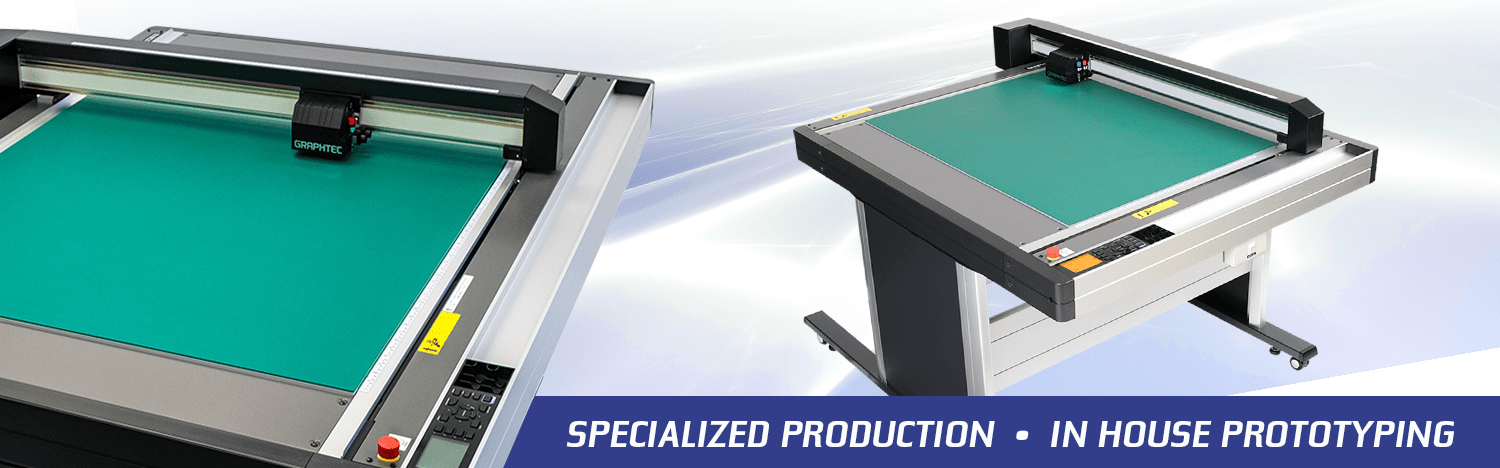

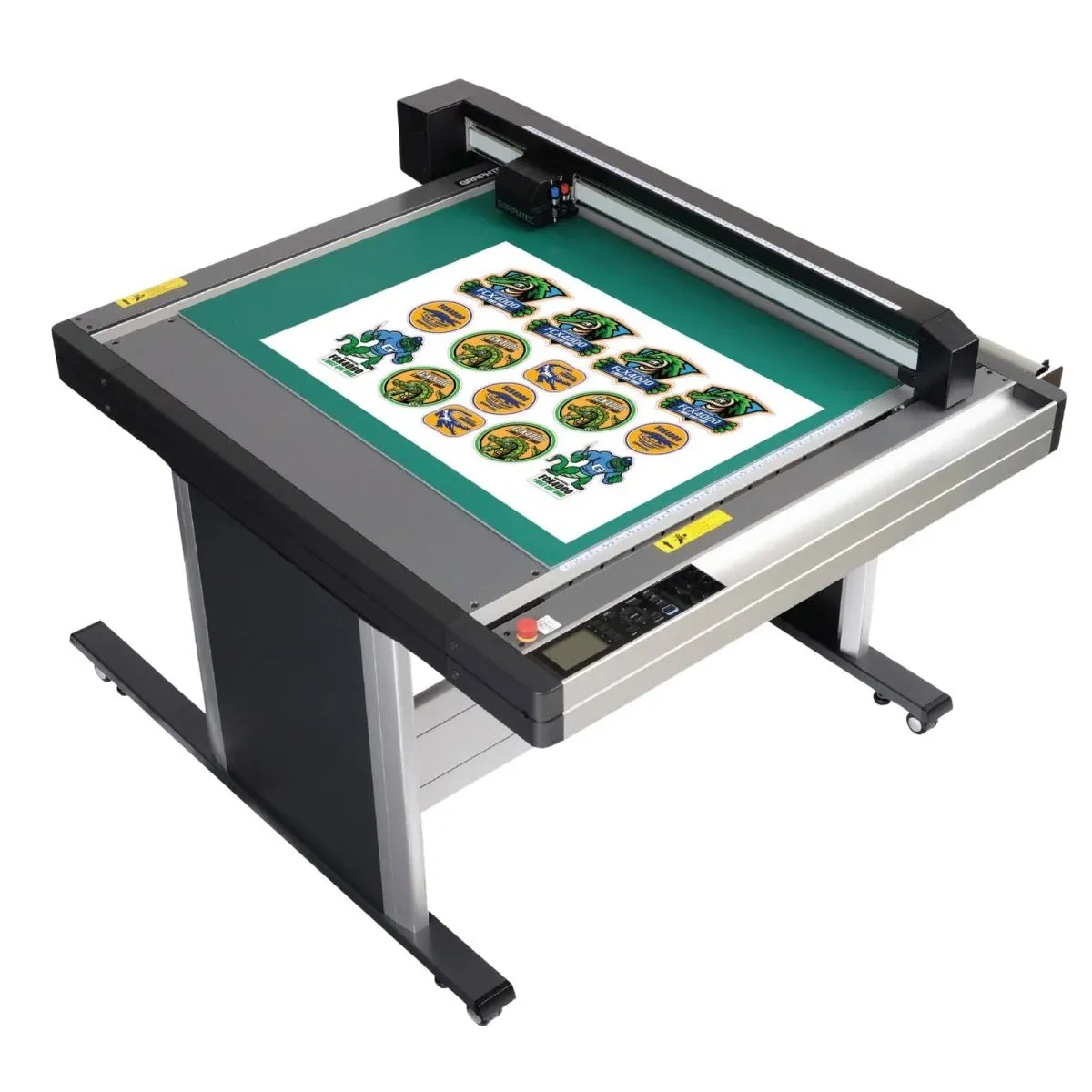

Graphtec FCX2000 Series Flatbed Cutting Plotter

About this product

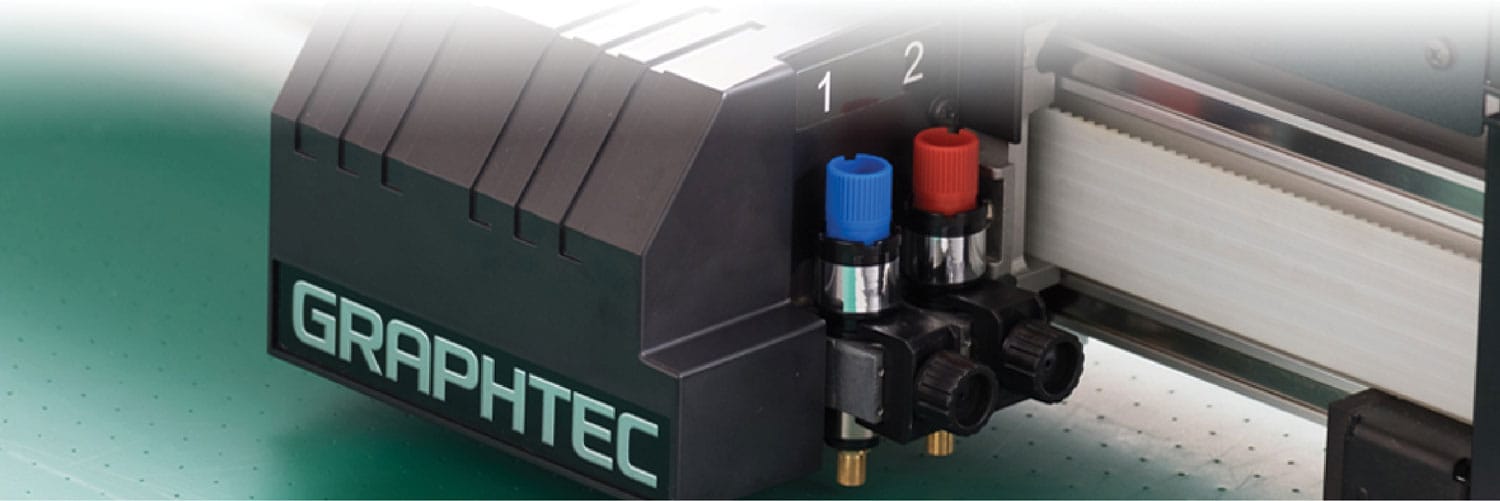

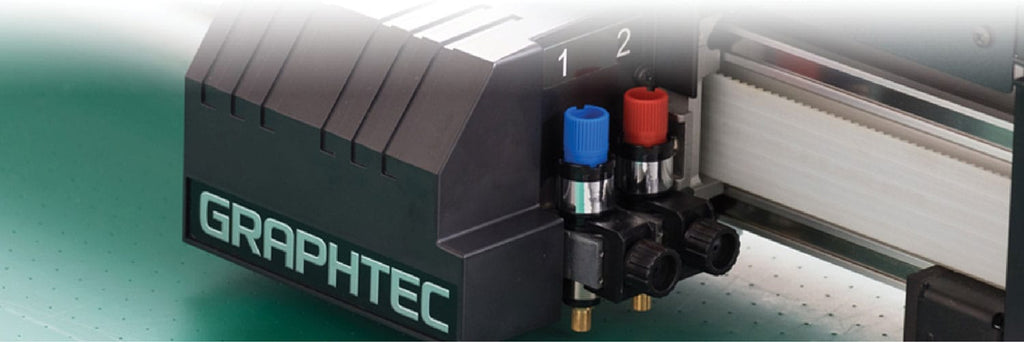

The Graphtec FCX2000 Series is a vacuum hold-down flatbed cutting plotter built for short-run die cutting, packaging prototyping, sign making, sandblast resist and industrial marking. A dual tool head carries two tools at the same time — a cutting blade plus a creasing / scoring tool or pen — so cutting and creasing run in a single job without swapping tooling.

ARMS (Advanced Registration Mark Sensing) reads registration marks automatically for accurate contour cutting on printed sheets, with four-point compensation for skew and distortion. Barcode print & cut lets an operator scan a printed job and load the matching cut data automatically, and offline USB operation means jobs can be run straight from a thumb drive with no computer attached.

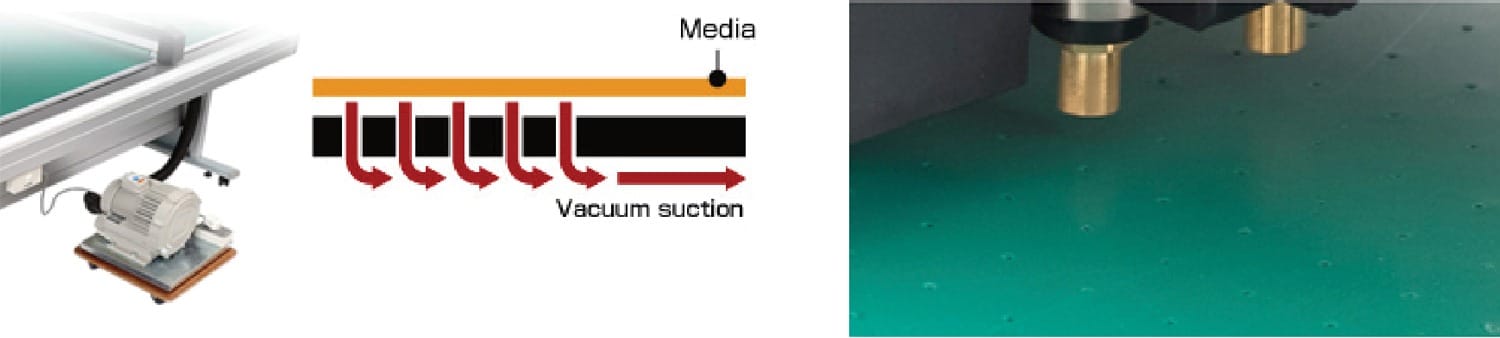

Tool 1 delivers up to 500 gf of cutting force and Tool 2 up to 1 kgf, with cutting speeds to 400 mm/sec in all directions. The improved 20 mm vacuum hole spacing (versus 30 mm on earlier models) holds small parts and thin media flat through the cut.

Three cutting widths are available: FCX2000-60VC (24" x 36"), FCX2000-120VC (47.2" x 36") and FCX2000-180VC (70.8" x 36"). All models include Graphtec Studio 2 and Cutting Master 5 software and carry a 2-year warranty.

Please note: FCX2000 VC models require a vacuum pump kit (part 59000-050), sold separately.

Models & cutting area

FCX2000-60VC 24" x 36" (610 x 920 mm) effective cutting area
FCX2000-120VC 47.2" x 36" (1,200 x 920 mm) effective cutting area
FCX2000-180VC 70.8" x 36" (1,800 x 920 mm) effective cutting area
Mountable media (Y axis) 37.4" (950 mm) on all models

Specifications

Brand Graphtec
Type Flatbed Cutter
Condition New
Configuration Digital servo system, flatbed
Media Hold-Down Vacuum suction (vacuum pump kit 59000-050 required, sold separately)
Maximum Cutting Speed 400 mm/sec all directions (1 to 40 cm/s, 16 steps)
Cutting Force - Tool 1 Max. 4.9 N (500 gf), 40 steps
Cutting Force - Tool 2 Max. 9.8 N (1 kgf), 40 steps
Number of Tools Two (simultaneous cut and crease)
Tool Types Supersteel cutting blade, oil-based pen, creasing / scoring tool
Minimum Character Size Approx. 10 mm square (alphanumeric)
Programmable Resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm
Distance Accuracy Max. 0.1% or 0.1 mm, whichever is larger
Perpendicularity Max. 0.5 mm / 900 mm
Repeatability Max. 0.1 mm
Registration Mark Sensing ARMS with four-point axis / distance compensation

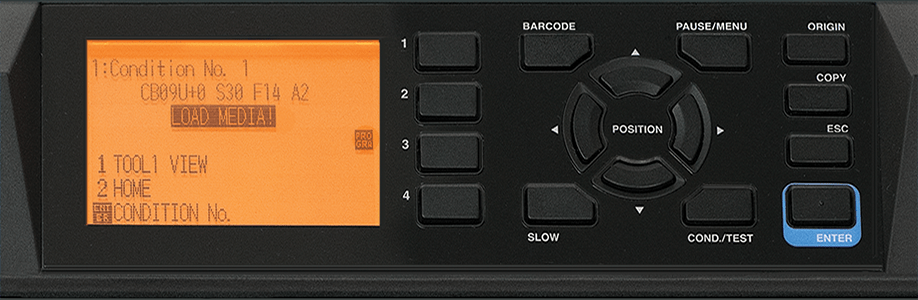

Control Panel 3.7" graphic LCD with touchscreen and mechanical keys
Standard Interfaces USB 2.0 (High-Speed), RS-232C, Ethernet 10BASE-T / 100BASE-TX
Buffer Memory 2 MB
Command Sets GP-GL and HP-GL emulation
Power Source 100 to 240 VAC, 50/60 Hz (auto switching)
Power Consumption Max. 140 VA
Vacuum Pump 110 V: 1.5 hp / 220 V: 2.5 hp (sold separately)
Operating Environment +10 to +35°C, 35 to 75% RH (non-condensing)
Dimensions (W × D × H) FCX2000-60VC: 52.9" x 55.4" x 36.6" (1,344 x 1,409 x 930 mm) | FCX2000-120VC: 76.9" x 55.4" x 36.6" (1,934 x 1,409 x 930 mm) | FCX2000-180VC: 99.7" x 55.4" x 36.6" (2,534 x 1,409 x 930 mm)
Weight (with stand) FCX2000-60VC: 167.5 lbs | FCX2000-120VC: 218.2 lbs | FCX2000-180VC: 225.7 lbs
Compatible OS Windows 11 / 10 / 8.1 (64-bit), macOS
Included Software Graphtec Studio 2, Cutting Master 5
Safety / EMC Standards UL60950-1 / cUL, CE (Low Voltage & EMC), FCC-A, EN55032-A
Warranty 2 Years

Supported media

Materials
Self-adhesive vinyl Reflective film Static cling Rubylith Sandblast resist rubber Cardboard / corrugated Heavy paper & oil board Compressed foam sheet Clear sheet / polycarbonate
Compatible tooling
CB09UB CB15U CB15U-K30 CB15UA CB30UC PM-CB-001 PHP33-CB09N-HS PHP33-CB15N-HS PM-CH-001 CP-001 / CP-002 / CP-003 PM-CT-002
