Description

Graphtec • Flatbed Cutter
Graphtec FCX4000 Series Flatbed Cutting Plotter

About this product

The Graphtec FCX4000 Series is a compact electrostatic hold-down flatbed cutter designed for packaging prototyping, short-run die cutting, label and decal work and sample making. Because hold-down is electrostatic rather than vacuum, no external pump or compressor is required — the machine plugs into standard 110 V power and runs quietly in an office or print shop.

Enhanced rigidity in the sliding mechanism improves cut quality and accuracy over previous generations, and a dual head configuration holds two tools at once so cutting and creasing complete in a single job. The reverse creasing function creases from the back of the sheet to prevent surface marks on printed faces, and up to three fold lines can be created per crease.

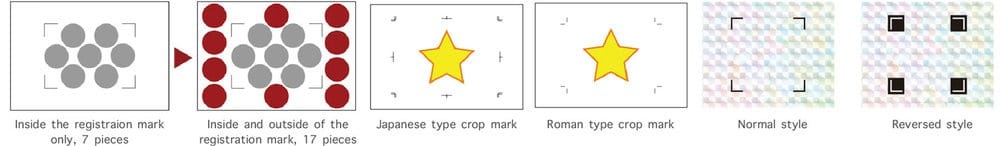

ARMS registration mark sensing supports both standard and reversed-color marks, and the contour cutting area extends beyond the registration marks themselves. Barcode print & cut data management over USB and full offline operation from a thumb drive let an operator run jobs without a connected computer.

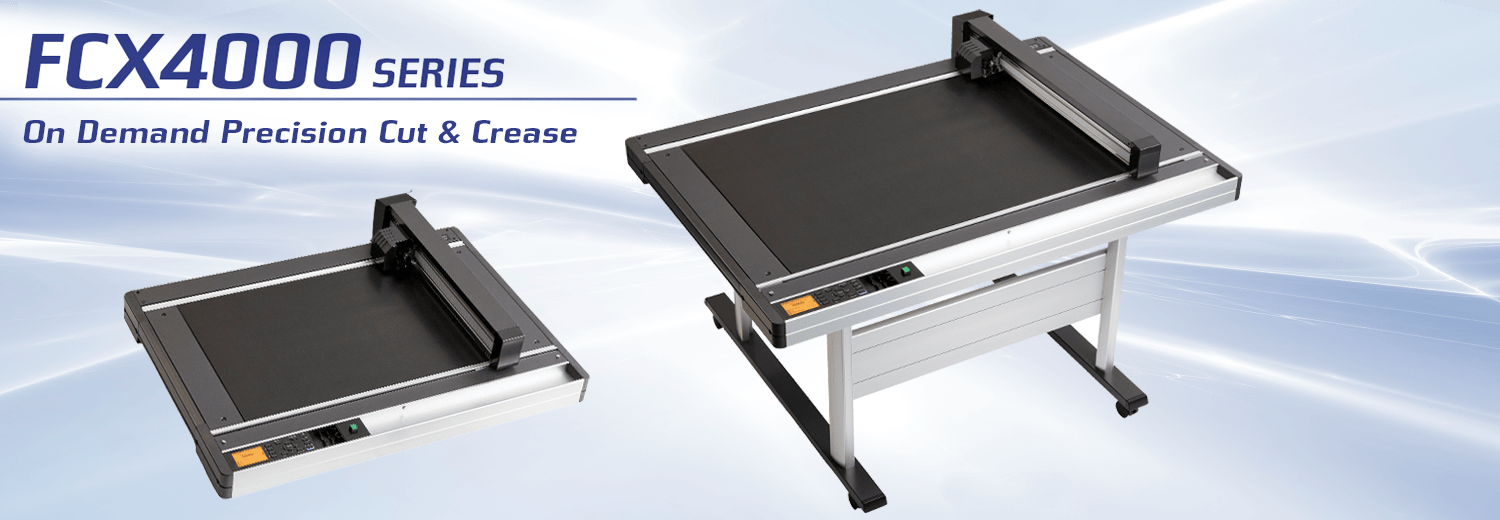

Two sizes are available: FCX4000-50ES with a 25.98" x 19.21" cutting area, and FCX4000-60ES with a 38.4" x 25.9" cutting area. Both include Graphtec Studio 2 and Cutting Master 5 and carry a 2-year warranty.

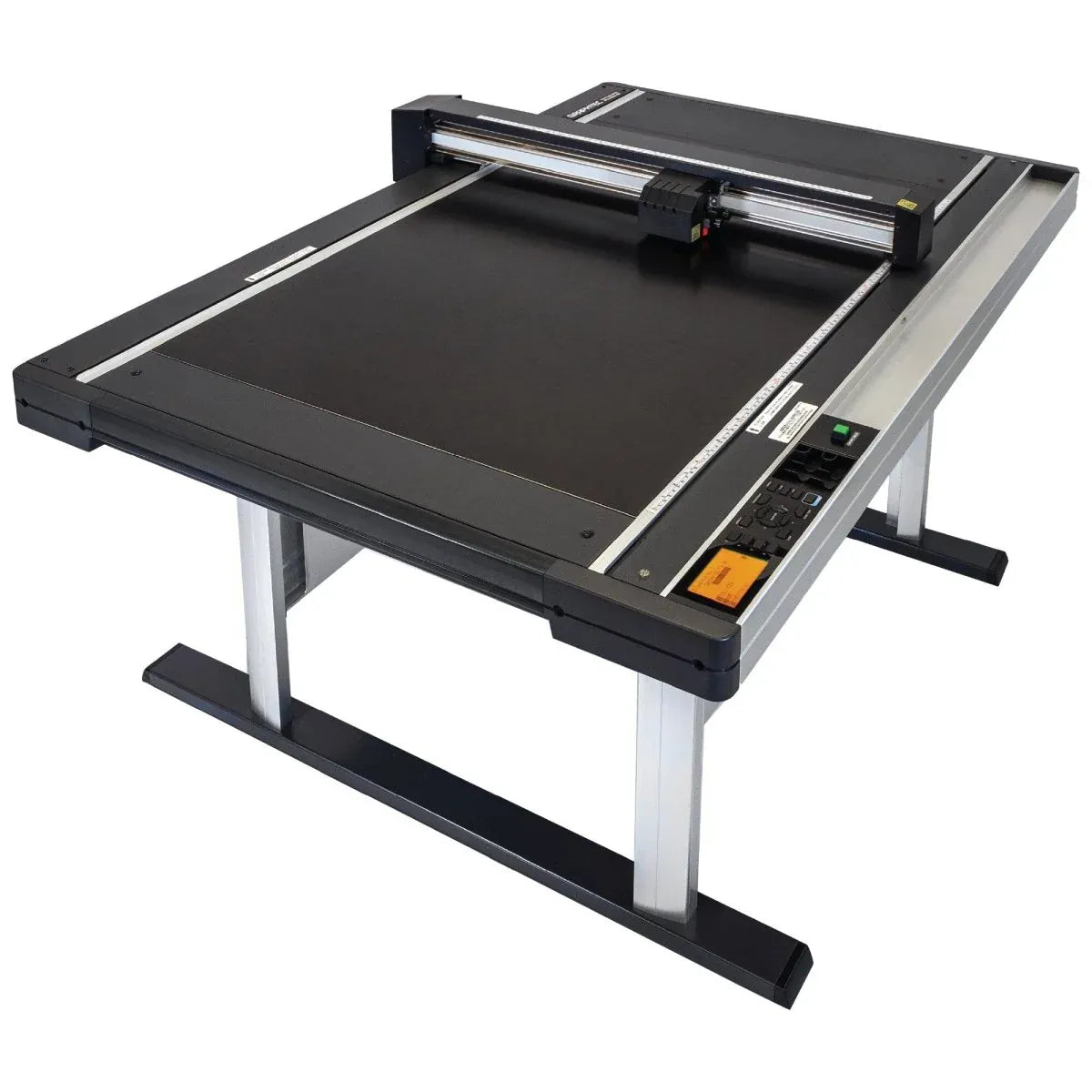

Please note: an optional stand (part ST0113) is available for the FCX4000-60ES, sold separately.

Models & cutting area

FCX4000-50ES 25.98" W x 19.21" H effective cutting area; table 42.87" x 35.31" x 8.03"
FCX4000-60ES 38.4" W x 25.9" H effective cutting area; table 55.31" x 42.08" x 8.03" (stand ST0113 optional)
Mountable media (Y axis) 21.10" on both models

Specifications

Brand Graphtec
Type Flatbed Cutter
Condition New
Configuration Digital servo system, flatbed
Media Hold-Down Electrostatic panel (110 V) — no vacuum pump required
Maximum Cutting Speed 29.5"/sec (1 to 75 cm/s, 23 steps)
Cutting Force Tool 1 & Tool 2: max. 5.88 N (600 gf), 48 steps per tool
Number of Tools Two (simultaneous cut and crease)
Tool Types Supersteel cutting blade, oil-based pen, creasing / scoring tools
Minimum Character Size Approx. 10 mm square (alphanumeric)
Mechanical Resolution 0.005 mm (5 µm)
Programmable Resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm
Distance Accuracy Max. 0.2% or 0.1 mm, whichever is larger
Perpendicularity FCX4000-50ES: max. 0.3 mm / 16.93" | FCX4000-60ES: max. 0.4 mm / 24.01"
Repeatability Max. 0.1 mm
Registration Mark Sensing ARMS — standard and reversed-color marks supported

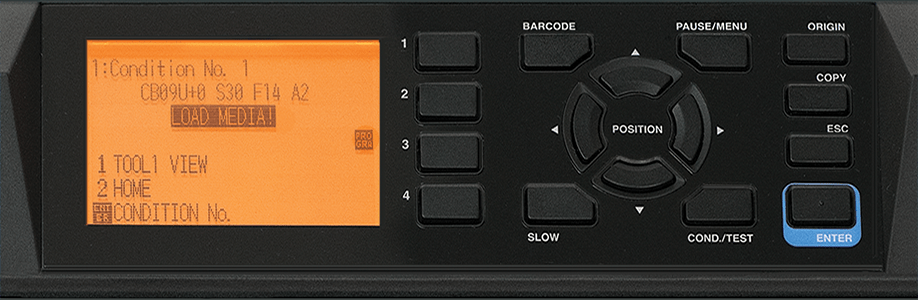

Control Panel 3.7" graphic LCD touchscreen (240 x 128 dots)
Standard Interfaces USB 2.0, RS-232C, Ethernet 10BASE-T / 100BASE-TX
Buffer Memory 2 MB
Command Sets GP-GL / HP-GL / AUTO
Power Supply 100 to 240 VAC, 50/60 Hz (auto switching)
Power Consumption Max. 120 VA
Operating Environment +10 to +35°C, 35 to 75% RH (non-condensing)
Dimensions (W × D × H) FCX4000-50ES: 42.87" x 35.31" x 8.03" | FCX4000-60ES: 55.31" x 42.08" x 8.03" (without stand)
Weight FCX4000-50ES: approx. 63.9 lbs (29 kg) | FCX4000-60ES: approx. 83.8 lbs (38 kg); 121.3 lbs (55 kg) with stand
Compatible OS Windows 11 / 10 / 8.1 (64-bit), macOS
Included Software Graphtec Studio 2, Cutting Master 5
Safety / EMC Standards UL / cUL, CE mark, VCCI Class A, FCC Class A, EN55032
Warranty 2 Years

Supported media & blades

Self-adhesive vinyl / reflective film Up to 0.25 mm — CB09UB
Heavy paper / oil board Up to 0.5 mm — CB15U, CB15U-K30 | up to 1.0 mm — CB30UC
Compressed foam sheet Up to 0.8 mm — CB15U-K30
Sandblast resist rubber Up to 1.0 mm — CB15U-K20
Cardboard, E flute Up to 1.5 mm — CB30UC
Cardboard, F / G flute Up to 1.2 mm — CB30UC (cutting) / CB15U-K30 (creasing)
Rubber sheet Up to 2.0 mm — PM-CB-001
Clear sheet / polycarbonate Up to 0.5 mm — CB15U | up to 1.0 mm — CB15U-K30
High-intensity reflective film Up to 0.5 mm — CB15UA | up to 1.0 mm — CB15UA-K30

Key features

Highlights
Electrostatic hold-down — no pump Dual tool head Reverse creasing Up to 3 fold lines ARMS contour cutting Barcode print & cut Offline USB operation 3.7" LCD touchscreen Graphtec Studio 2 Cutting Master 5 2-year warranty

Questions about fit or availability? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
