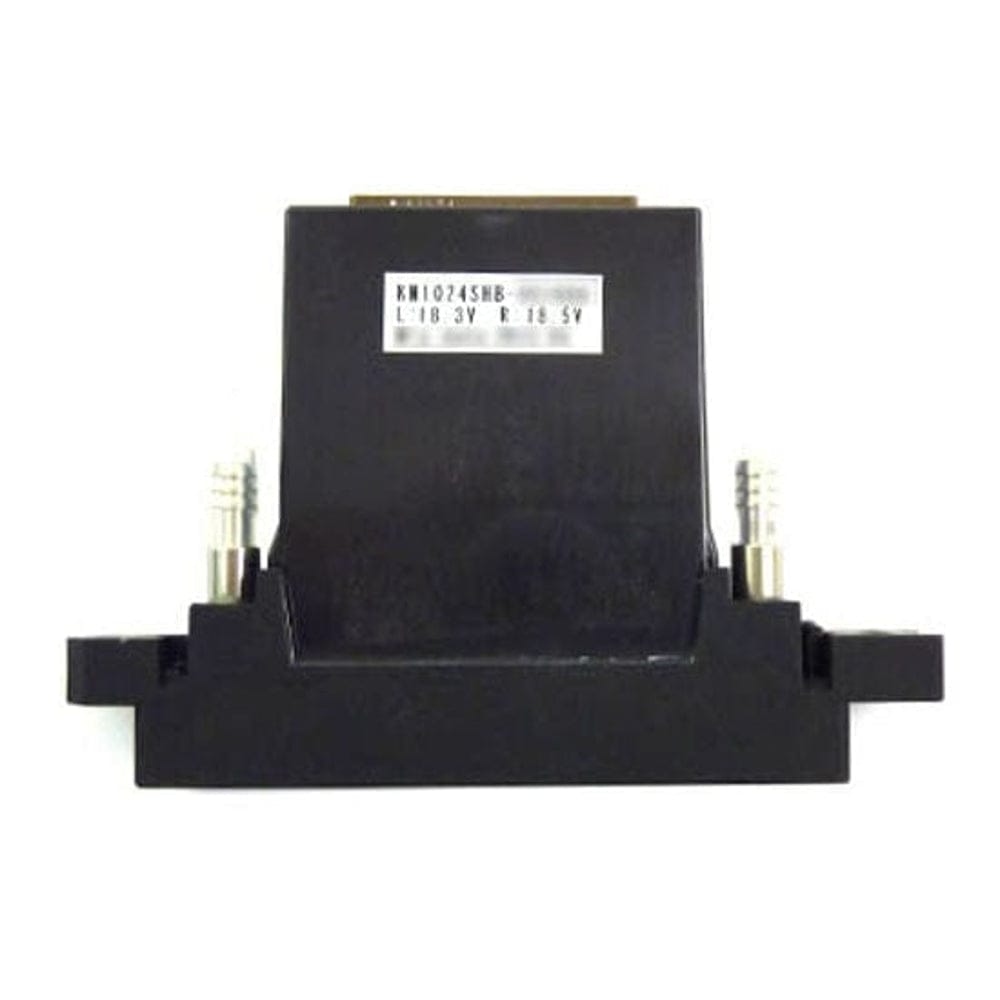

Konica KM1024 3688H Printhead

Sale price$2,310.00 USD
When product is not in stock, usually the time to process is 5-7 days.

Pickup available at Main Office

Usually ready in 2 hours


The Konica Minolta KM1024 3688H print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM1024 3688H print head is a vast improvement over the KM512 print head series, offering twice the print width and double the greyscale level. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads, and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 SHB print head has 1024 nozzles with a droplet size of 6 picoliters and a native resolution of 360 dpi. The print head has an integrated heater, which makes it ideal for UV inks, but suitable for solvent inks. This print head is also known as the Konica Minolta KM1024 SHB. This is Konica's original print head, and it includes the necessary waveform information. It carries a product warranty.


  • Technology: On-Demand Piezo Electric (Shared Wall 3 Cycle)
  • Native Resolution: 360 dpi
  • Cal. Droplet Size: 6 picolitre
  • Max. Drops in Greyscale: 8 drops
  • Tot. Amount of Nozzles: 1024 (512 nozzles per line)
  • Nozzle Spacing: 70.5 microns
  • Print Width: 72 mm
  • Firing Frequency: 26 kHz
  • Ink Compatibility: UV and Solvent Inks
  • Heater: integrated.

Compatible Printers:

  • APro 320F
  • M2
  • ColourPrint-142-HQ
  • ColourPrint-282
  • ColourPrint-352
  • ColourPrint-72
  • MonoPrint 282
  • MonoPrint 352
  • MonoPrint 72
  • Jetrix 1212FK
  • Jetrix KX5
  • Jetrix KX5-R
  • Jetrix KX6
  • Jetrix KX6-R
  • Jetrix KX7
  • Jetrix KX7-R
  • YH-3304X
