Konica KM1024 LHB 42PL. UV & SOLVENT.


Price:
Sale price$3,350.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Konica Minolta • Printhead

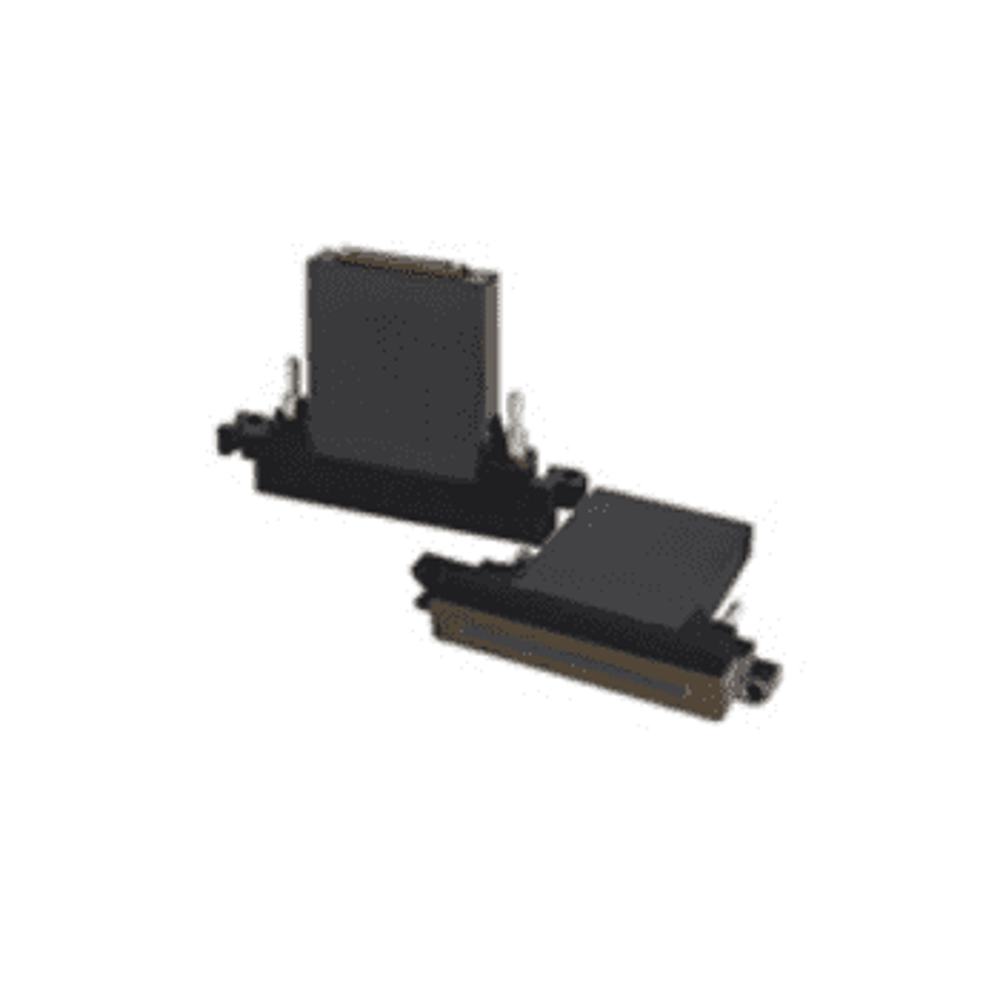

Konica KM1024 LHB 42PL. UV & SOLVENT.
SKU: KONICA1024-42PLLNB

About this printhead

The Konica Minolta KM1024 LH print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM1024 LH print head is a vast improvement over the KM512 print head series, offering twice the print width and double the level of greyscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 LH print head has 1024 nozzles with a droplet size of 42 picolitre and a native resolution of 360 dpi. The print head has an integrated heater, which makes it ideal for UV inks, but suitable for solvent inks as well. This printhead is also known as the Konica Minolta KM1024 LHB. This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty. Specifications

Specifications

SKU KONICA1024-42PLLNB
Brand Konica Minolta
Condition New
Technology On-Demand Piezo-Electric (Shared Wall 3 Cycle)
Native Resolution 360 dpi
Tot. Amount of Nozzles 1024 (512 nozzles per line)
Print Width 72 mm
Firing Frequency 6.7 kHz

Compatible printers

Dilli
Neo Titan FB2513-06DW
Flora
F1 320UV
IIJ
ColourPrint-144ColourPrint-282ColourPrint-352ColourPrint-72MonoPrint 144MonoPrint 282MonoPrint 352MonoPrint 72

All printheads are brand new, never used or refurbished. Not sure this is the right head for your machine? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
