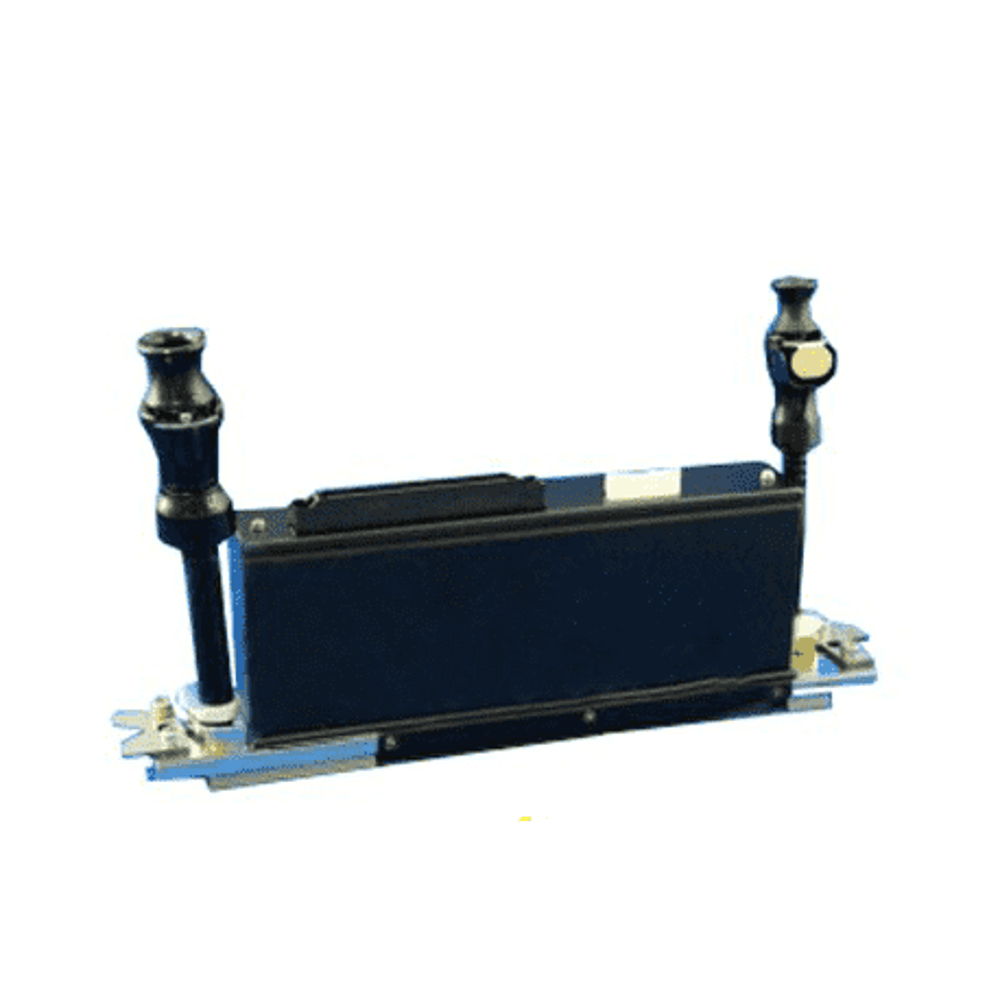

Kyocera Inkjet Printhead KJ4A-0300

  • Sale
  • Regular price $8,200.00
  • or


This new generation Kyocera KJ4A-0300 is designed for high speed single-pass applications with printers using aqueous ink. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swathe.

Specifications
  • Ink Type:  UV ink
  • Dimensions: 200 × 36 × 61.4mm
  • Dry Weight: 540g
  • Total Nozzles: 2.656 (2x 1328)
  • Standard Resolution: 300 x 300dpi
  • Print Width: 112.35mm
  • Max. Drive Frequency: 30kHz
  • Drop Volume: 4, 6, 10 and 14pl
  • Max. Sprint Speed: 158m/min
  • Typical ink viscosity: 7.0-7.5 mPa
    COMPATIBLE PRINTER :
    Handtop
    • HT2500UV HR8
