Description

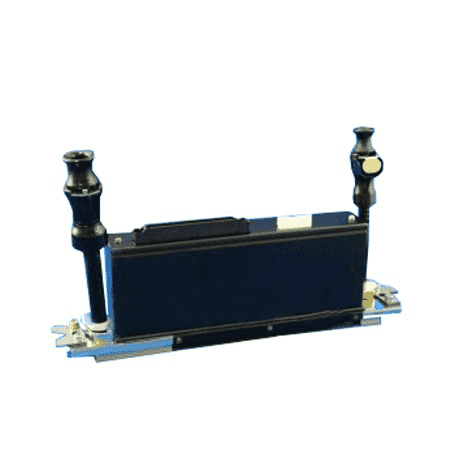

This new generation Kyocera KJ4B-0300 is designed for high-speed single-pass applications with printers using aqueous ink. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 120 m/min by making use of 2,656 nozzles arranged across 112 mm wide print swathe.
Specifications
- Ink Type: Aqueous Ink
- Dimensions: 200 × 36 × 68.5mm
- Dry Weight: 540g
- Total Nozzles:2.656
- Standard Resolution: 300 x 300dpi
- Print Width: 112mm
- Max. Drive Frequency: 30kHz
- Drop Volume: 5, 7, 12 and 18pl
- Max. Sprint Speed: 120m/min
- Typical ink viscosity: 5.0-6.0 mPa
