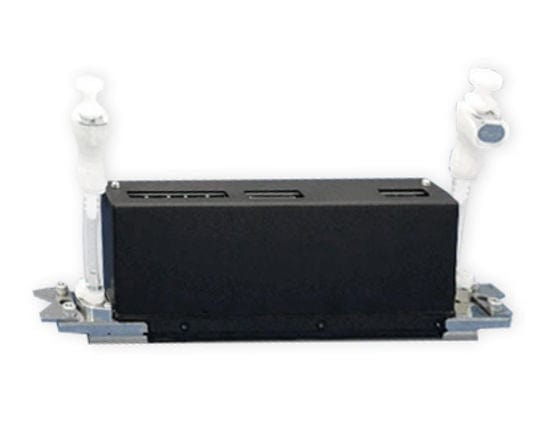

Kyocera Water Printhead KJ4B-YH

  • Sale
  • Regular price $6,900.00


This new generation Kyocera KJ4B-YH is designed is designed for high-speed printing of water-based inks. It is a 600dpi one color printhead with a maximum drive frequency of 40kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

The Kyocera KJ4B-YH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. Its unique ink channel design provides a stable ink supply.

Specifications
  • Ink Type:  Aqueous Ink
  • Dimensions: 200 × 30 × 60.9mm
  • Dry Weight: 438g
  • Total Nozzles: 2.656
  • Nozzle Pitch: 0.042mm
  • Standard Resolution: 600 x 600 dpi
  • Print Width: 108.25mm
  • Max. Drive Frequency: 40kHz
  • Drop Volume: 5, 7, 12 pl
  • Max. Sprint Speed: 100m/min
  • Optimum Ink viscosity: 5.0 - 6.0 mPa*s
