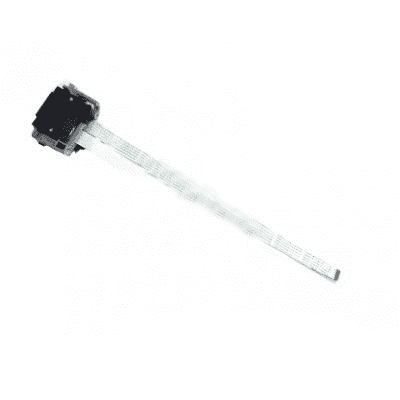

Mimaki CE4 Printhead Assy - M008386

  • Sale
  • Regular price $3,618.00
  • or

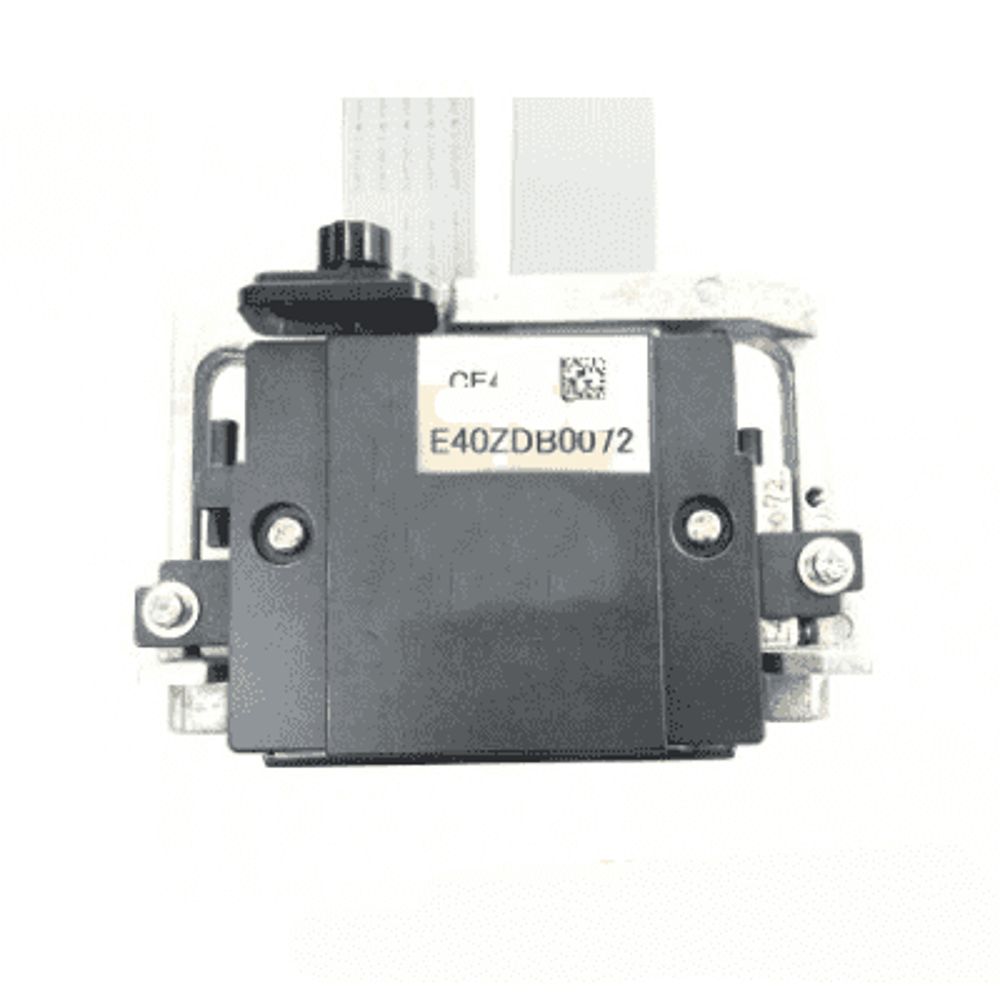

This Printhead Assy is suitable for the Mimaki UJV-160 / JFX / UJF Printers. This is the original Mimaki part (number M008386). It includes the metallic support for fixation. The same printhead without the metallic support is sold as part number KX-CE308644CS-CE4. The cables are 40.9cm long, 2.1cm wide and have 20 pins.

Product Specifications


  • Technology: Multi-drop grayscale micro-piezo
  • Grayscale levels: 16
  • Active nozzles: 318
  • Print swathe width: 53.6 mm
  • Nozzle pitch: 169 μm
  • Native resolution: 150 dpi
  • Printhead weight: 148 g
  • Dimensions: 85 x 70 x 23 mm
  • Drop volume: 6 - 90 pl
  • Typical firing frequency: 2.8 - 28 kHz
  • Ink Compatibility: oil-based pigment ink and UV curable pigment ink

 COMPATIBLE PRINTER :

Mimaki
  • JFX-1615
  • JFX-1615Plus
  • JFX-1631
  • JFX-1631Plus
  • UJF-706
  • UJV-110
  • UJV-160
