Mimaki CF2-0912RC-S Flatbed Cutting Plotter (46 in x 35.4 in)


Price:
Sale price$51,532.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Mimaki • Finishing Solutions • Flatbed Cutter

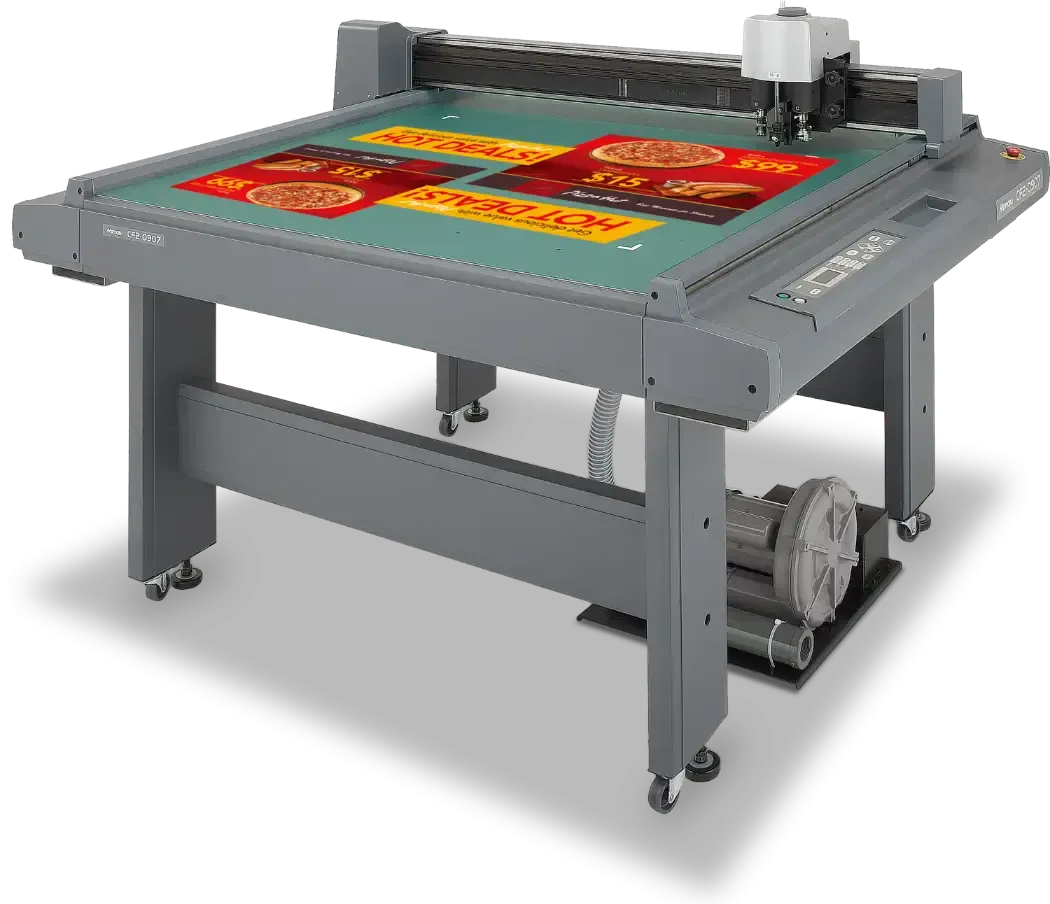

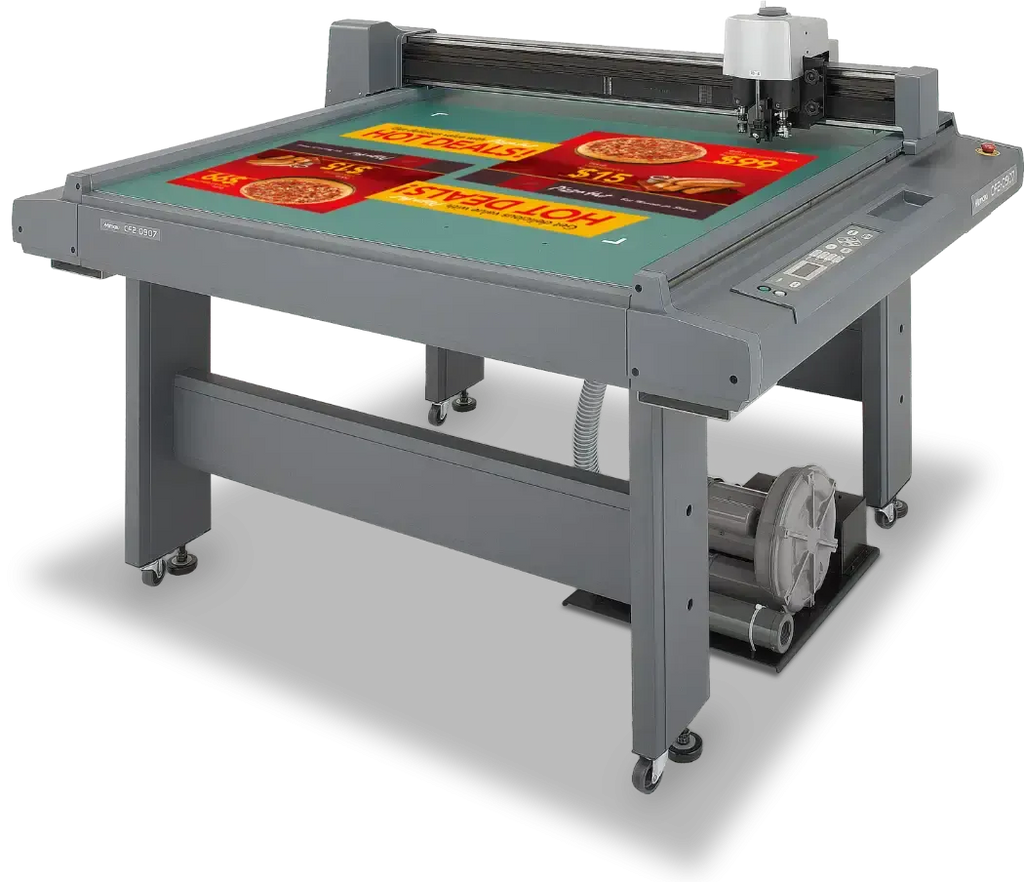

Mimaki CF2-0912RC-S Flatbed Cutting Plotter
SKU: CF2-0912RC-S

About this product

Production-grade cutting and creasing in a compact frame. The CF2-0912RC-S is the smaller model in Mimaki's CF2 flatbed cutter family, giving you a 46 in x 35.4 in cutting area for packaging, signage, POP and industrial work without dies or screen setup. It's sized for studios, design departments and production rooms where floor space matters.

The RC head carries three tool stations (pen/swivel, reciprocating and high-pressure tangential) with up to 5,000 g of cutting and creasing pressure, handling everything from thin films to thick rubber and board. Mimaki's color photo sensor reads register marks for accurate contour cutting when paired with a Mimaki printer, and a vacuum blower holds media firmly in place.

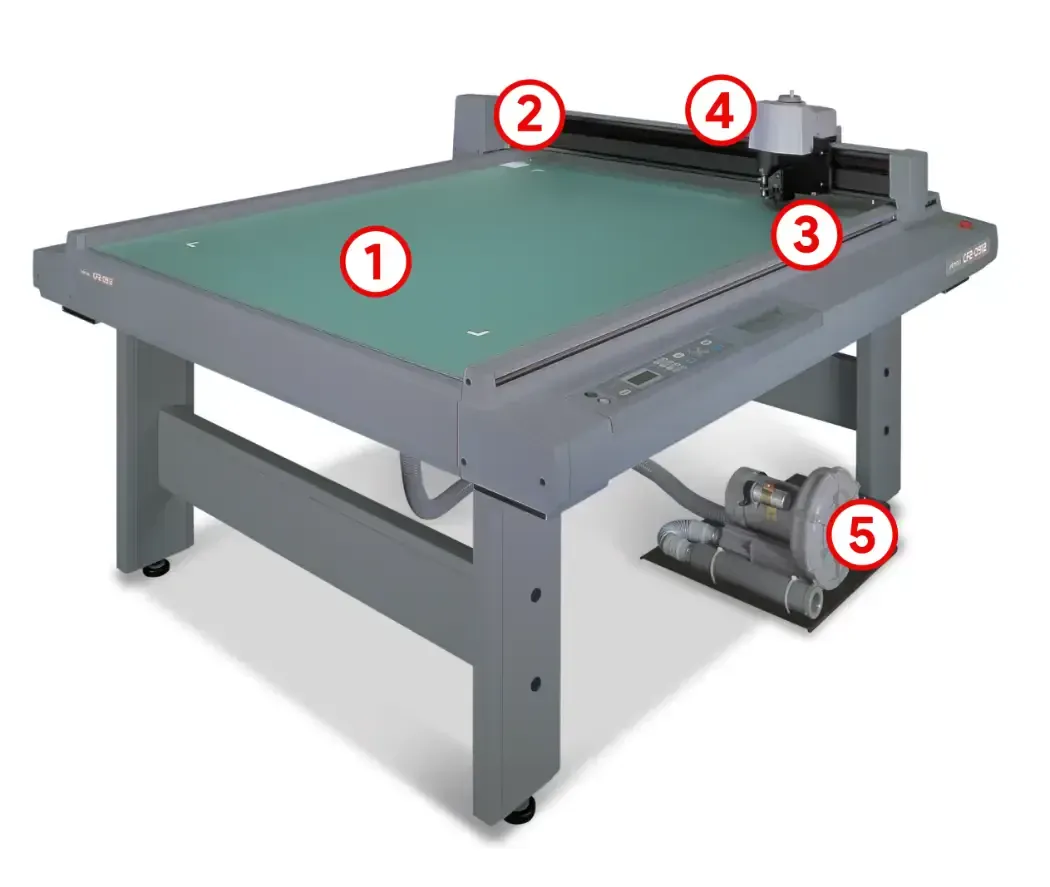

  • Three-station RC head - pen/swivel, reciprocating and high-pressure tangential tools
  • Up to 5,000 g pressure - for thick board, rubber and industrial materials
  • Color photo mark sensor - precise print-and-cut contour alignment
  • 4-axis DC servo drive - X, Y, Z and θ for repeatable ±0.1 mm accuracy
  • Vacuum suction bed - secures media during cutting and creasing
  • Back-side cutting; FineCut9 software

Applications

Packaging & display

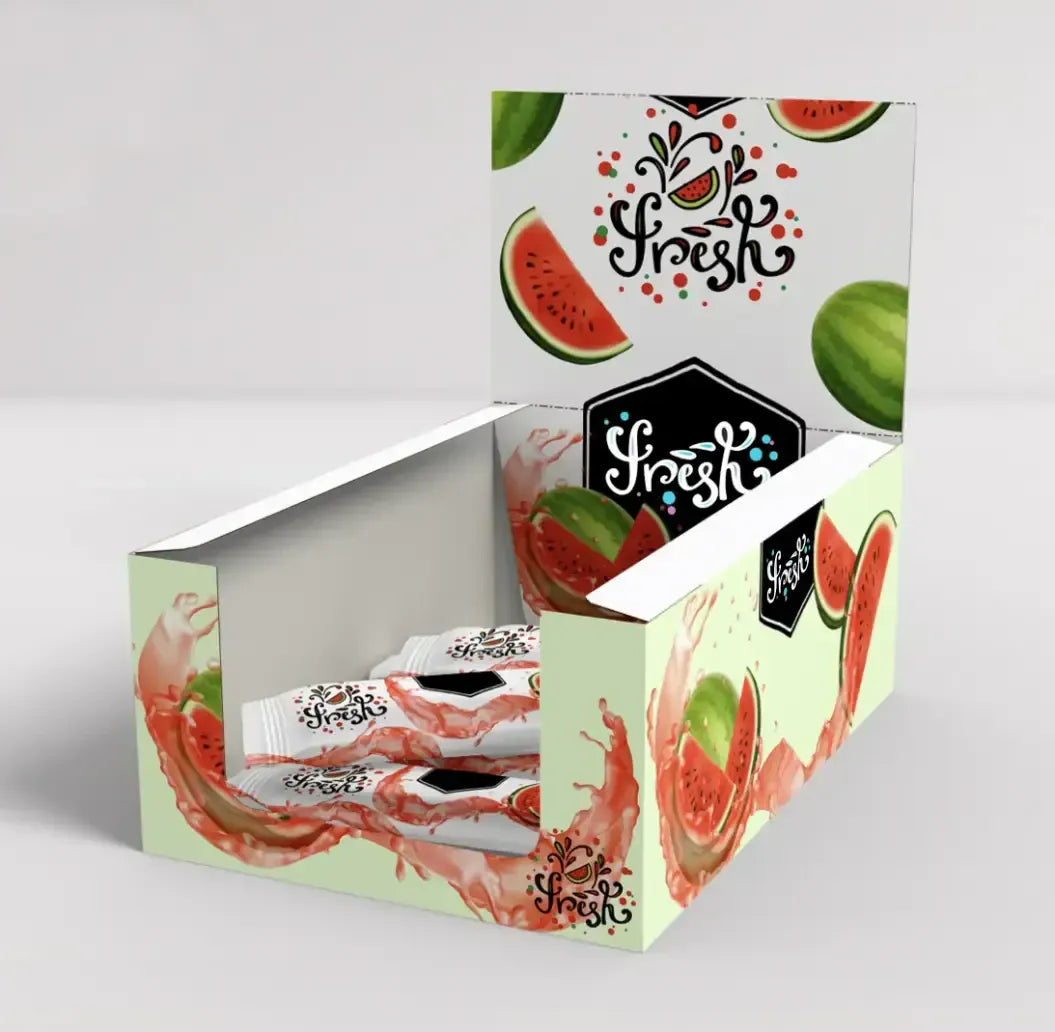

Packaging samples & prototypesCorrugated & folding cartonsPOP displaysRetail & window graphics
Industrial & specialty

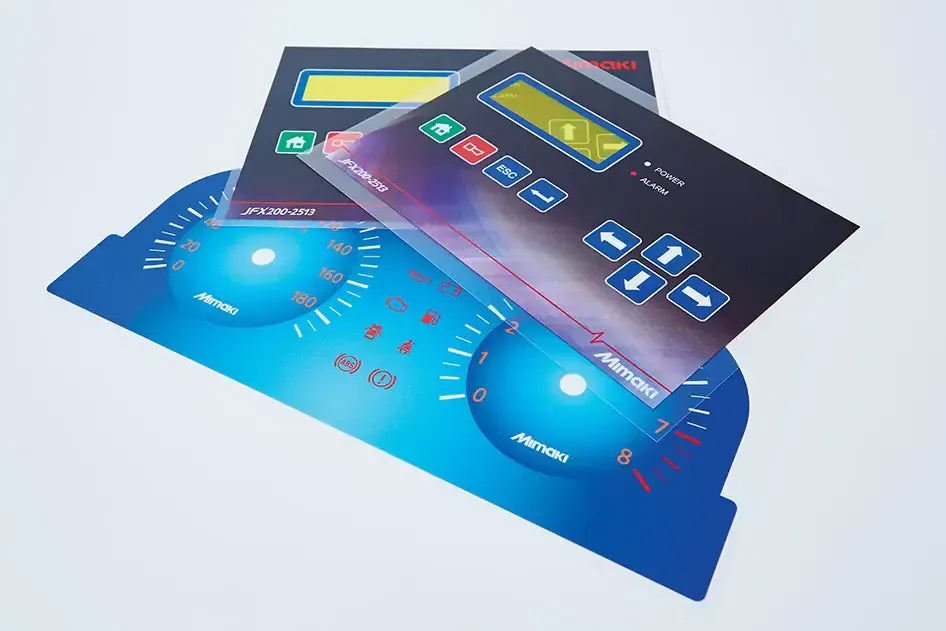

Membrane panels & overlaysIndustrial rubber & gasketsFoam boardReflective sheeting

Specifications

SKU CF2-0912RC-S
Brand Mimaki
Type Flatbed Cutting Plotter
Condition New
Effective Cutting Area 46.1 in x 35.4 in (1,170 mm x 900 mm)
Maximum Media Width 46.06 in (1,170 mm)
Maximum Media Thickness 0.79 in (20 mm)
Tool Stations 3 (RC head)
Supported Tools Pen, eccentric cutter, tangential cutter, reciprocating cutter, creasing roller
Swivel Cutting Pressure 400 g (RC head)
Tangential Cutting 1,000 g - 5,000 g; up to 10 mm thick; multi-pass
Reciprocating Cutting 1,000-7,000 rpm; 2 mm stroke; 1,500 g; up to 10 mm thick
Creasing Roller Pressure 1,000 g - 5,000 g
Vacuum Vacuum bed, 1 zone
Media Registration Optical color photo mark sensor
Repeat Accuracy ±0.1 mm
Drive X, Y, Z, θ 4-axis DC servo
Buffer Memory 27 MB
Interface RS-232C
Software FineCut9
Power Supply AC 100/120/220/240 V (tap changing), 50/60 Hz; 300 W max
Operational Environment 41-104 °F (5-40 °C); humidity 35-75% (non-condensing)
Dimensions (W × D × H) 69.3 in x 63.0 in x 43.3 in (1,760 mm x 1,600 mm x 1,100 mm)
Weight 309 lbs (140 kg)
Included Items Eccentric cutter, ballpoint pen holder, reciprocating cutter 07, tangential cutter 2N, creasing roller CN, creasing plate YN, carbide blades 17° and 30°, HSS 30° blade, 20 mm blade
Certifications VCCI Class A, FCC Class A, CE Marking, CB (EN 60950), UL 60950-1, RoHS, REACH
Warranty 1 year

Questions about fit or availability? Contact the Allprintheads team at +1 657-208-2768 and we'll help you pick the right cutter and tooling for your materials. List price valid in USA; price excludes shipping, installation and training. Ask us about financing.
