Description
About this product

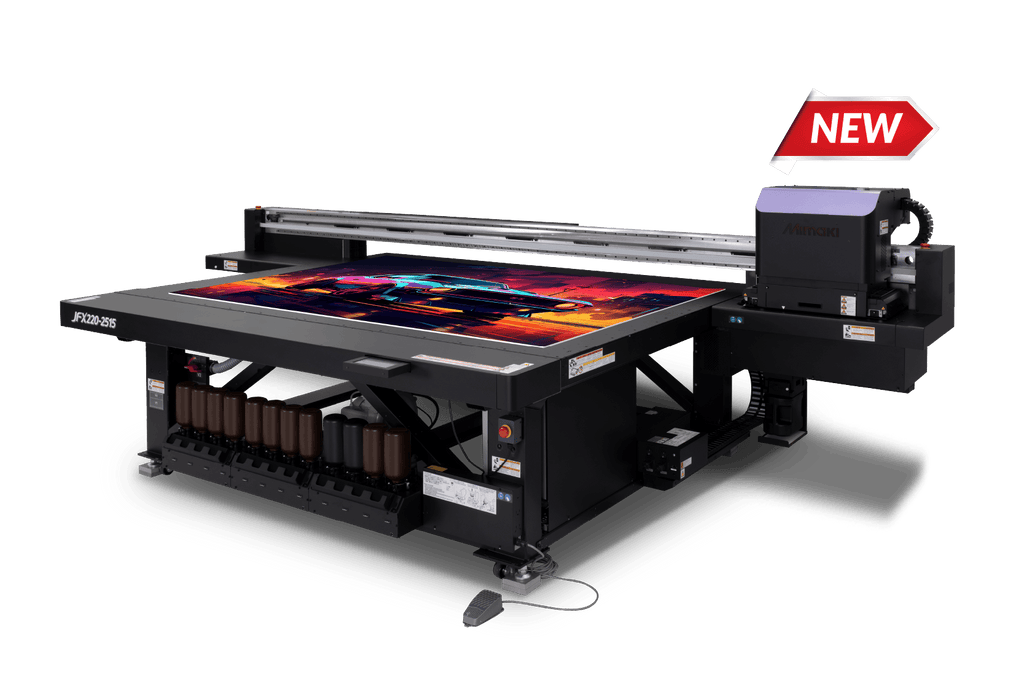

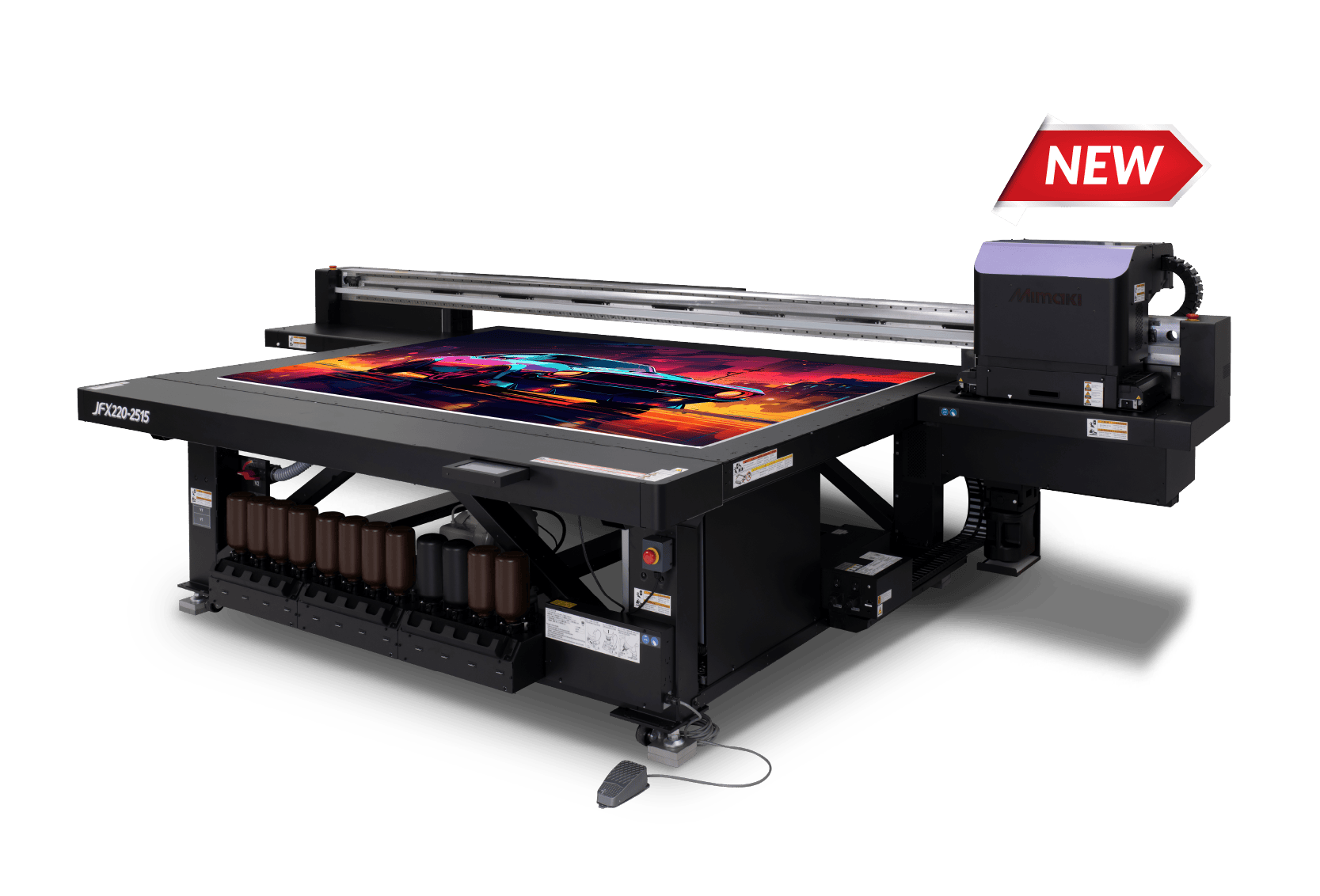

A new standard in UV-LED flatbed printing. The JFX220-2515 is the newest addition to the Mimaki JFX family — a fully redesigned wide-format flatbed, debuted at PRINTING United Expo 2026 and on sale from October 2026, that brings advanced production features into a more accessible class between the JFX200 EX Series and the JFX600 Series. Its expanded 98.4 × 59.1 in (2,500 × 1,500 mm) bed takes a full 4 × 8 ft board plus room for pre-cut pieces, and new ANCHOR TECHNOLOGY suction holds only where the media sits — no masking, even for warped corrugated or acrylic.
Four staggered on-demand piezo heads support a dual-CMYK (4C×2) configuration that reaches up to 602.7 sqft/hr (56 m²/hr) in High-Speed mode — about 17 4×8 boards per hour, roughly twice the speed of ink sets that include white and clear. Mimaki texture workflows add Braille, embossing and 2.5D effects with ink build-up to 5 mm; new eco-friendly inks include fluorescent pink and yellow; and a 4 in (101.6 mm) media clearance plus LD mode (printing up to 20 mm from the head) open dimensional and specialty work on plastics, woods, metals and more.
Key features
- Up to 602.7 sqft/hr (56 m²/hr) in High-Speed mode with the CMYK-only (dual-CMYK) ink set — about 17 4×8 boards per hour.
- ANCHOR TECHNOLOGY self-masking vacuum — 25 mm pitch suction holes grip only the substrate area and hold warped materials, with pop-up edge registration pins for faster setup.
- New UV-LED fluorescent pink and yellow inks (EFS-150) — high-visibility color for retail and event graphics.
- Print on objects up to 4 in (101.6 mm) thick, with LD (Long-Distance) mode printing up to 20 mm from the head for curved or uneven surfaces.
- Advanced texture printing — 2.5D Texture Maker, embossing and Braille with ink build-up to 5 mm.
- Dual ink families — rigid ELH-100 and flexible ELS-120 in C, M, Y, K, Lc, Lm, W, Cl, plus PR-200 jettable primer.
- New full-color control panel and RasterLink8 RIP workflow with automated camera alignment.
Applications
Specifications
| SKU | JFX220-2515 |
| Brand | Mimaki |
| Type | Wide-format UV-LED flatbed inkjet printer |
| Condition | New |
| Printhead | On-demand piezo, 4 heads in a staggered array (dual-CMYK capable); variable dot, minimum 7 pl |
| Print resolution | X: 300, 450, 600, 900, 1,200 dpi | Y: 300, 600, 1,200 dpi |
| Print speed | Up to 602.7 sqft/hr (56 m²/hr) in High-Speed mode, CMYK-only ink set (approx. 17 4×8 boards/hr); approx. 2× the speed of ink sets with white/clear |
| Head gap | 1.2–3 mm; LD (Long-Distance) mode prints up to 20 mm (0.79 in) from the surface |
| Maximum print area (W × D) | 98.4 × 59.1 in (2,500 × 1,500 mm) |
| Maximum media size (W × D) | 98.4 × 76.0 in (2,500 × 1,930 mm) |
| Maximum media thickness | 4.0 in (101.6 mm) |
| Maximum media weight | 10.2 lb/sqft (50 kg/m²) or less, non-concentrated load |
| Media hold-down | ANCHOR TECHNOLOGY self-masking vacuum — 25 mm (1 in) pitch suction holes, 2 vacuum zones, in-table pop-up edge registration pins |
| Texture printing | UV ink build-up to 5 mm — 2.5D Texture Maker, emboss and Braille |
| UV curing | LED-UV system, 2 curing units, air-cooled |
| Ink | Rigid ELH-100 (C, M, Y, K, Lc, Lm, W, Cl) | Flexible ELS-120 (C, M, Y, K, Lc, Lm, W, Cl) | Fluorescent EFS-150 (Fp, Fy — used with ELH-100 or ELS-120) | PR-200 jettable primer |
| Ink capacity | 1 L bottle (ELH-100, ELS-120, EFS-150, PR-200); 250 ml bottle (ELH-100, ELS-120, PR-200) |
| Interface | Ethernet 1000BASE-T |
| Power supply | 2 lines: single-phase AC 200–240 V ±10%, 12 A or less; single-phase AC 200–240 V ±10%, 10 A or less |
| Power consumption | INLET1: 2.88 kVA or less; INLET2: 2.33 kVA or less |
| Operating environment | 68–86 °F (20–30 °C), 35–65% RH non-condensing; best accuracy at 68–77 °F (20–25 °C) |
| Dimensions (W × D × H) | 173.2 × 99.2 × 58.7 in (4,400 × 2,520 × 1,490 mm) |
| Weight | 2,028 lb (920 kg) |
| Options | OPT-J0216 Vacuum Unit (3-phase 200–240 V, 30 A, 3.4 kW); OPT-J0217 Vacuum Unit (single-phase 200–240 V, 30 A, 1.9 kW); OPT-J0232 Vacuum Unit (3-phase 380–480 V, 20 A, 3.4 kW); OPT-J0570 OP Blower Unit Connection Kit; OPT-01041 Patlite Signal Tower; OPT-01047 Ionizer unit x2; OPT-01048 Ionizer mounting bracket (for JFX220) |
| Certifications | VCCI Class A, FCC Class A, ETL (IEC 62368-1), CE (EMC, Low Voltage, Machinery, RoHS), CB, REACH, RCM, KC, UKCA |
Specifications per Mimaki; actual throughput varies with RIP, file size, resolution and ink coverage. List price valid in USA and Canada; price excludes ink, vacuum unit, shipping, installation and training. Ask us about financing and Printing United launch pricing. Questions about configuration, inks or availability? Contact the Allprintheads team at +1 657-208-2768 and we'll help you spec the right setup before you order.
