Mimaki JFX600-2513

Sale price$242,545.00 USD
When product is not in stock, usually the time to process is 5-7 days.


Blazing Speed, High Definition

The Mimaki JFX600-2513 UV-LED flatbed printer is the fastest model in the world’s best-selling JFX Series line. Productivity has never looked better. This state-of-the-art printer is designed for high accuracy, image quality, and blazing speed.

  • 16 Printheads
  • 330% faster than the previous model (JFX500-2131) by installing significantly more printheads.
  • Print speeds up to 2,152 square feet per hour
    • Equivalent to 67 boards per hour
  • Six colors, including LC and LM, are available for rich color expression.
  • On-machine job and maintenance control via Mimaki Print Controller (MPC)
  • Industry-leading Mimaki Core Technologies.
  • The print area of 98.425” x 51.181”; up to 2.362” thick.
  • Production workflow ready with MDL support.
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks.
  • Compact design.


Our Core Technologies

img  Variable Dot Technology
img Mimaki Advanced Pass System
img Nozzle Recovery System
img Mimaki Bulk Ink System
img Mimaki Circulation Technology
img Mimaki Fine Diffusion
img Waveform Control
indicatior dashboard
airport signage displaying gates for flights
custom made summer sale point of purchase wobbler

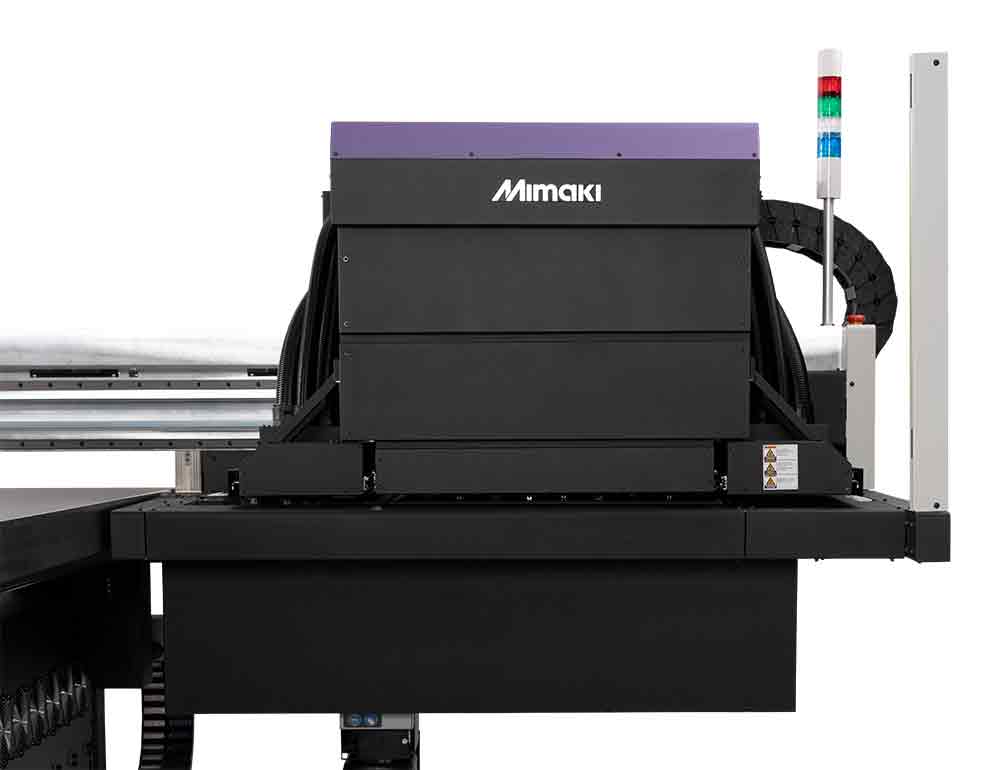

Sixteen on-demand piezo heads in a staggered array

Print Resolutions

600 x 600dpi, 600 x 1,200dpi, 1,200 x 1,200dpi

Print Speed (4 Color Mode)

up to 2,152.78 SqFt/Hr (200.0 m2/h)

Maximum Print Area

98.43″ x 51.18″ (2,500 x 1,300 mm)

Maximum media width

98.43″ (2500 mm)

Maximum Media Thickness

up to 2.36″ (60 mm)

Maximum Media Weight

110.2 lbs. (50kg/m²)

Ink Type

U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150


Ethernet 10,000 BASE-T

Power Supply

AC 200 – 240 V, 50/60 Hz

Power Consumption

x3 AC200-240±10% ~16kVA 50/60Hz±1Hz

Operational Environment

Temperature 68° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

207.48″ x 110.24″ x 62.99″ (5,300×2,850×1,700mm)


2, 645.5 lbs. (1,200 kg)


UL 775 ETL, CE Marking (EMC Directive,Low Voltage Directive, Machinery Directive), RoHS / REACH / EAC




LH-100 UV curable ink Cyan Magenta Yellow Black White Clear Primer
1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-CL-BA


UV curable ink (LUS-120) Cyan Magenta Yellow Black Light Cyan Light Magenta White Clear


UV curable ink (LUS-150) Cyan Magenta Yellow Black White Clear Primer
1L Bottle LUS15-C-BA LUS15-M-BA LUS15-Y-BA LUS15-K-BA LUS15-W-BA (Use LH-100)


UV Primer (PR-200) Primer
1L Bottle PR200-Z-BA
