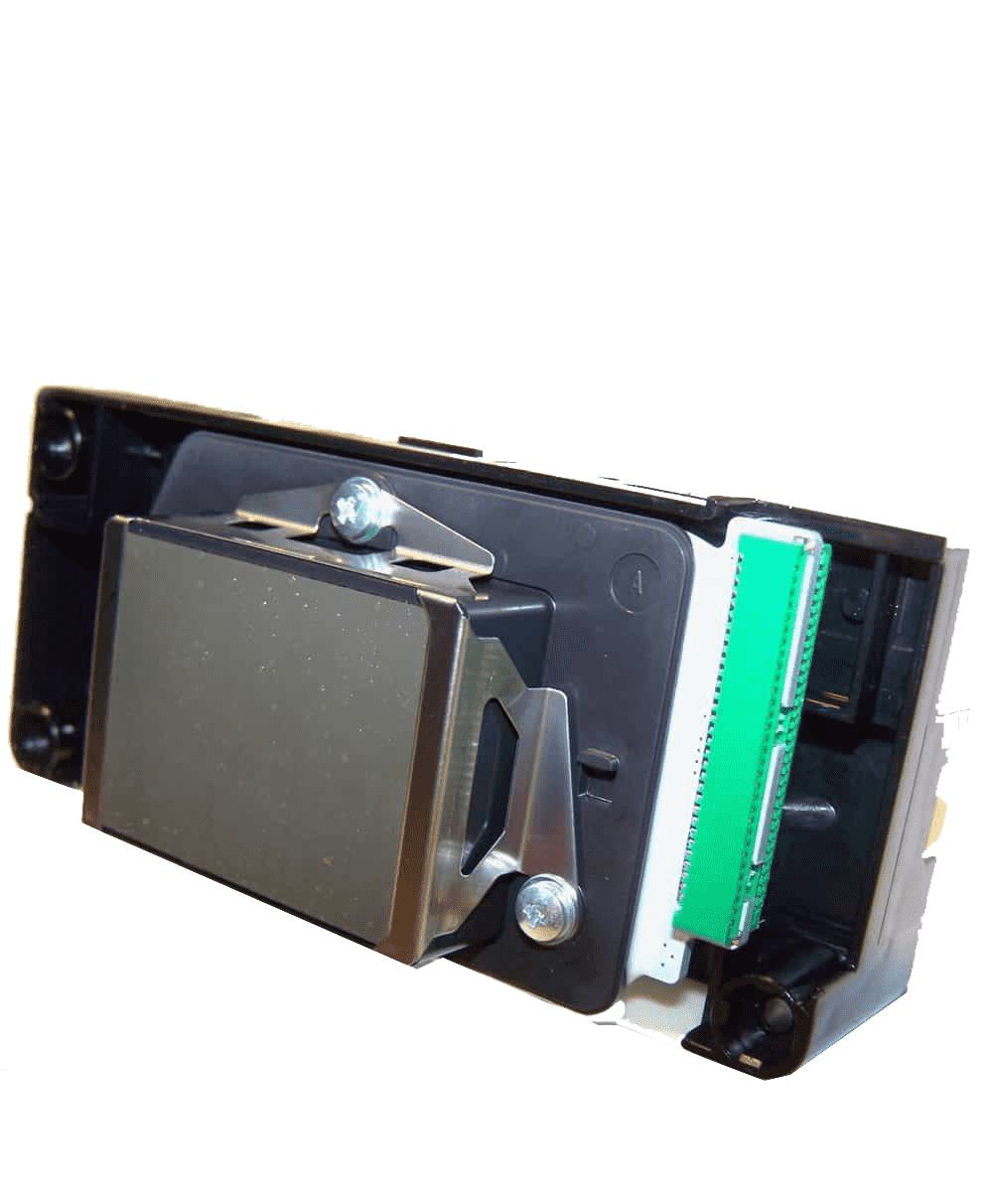

This complete original Mimaki JV33/JV5 printhead is suitable for the Mimaki solvent printer series. The Mimaki JV33/JV5 printhead has a native resolution of 1440 dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.
The Mimaki JV33/JV5 printhead is either used in 4-colors or 6-colors and has a minimum, variable droplet size of 1.5 picolitres (max. droplet size is 21 picolitre). The typical firing frequency for this printhead is 8 kHz.
It is a new generation print head that allows fast speed, high-resolution printing with eco-solvent and mild solvent inks. The original and complete Mimaki JV33/JV5 printhead are delivered in a sealed Mimaki package, with the Head ID. Mimaki part number for this printhead is M007947.
M007947 Product Specifications
- Technology: Micro-Piezo
- Native resolution: 1440 dpi
- Min. Droplet Size: 1.5 picolitre
- Max. Droplet Size: 21 picolitre
- Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
- Firing Frequency: 8 kHz
- Ink Compatibility: eco-solvent and mild solvent
It is highly recommended to replace the head cables together with a new printhead.
COMPATIBLE PRINTERS :
Note: check other boards & cables for damage before installing any print head. If these other items are damaged, they may damage a new print head. Consult your service manual for further information.
