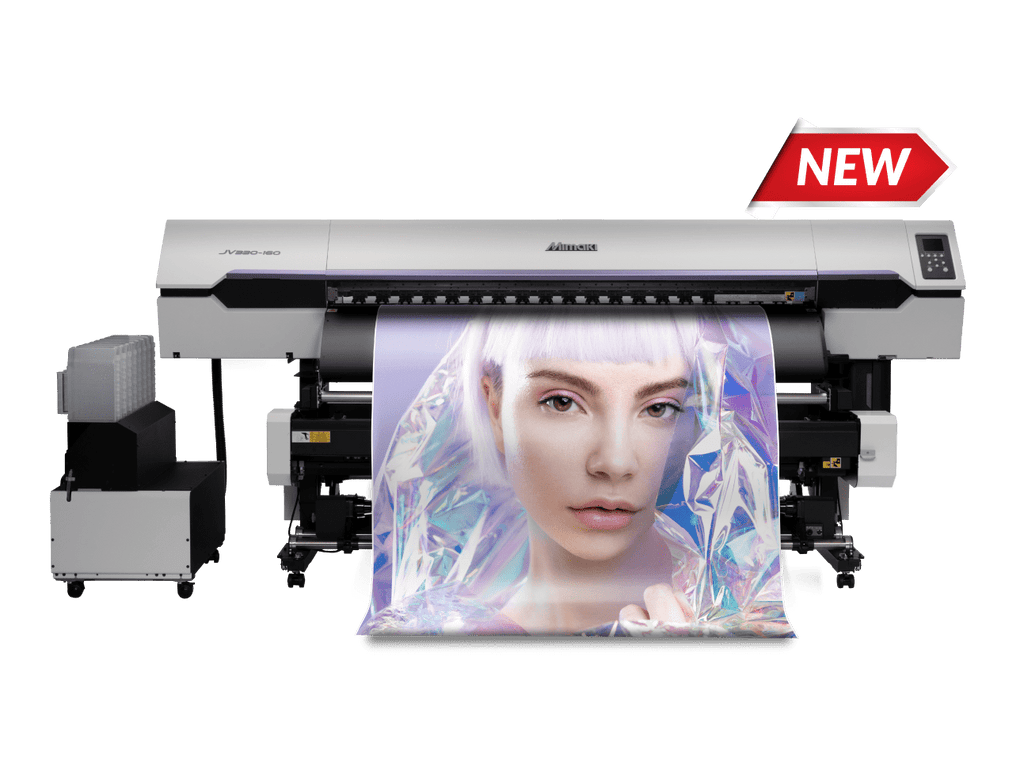

Mimaki JV330 Series Printers


Price:
Sale price$27,495.00 USD
When product is not in stock, usually the time to process is 5-7 days.

Description

Commercial Printing Capabilities

This printer is compatible with Mimaki Original Eco-Solvent inks and offers commercial-level workflows and quality for high-demand print businesses. Capable of producing a wide range of sign & graphic applications, including durable banners, signs, posters, and more for internal and external use.

  • Multiple media role-handling unit
  • Integrated XY Slitter
  • In machine lighting
  • V-shaped cut function
  • Mimaki Remote Access
  • Two staggered heads (6400 nozzles)




Our Core Technologies




Uninterrupted Ink Supply System (UISS)




Variable Dot Technology




Mimaki Bulk Ink System (MBIS)




Mimaki Intelligent Heaters (MIH)




Mimaki Advanced Pass System (MAPS)





Applications

black friday
application signboard



SPECIFICATIONS



Printhead

On-demand piezo head (2 staggered printheads)

Print Resolutions

600dpi, 800 dpi, 900dpi, 1200dpi

Print Speed (4 Color Mode)

up to 1076.4 SqFt/Hr (100.00 m2/h)

Maximum Print Area

53.5″ (1360 mm) | 63.4″ (1610 mm)

Maximum media width

53.9″ (1370 mm) | 63.8″ (1620 mm)

Maximum Media Thickness

up to 0.04″ (1.0 mm)

Maximum Media Weight

One roll: Max. 45 kg (99.2 lb.) or less
Three rolls: Total 90 kg (198.4 lb) or less

Ink Type

Eco-solvent ink
SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W)
BS4 (C, M, Y, K)

Interface

Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed

Power Supply

Main unit:(Single phase AC100-120/200-240V±10%, 50/60Hz±1Hz) ×2

Power Consumption

Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode)

Operational Environment

Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level

Dimensions (W × D × H)

2,920 × 1,215 × 1,305 mm (115.0 x 47.8 x 51.4″) |

3,170 × 1,215 × 1,305 mm (124.8 x 47.8 x 51.4″)

Weight

789.2 lbs. (358 kg)

Certifications

VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA, GREENGUARD Gold Certificate No. 67174-420





Solvent Ink (SS21) Cyan Magenta Yellow Black Light Cyan Light Magenta Orange Light Black White (500mL)
2L Ink Pack SPC-0588C SPC-0588M SPC-0588Y SPC-0588K SPC-0588LC SPC-0588LM SPC-0588OR SPC-0588LK SS21-W-50
