Mimaki TS330-1600 Printer

Save 11%

Price:
Sale price$24,495.00 USD Regular price$27,495.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Mimaki • Dye-Sublimation Textile Printer

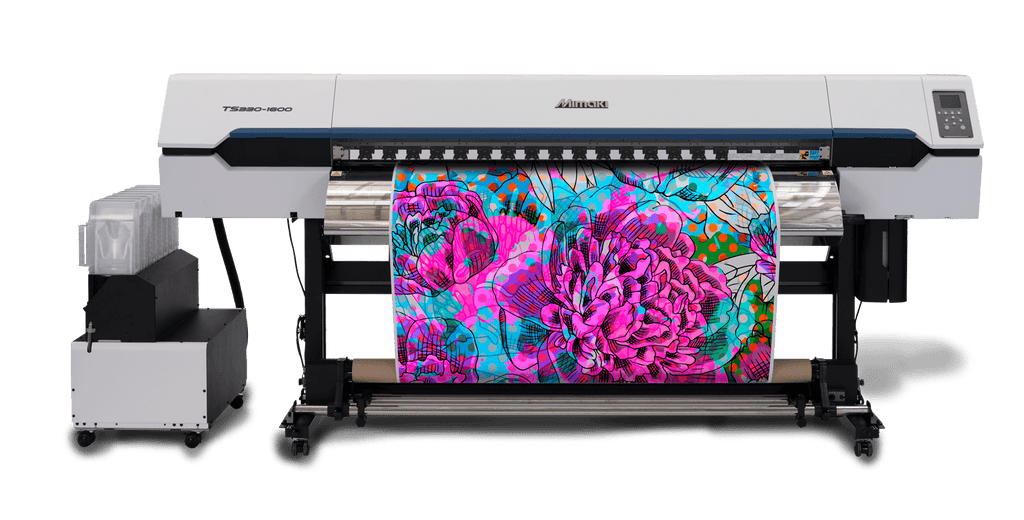

Mimaki TS330-1600 Printer
SKU: TS3301600

About this product

The Mimaki TS330-1600 is the flagship 1.6 m (63.4") dye-sublimation transfer inkjet printer in Mimaki's 330 generation. Running eco-friendly, water-based Sb411 sublimation ink — with an expanded color range that includes light colors, violet, orange and enhanced fluorescent pink and yellow — it delivers superior image quality at production speeds up to 1,453 sqft/hr (135 m²/hr), regardless of printing volume. Mimaki Weaving Dot Technology (MWDT) changes ink-drop placement order to adapt to printing conditions for consistent quality and reduced downtime.

To help reduce operating costs, a 10 kg ink tank is included, working alongside 2 L ink packs through the Uninterrupted Ink Supply System (UISS). RasterLink7 RIP software is included, with Mimaki's TxLink textile RIP available for special-color process printing — a complete production package for apparel, soft signage and interior fabrics.

Key features

  • Up to 1,453 sqft/hr (135 m²/hr) in 4-color maximum-speed mode, 69 m²/hr in draft mode and 21 m²/hr in high-quality mode.
  • 330 print engine — dual on-demand piezo printheads in staggered layout, printing at 300 / 600 / 900 / 1,200 dpi.
  • Mimaki Weaving Dot Technology (MWDT) compensates for head variation and optimizes firing order for accurate ink landing and consistent quality.
  • MAPS4 (Mimaki Advanced Pass System) automatically selects print patterns to suppress banding and color unevenness.
  • NCU / NRS nozzle safeguards detect and clean clogged nozzles automatically, and substitute working nozzles so production keeps running.
  • DAS (Dot Adjustment System) automatically adjusts dot placement and media feed for each media and condition.
  • Sb411 sublimation ink in 4- to 8-color sets (Bl, M, Y, K, Lbl, Lm, Lk, Vi, Or, Fp, Fy) — fluorescent pink and yellow for vivid sportswear and fashion output.
  • 10 kg ink tank + 2 L packs (UISS) for low running cost and uninterrupted long runs, plus auto media cutting (V-shaped or straight).

Applications

Textile & apparel
Sports apparelFashion textilesInterior décor fabricsCustom garments
Soft signage
Fabric bannersFlagsPOP displays

Specifications

SKU TS3301600
Brand Mimaki
Type Dye-sublimation transfer inkjet printer
Condition New
Printhead On-demand piezo printheads, 2 staggered layout
Print resolution 300 / 600 / 900 / 1,200 dpi
Print speed Max (4-color): 1,453.1 sqft/hr (135 m²/hr)  |  Draft: 69 m²/hr  |  High quality: 21 m²/hr
Head gap 3 levels, manually set: 3.0 / 3.5 / 4.0 mm
Ink Mimaki Sb411 dye-sublimation ink (Bl, M, Y, K, Lbl, Lm, Lk, Vi, Or, Fp, Fy); Sb410 fluorescent (Fp, Fy)
Ink supply 2 L ink packs or 10 kg ink tank (included); light and special colors in 2 L packs, usable alongside the 10 kg tanks (UISS)
Maximum print width 63.4 in (1,610 mm)
Maximum media width 63.8 in (1,620 mm)
Media thickness Up to 0.04 in (1.0 mm)
Roll media Outside diameter up to 9.8 in (250 mm), 2 in / 3 in core, roll weight up to 99.2 lb (45 kg)
Media cutting Auto cutting by head-unit cutter — V-shaped or straight cut
RIP software RasterLink7 (included); TxLink textile RIP available
Interface Ethernet 1000BASE-T / USB 2.0 Hi-Speed
Power supply Single-phase AC 100–120 V / 200–240 V ±10%, 50/60 Hz
Power consumption 1,440 W max (800 W standard operation)
Operating environment 68–86 °F (20–30 °C), 35–65% RH non-condensing
Dimensions (W × D × H) 124.8 × 32.3 × 51.4 in (3,170 × 820 × 1,305 mm)
Weight 529.1 lb (240 kg)
Certifications VCCI Class A, FCC Class A, ETL (IEC 62368-1), CE (EMC, Low Voltage, Machinery, RoHS), CB, REACH, Energy Star, RCM, KC, UKCA

See it in action

Mimaki TS330-1600 sublimation transfer inkjet printer overview
How to set media
How to set the 2L ink pack
Ink maintenance

Specifications per Mimaki; actual throughput varies with RIP, file size, resolution and ink coverage. Questions about configuration, inks or availability? Contact the Allprintheads team at +1 657-208-2768 and we'll help you spec the right setup before you order.
