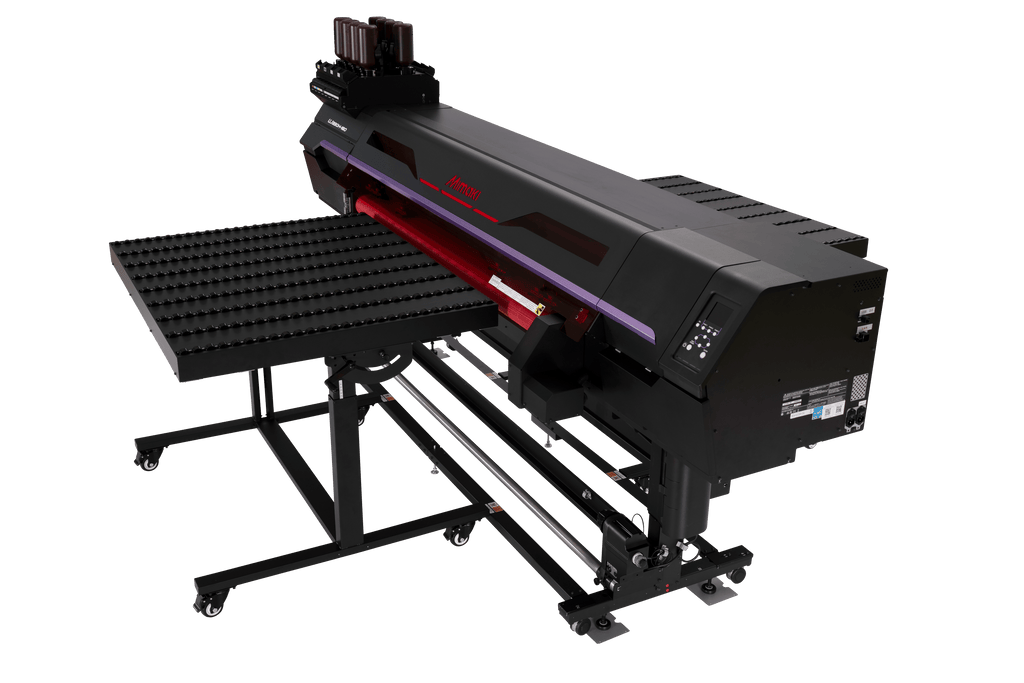

Mimaki UJ330H-160 Hybrid UV Printer


Price:
Sale price$41,381.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Mimaki • Hybrid UV Printer

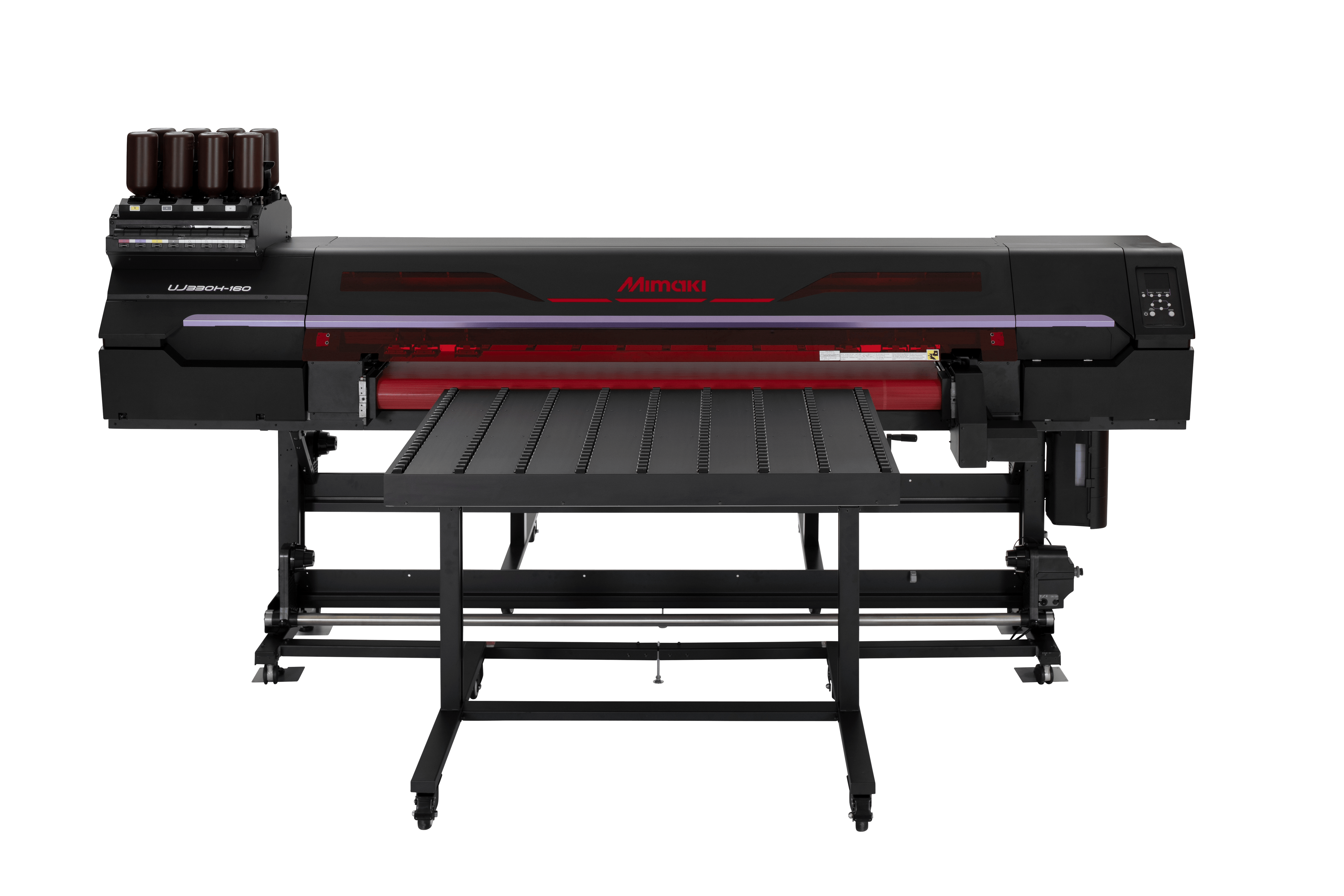

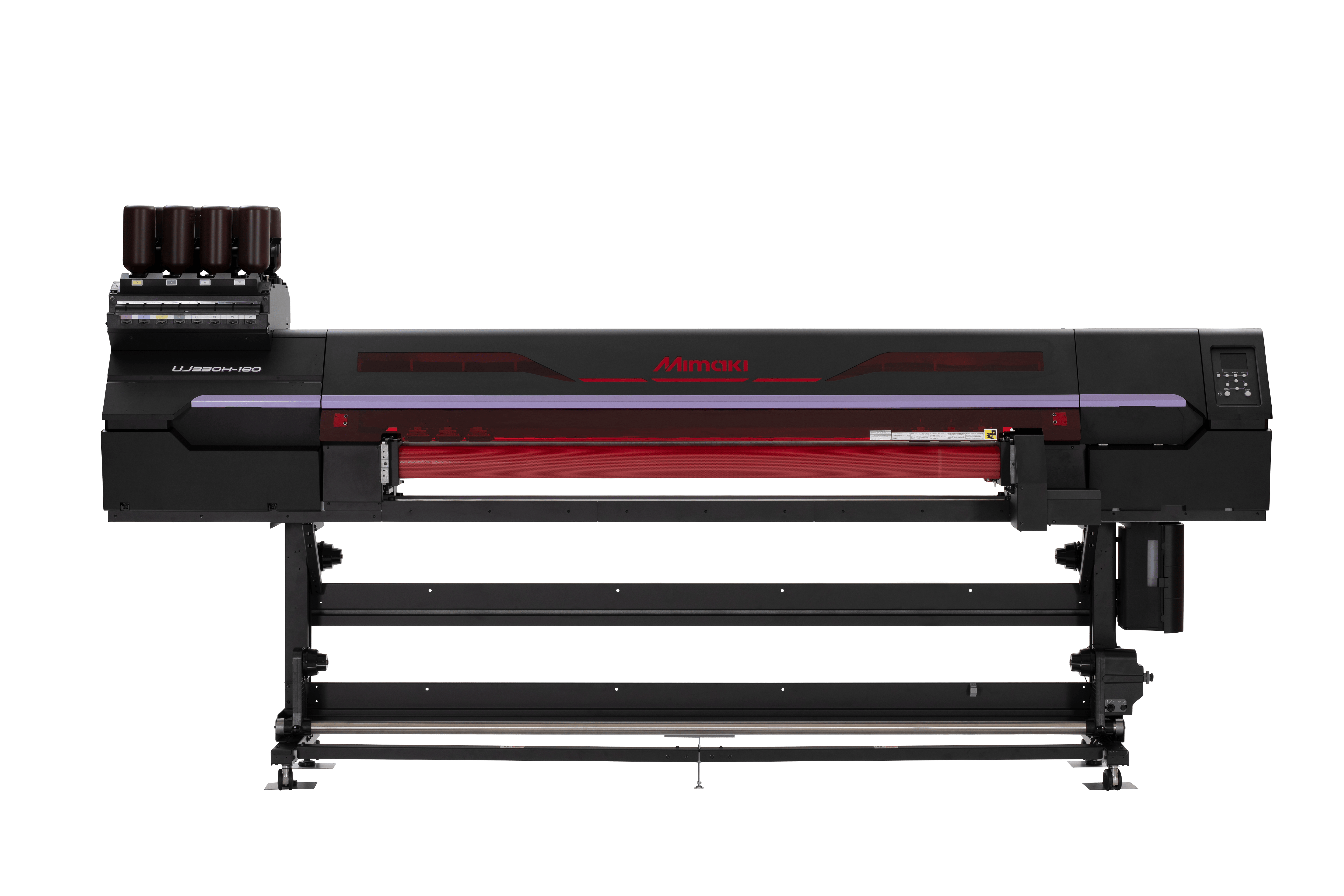

Mimaki UJ330H-160 Hybrid UV Printer
SKU: UJ330H-160

About this product

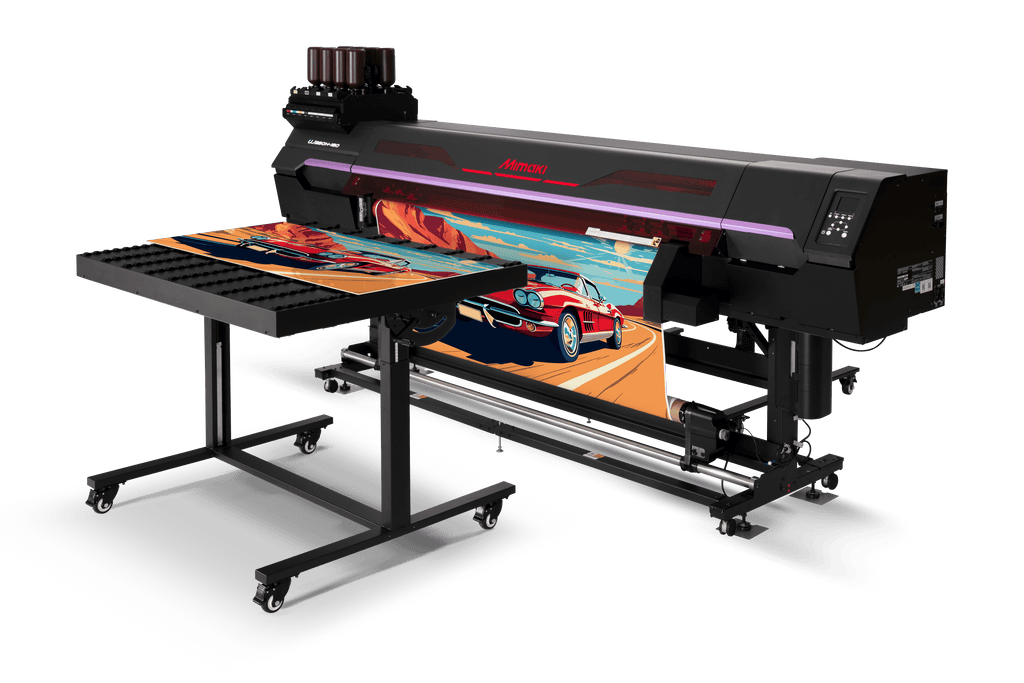

The Mimaki UJ330H-160 is a true hybrid UV-LED printer: one machine prints both roll media up to 64" wide and rigid boards up to 4 ft × 11 ft and 2" thick. Its "UV × 3-Way Conveyor System" — a newly developed belt conveyor — moves boards, roll media and even thin films and fabrics with minimal warping or deformation, while auto-vacuum hold-down and front/rear lock rollers keep rigid media perfectly registered. Two staggered printheads with four print bars each deliver up to 236.8 sqft/h (22 m²/h) in 4-color mode, with practical productivity of 14 m²/h in 6-color white/clear configurations.

White and clear inks enable up to 5-layer printing, gloss and matte finishes and textured embossing effects, and Mimaki's LamiFit technology solves the board-lamination "silvering" problem: it fills the blank areas of a print with clear ink so the media topography stays level, eliminating trapped air bubbles during lamination. The low-odor UV ink (about 30% less odor than before) is SVHC-free and CMR-free.

Key features

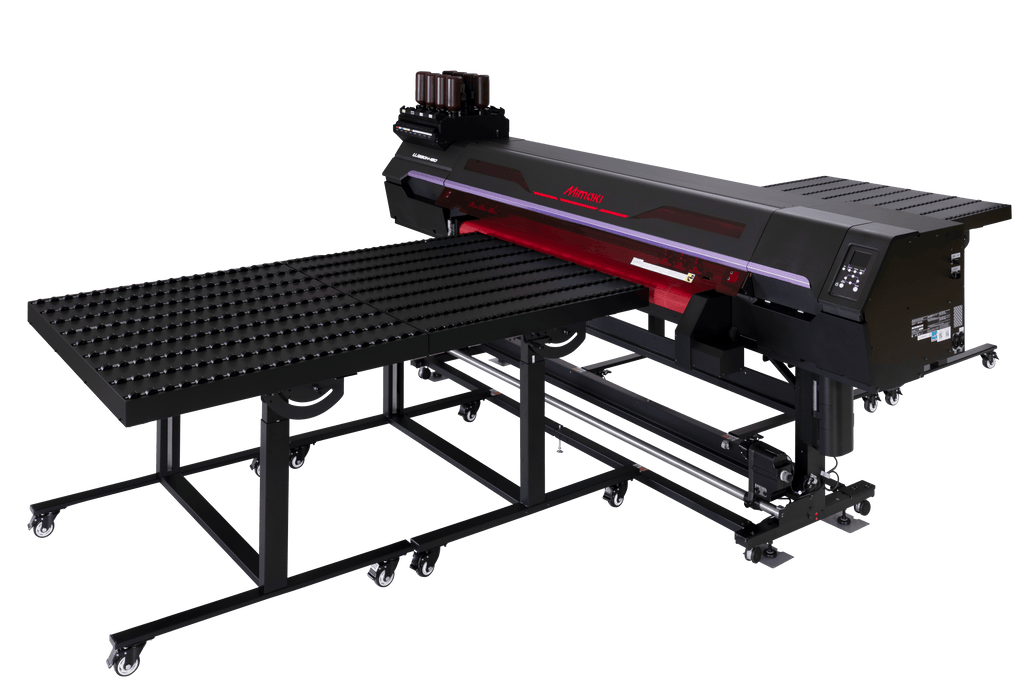

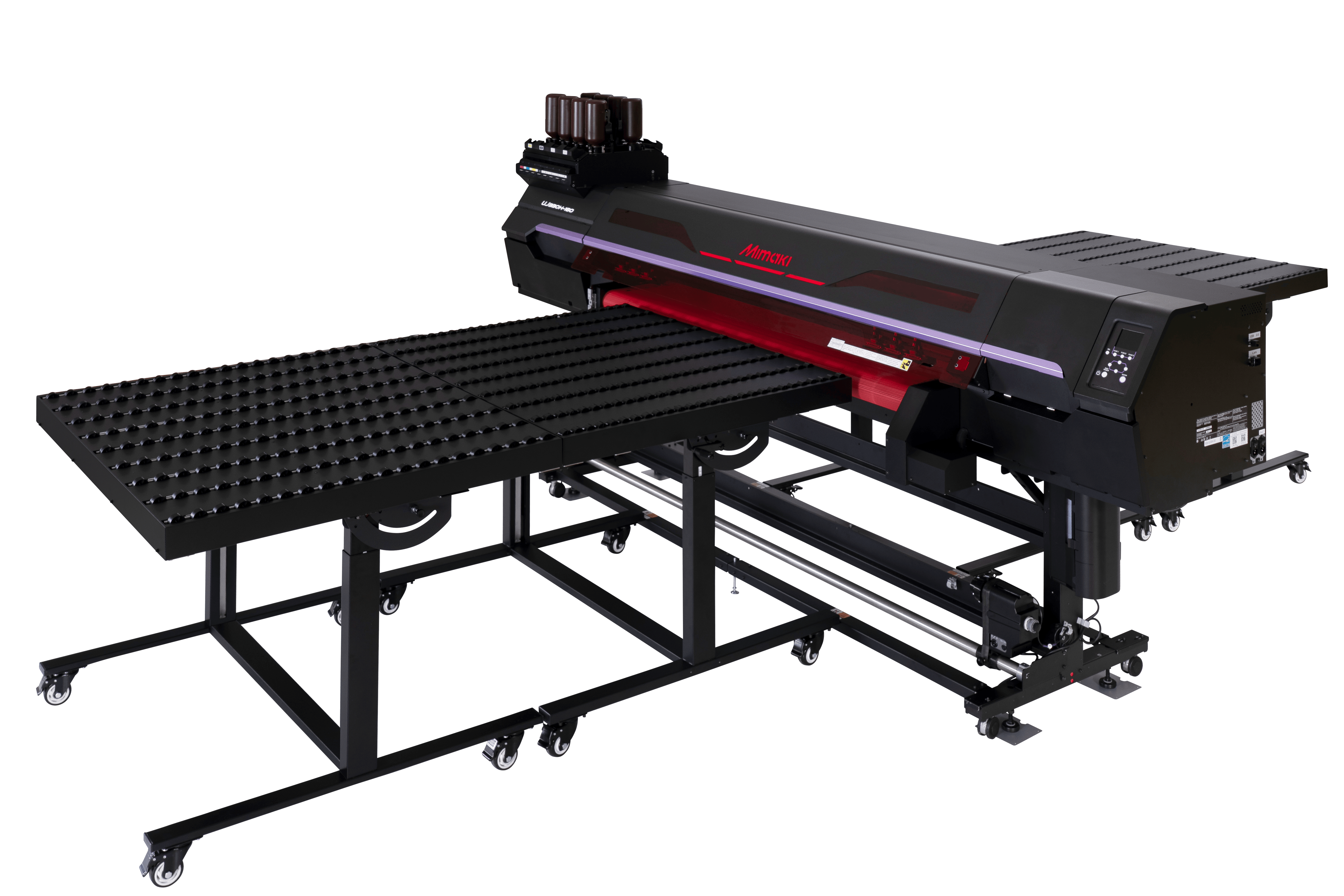

  • Roll + rigid in one printer — 64" roll media and rigid boards up to 4 ft × 11 ft, 2 in (50 mm) thick, 55 lb (25 kg).
  • Up to 236.8 sqft/h (22 m²/h) in 4-color mode; practical productivity of 14 m²/h with CMYK+W+Cl or CMYK+LcLm+W ink sets.
  • Two staggered printheads, 4 print bars per head — Y: 600/1,200 dpi × X: 600/900/1,200/1,800 dpi.
  • LamiFit technology — clear ink fills non-printed areas to keep the surface level, negating trapped air bubbles ("silvering") when laminating boards.

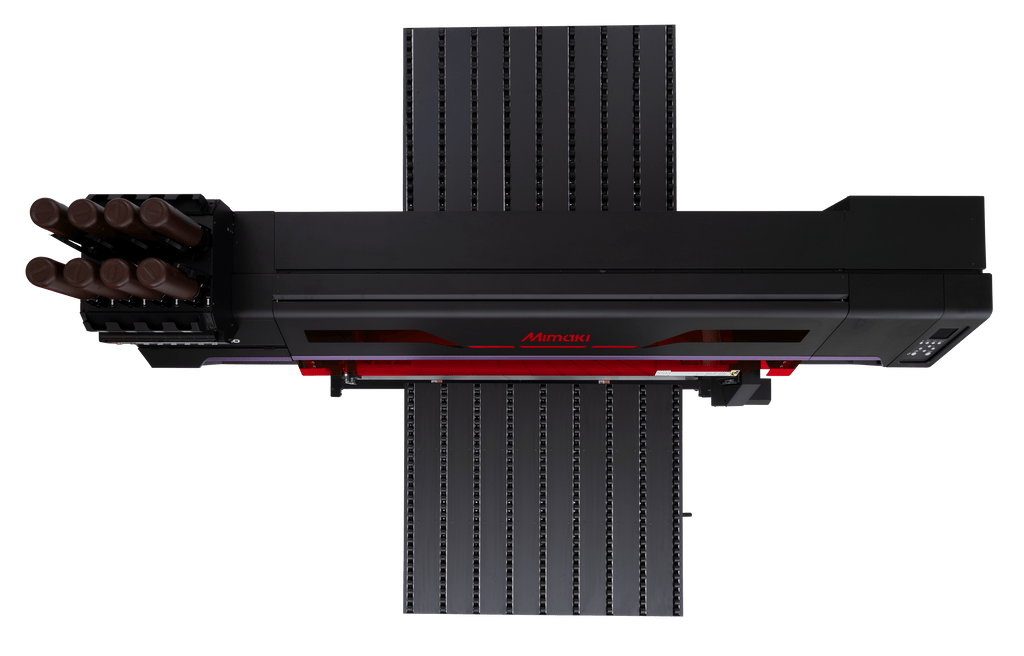

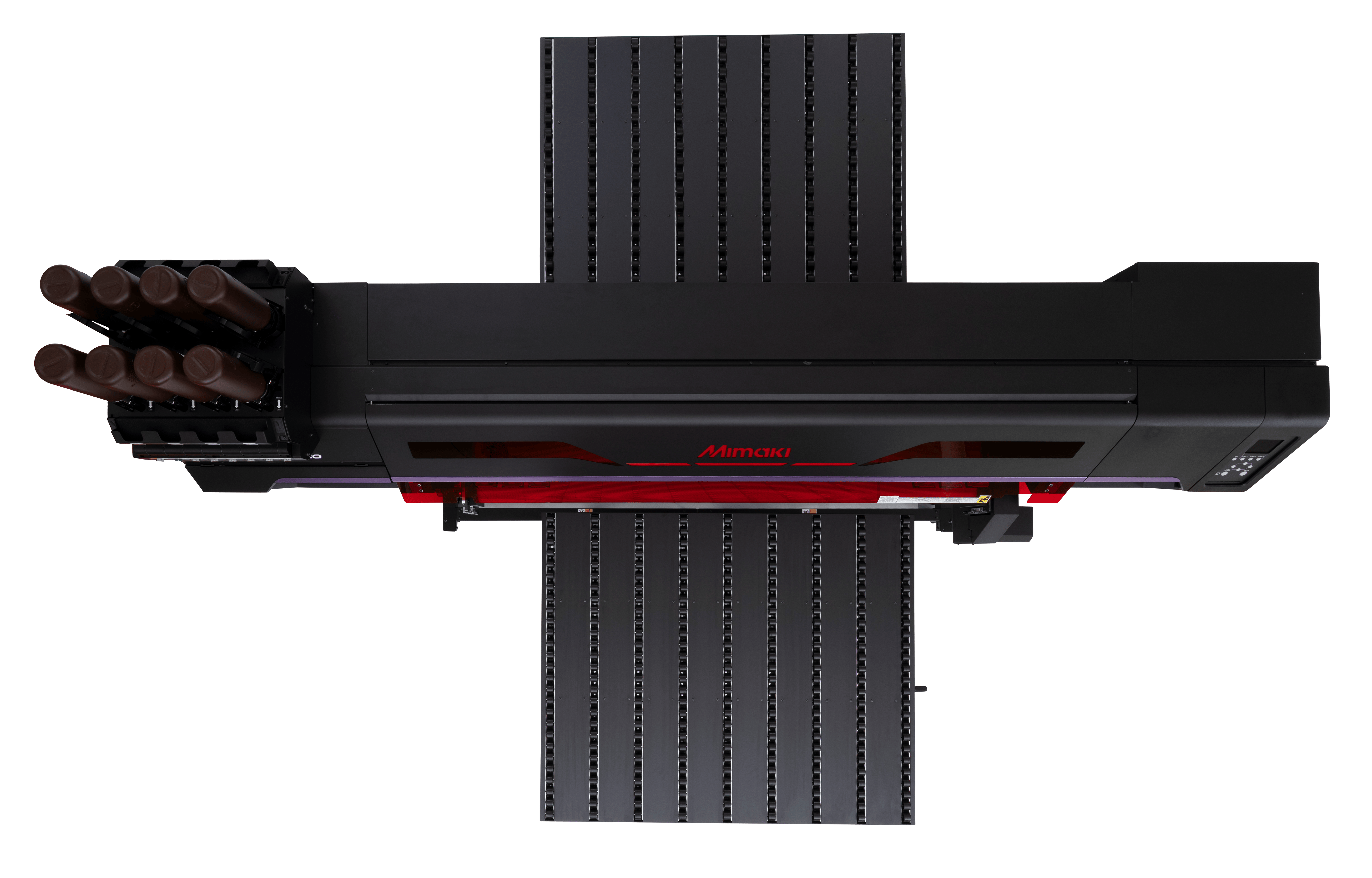

  • UV × 3-Way Conveyor System — belt transport reduces warping and handles thin films and fabrics as well as boards.
  • White + clear ink creativity — up to 5-layer printing, gloss/matte finishes and textured embossing effects.
  • Low-odor ELS-170 UV ink (ELS-175 LATAM, LUS-210 select countries), approx. 30% less odor, SVHC- and CMR-free, in 1L bottles.
  • Automatic adjustment functions for consistent image quality without specialist operators.

Applications

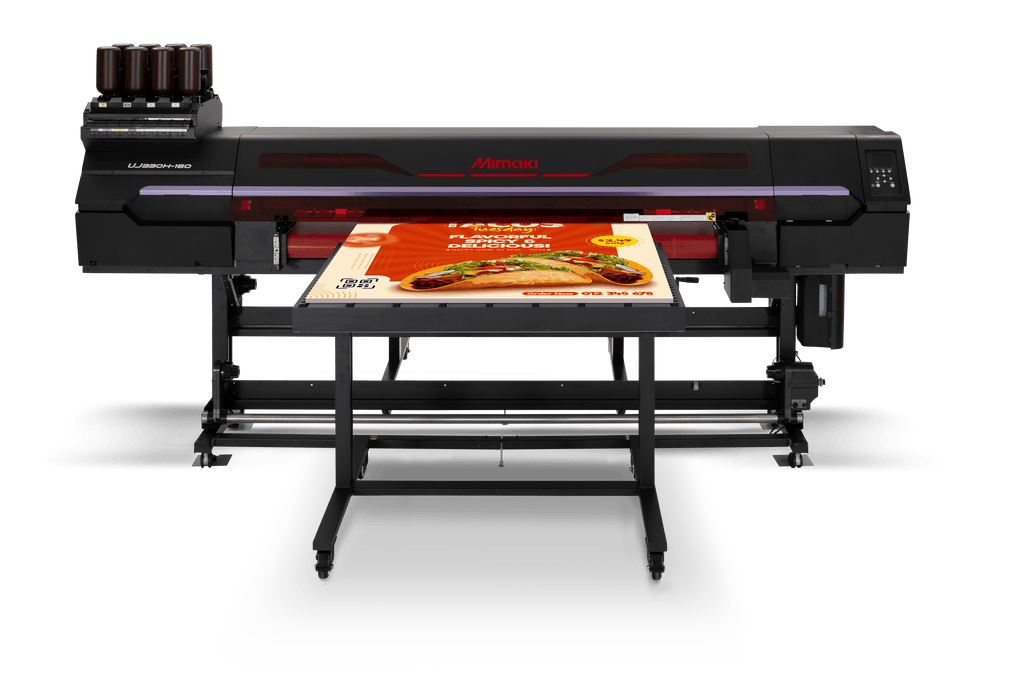

Rigid & board
Outdoor & illuminated signboardsPOS / POP displaysGuide platesFloor signsWedding & event boards
Roll & flexible
BannersPostersWindow graphicsFabric banners & flagsWallpaperVehicle wrapping

Specifications

SKU UJ330H-160
Brand Mimaki
Type Hybrid UV-LED inkjet printer (roll-to-roll + rigid board)
Condition New
Printhead 2 printheads (staggered), 4 print bars per head
Print resolution Y: 600 / 1,200 dpi  |  X: 600 / 900 / 1,200 / 1,800 dpi
Print speed Up to 236.8 sqft/h (22.0 m²/h) in 4-color mode; practical productivity 14.0 m²/h with CMYK+W+Cl / CMYK+LcLm+W sets
LamiFit technology Fills blank areas of the print with clear ink to keep the media topography level, negating trapped air bubbles ("silvering") during board lamination
Ink UV-curable ELS-170 / ELS-175 (LATAM) — sets: CMYK; CMYK + Cl + W,W; CMYK + Lc,Lm + W,W. LUS-210 (select countries): CCMMYYKK / CCMMYK + W,W
Ink supply 1L bottles
Maximum print width (roll) 64 in (1,610 mm)
Maximum print area (rigid) 4 ft × 11 ft boards
Rigid media Thickness up to 2 in (50 mm), weight up to 55 lb (25 kg); roller tables sold separately
Roll media Roll weight up to 99 lb (45 kg)
Media transport UV × 3-Way belt conveyor system with auto-vacuum and front/rear lock rollers
Interface Ethernet 1000BASE-T (recommended) / USB 2.0 Hi-Speed
Power supply AC 100–120 V / AC 200–240 V ±10%, 50/60 Hz (×2 inlets)
Power consumption 1,600 W max (800 W average in operation, 4.5 W sleep)
Operating environment 68–86 °F (20–30 °C), 35–65% RH non-condensing
Dimensions (W × D × H) 126.9 × 30.9 × 55.9 in (3,225 × 785 × 1,420 mm) without tables; 126.9 × 104.9 × 55.9 in (3,225 × 2,664 × 1,420 mm) with one set of tables; 126.9 × 185.5 × 55.9 in (3,225 × 4,712 × 1,420 mm) with two sets
Weight 849 lb (386 kg)
Certifications IEC 62368-1, CB, CE (EMC, Low Voltage, Machinery, RoHS), REACH, VCCI Class A, FCC Class A, KC, RCM, EAC, UKCA, Energy Star

See it in action

Official Mimaki product video — Print Roll & Board in one printer: UJ330H-160
How to set up different media types
How to load & print rigid material
Routine maintenance — types & timing

Specifications per Mimaki; actual throughput varies with RIP, file size, resolution and ink coverage. Questions about configuration, inks or availability? Contact the Allprintheads team at +1 657-208-2768 and we'll help you spec the right setup before you order.
