Mimaki UJF-605CII Print Head Assembly - M007040

  • Sale
  • Regular price $5,635.00
  • or

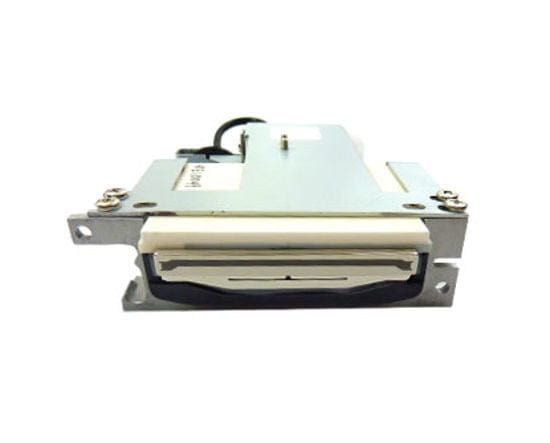

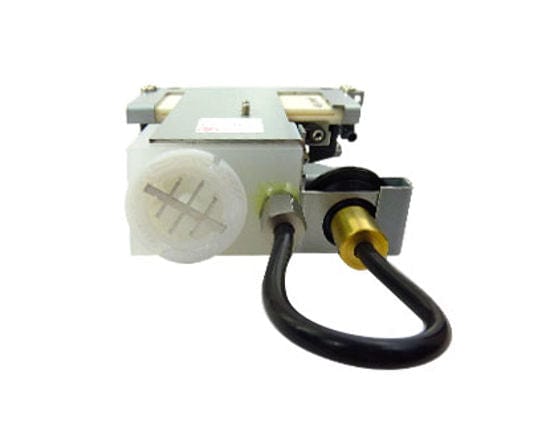

This UJF-605CII head assy is suitable for the Mimaki UJF-605CII / C printers. This assembly includes the printhead, installation bracket, damper and filter. This is the original Mimaki part (number M007040).

Product Specifications


  • Technology: Multi-drop grayscale micro-piezo
  • Grayscale levels: 16
  • Active nozzles: 318
  • Print swathe width: 53.6 mm
  • Nozzle pitch: 169 μm
  • Native resolution: 150 dpi
  • Printhead weight: 148 g
  • Dimensions: 85 x 70 x 23 mm
  • Drop volume: 6 - 90 pl
  • Typical firing frequency: 2.8 - 28 kHz
  • Ink Compatibility: oil-based pigment ink and UV curable pigment ink



    COMPATIBLE PRINTER :

    Mimaki
    • UJF-605C II
