Mimaki UJF200 Series Benchtop UV-LED Flatbed Printer (UJF200-3042 / UJF200-6042)


Price:
Sale price$29,995.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Mimaki • Benchtop UV-LED Flatbed

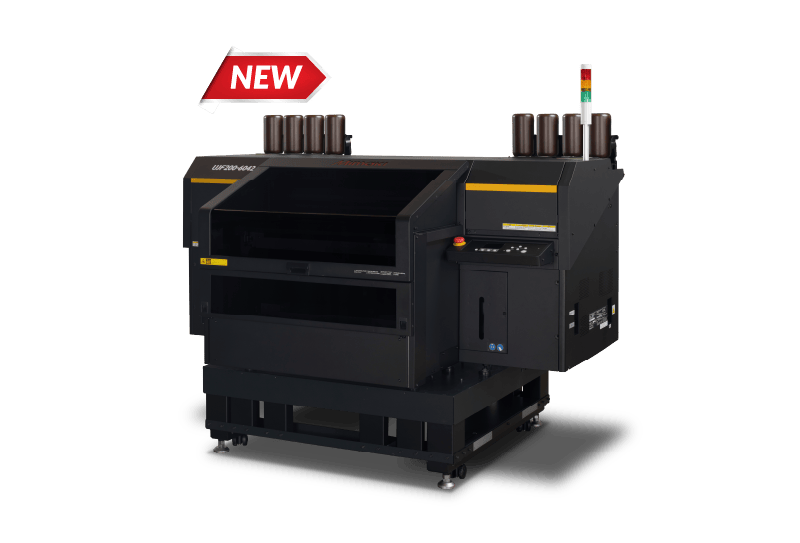

Mimaki UJF200 Series Benchtop UV-LED Flatbed Printer
SKU: UJF200-3042 / UJF200-6042

About this product

More possibilities, one printer. Introduced at PRINTING United 2026, the Mimaki UJF200 Series is a benchtop UV-LED flatbed printer built for direct printing onto rigid and dimensional objects. Choose the A3-class UJF200-3042 (11.8 × 16.5 in) or the A2-class UJF200-6042 (24.0 × 16.5 in). Both models accept objects up to 9.8 in (250 mm) thick and up to 44 lb (20 kg) — a big jump over the previous UJF MkII e generation — and an Advanced Object Sensor detects object thickness, including transparent objects.

A single high-precision 330-series printhead with 4 pL minimum droplet control and MAPS4 delivers smooth gradients, fine lettering and reduced banding at up to 1800 × 1800 dpi. Ink configurations include CMYK, light cyan, light magenta, white, clear, primer and new EFS-150 fluorescent pink and yellow. Optional camera-based media detection and a belt table move the platform from manually loaded direct-to-object work into jig-less, automated positioning and continuous unattended production.

Key features

  • Up to 11.3 tables per hour (4-color, 600 × 900 dpi, 6-pass, single layer — including wiping cycles).
  • 9.8 in (250 mm) head-height clearance and 44 lb (20 kg) table capacity for thicker, heavier objects than any previous UJF benchtop.
  • Single 330-series on-demand piezo printhead with 4 pL minimum drop size, MAPS4 and up to 1800 × 1800 dpi.
  • ELH-100 (hard) and ELS-120 (flexible) eco-friendly advanced-formulation UV inks, plus EFS-150 fluorescent pink/yellow and PR-200 in-line primer; MCT white ink circulation prevents settling.
  • Automated texture features including Braille and 2.5D, with LD1/LD2 profiles for uneven surfaces up to 6 mm.
  • Simplified, faster automated head cleaning and shorter startup wait times for more production uptime.

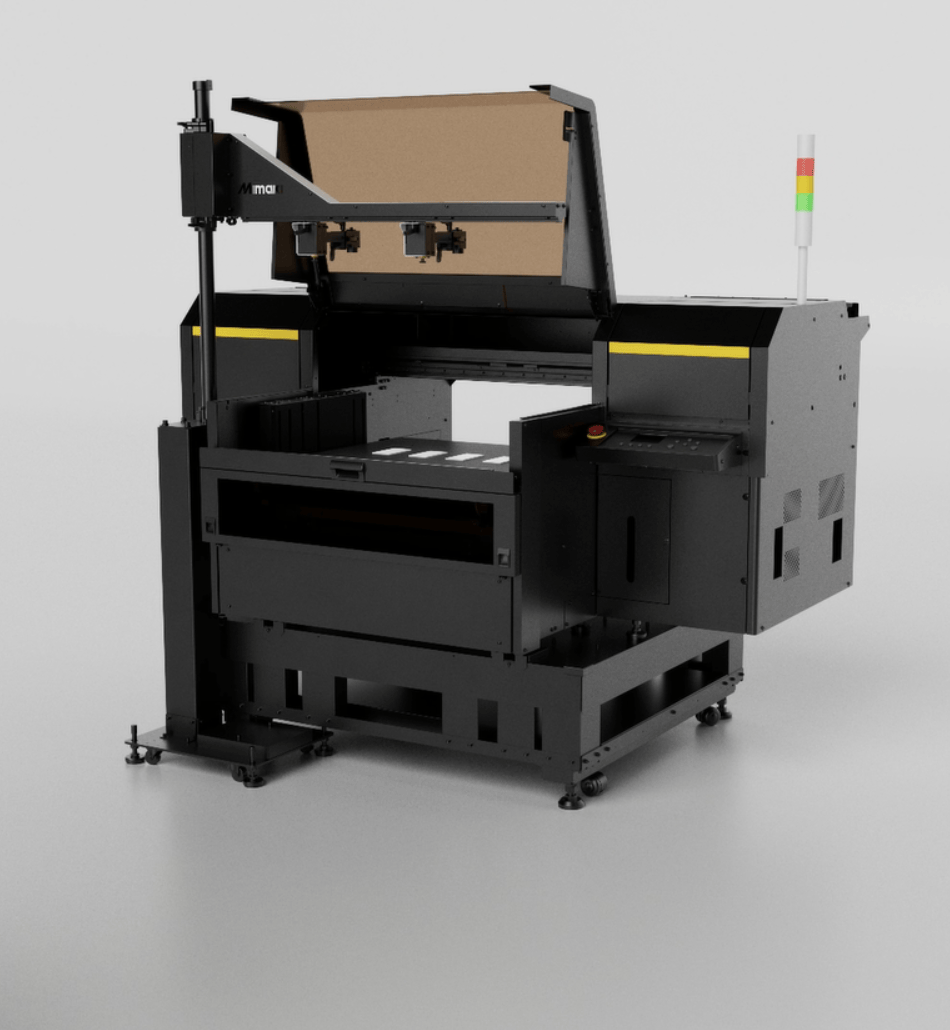

  • Optional camera media detection and belt table enable jig-less positioning and unattended continuous production.

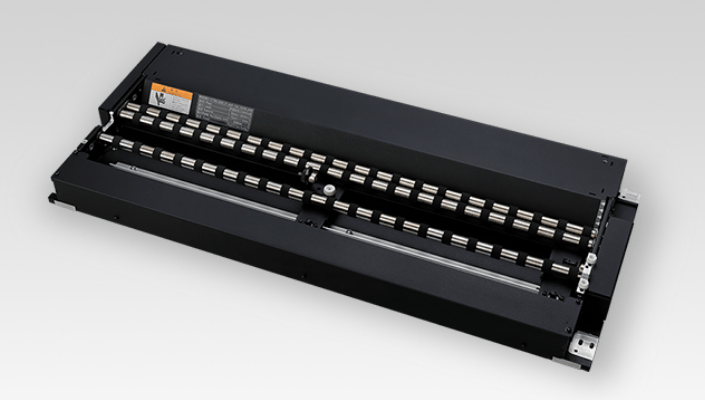

  • Kebab MkII and Kebab HS options add 360° printing on cylindrical and tapered objects.
  • RasterLink8 RIP bundled, with easy fluorescent printing, automatic image alignment and printer-to-printer color matching; remote monitoring via Mimaki Remote Access.

Applications

Direct-to-object

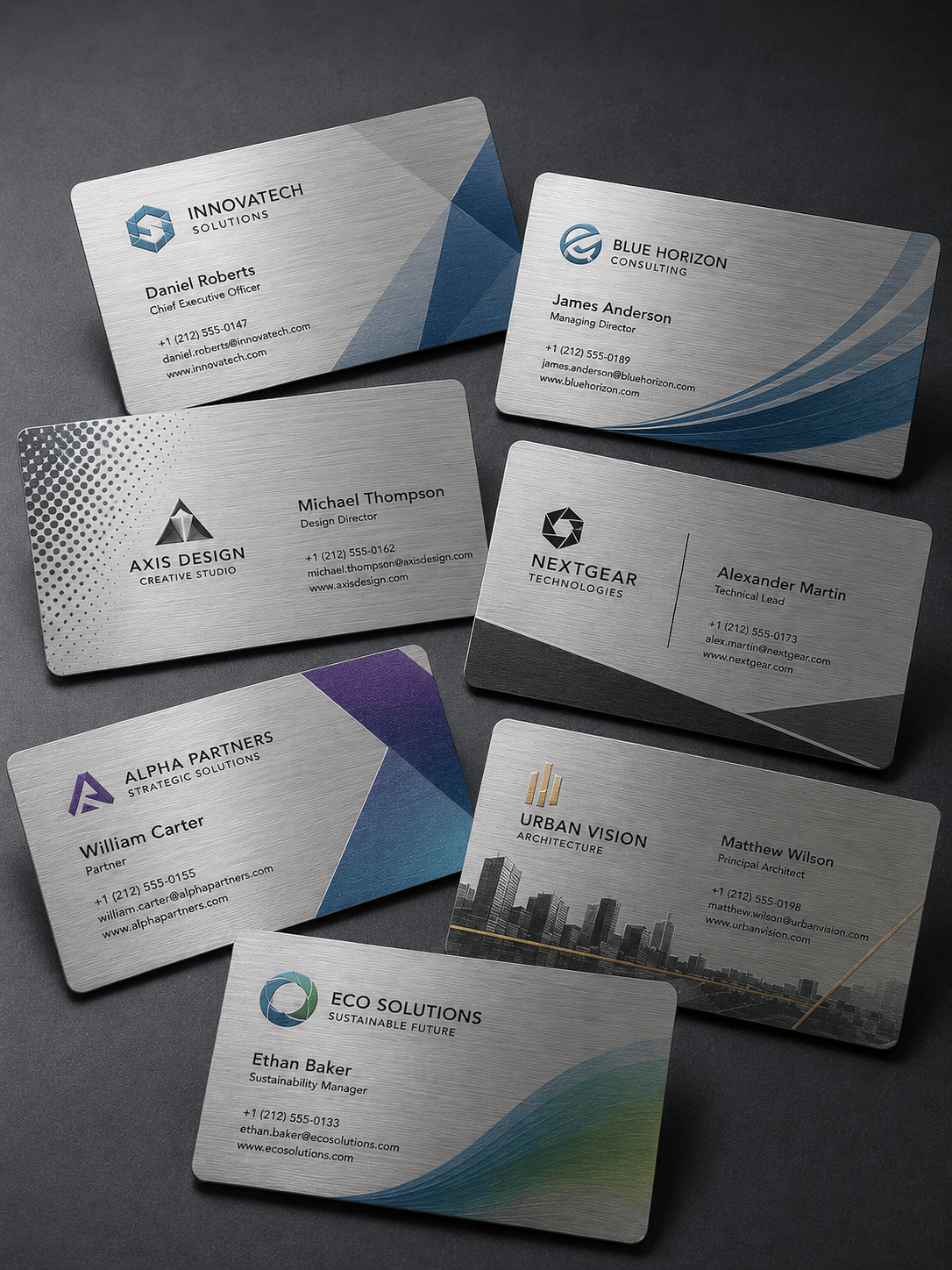

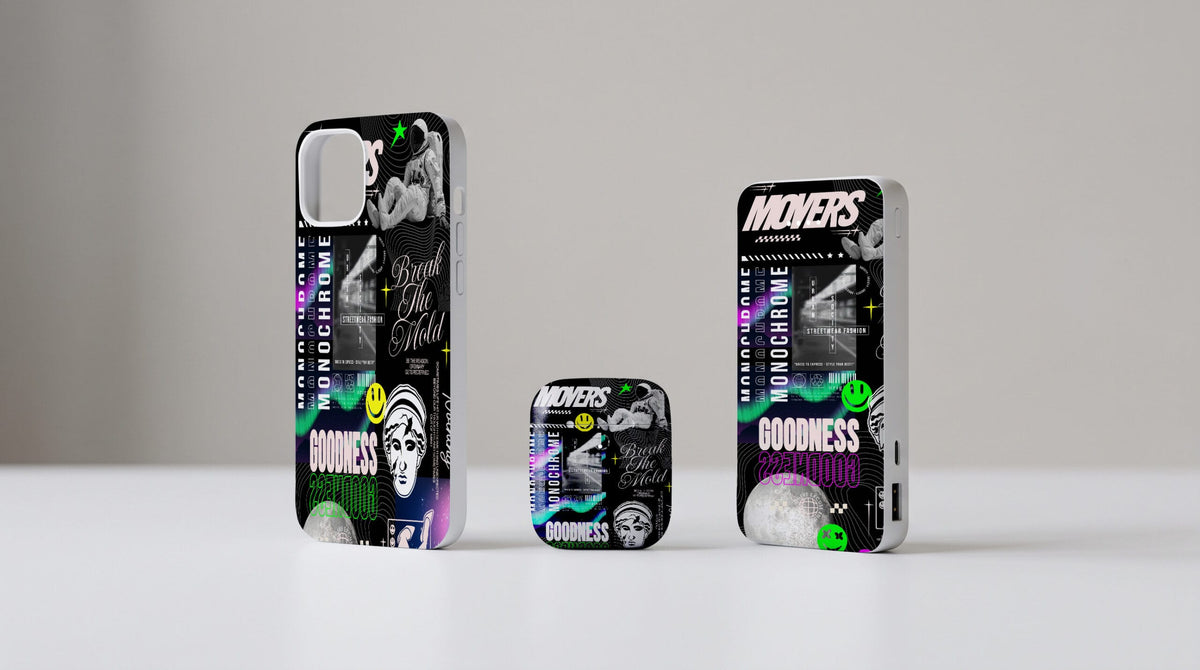

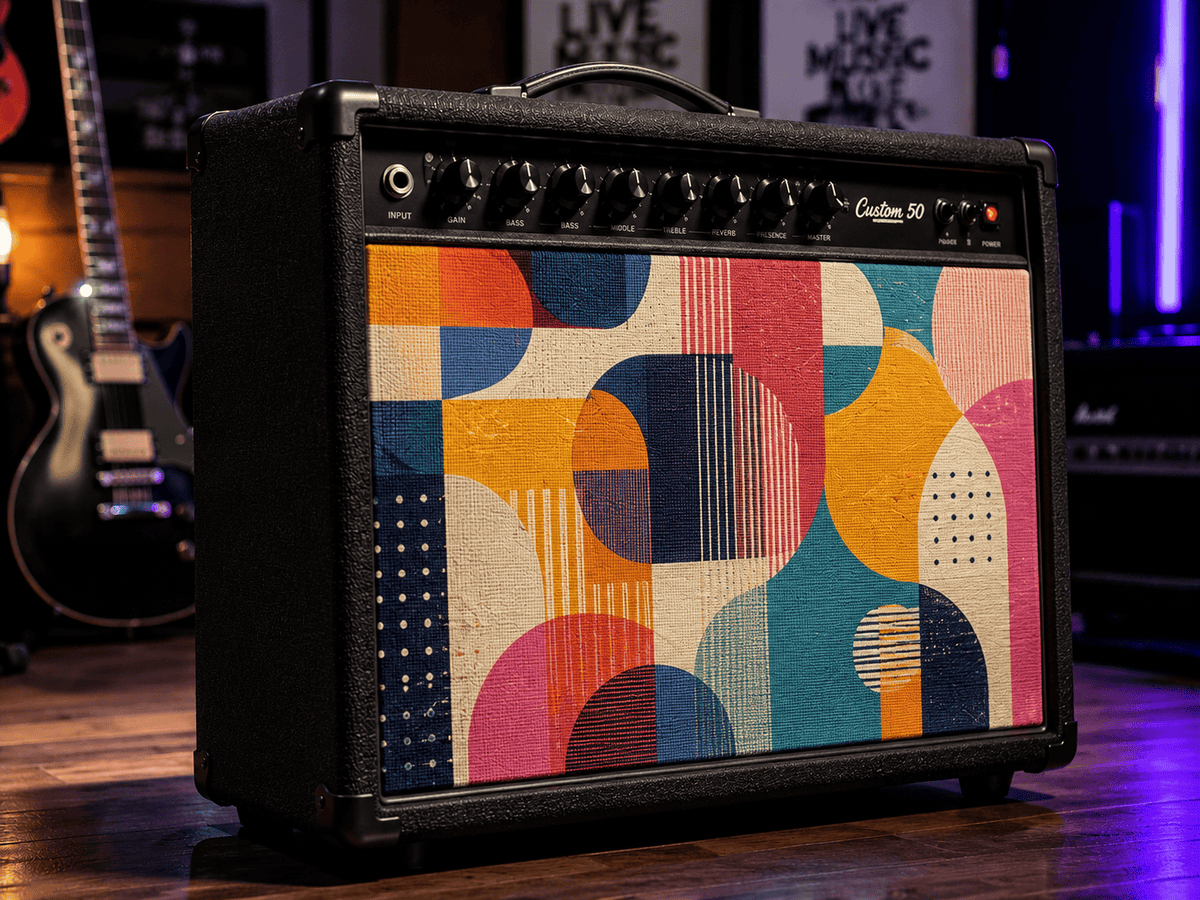

Promotional productsPhone cases & electronicsGadgets & accessoriesSpeakers & consumer devicesGift boxes & packagingMetallic cardsAwards & plaques
Industrial & signage

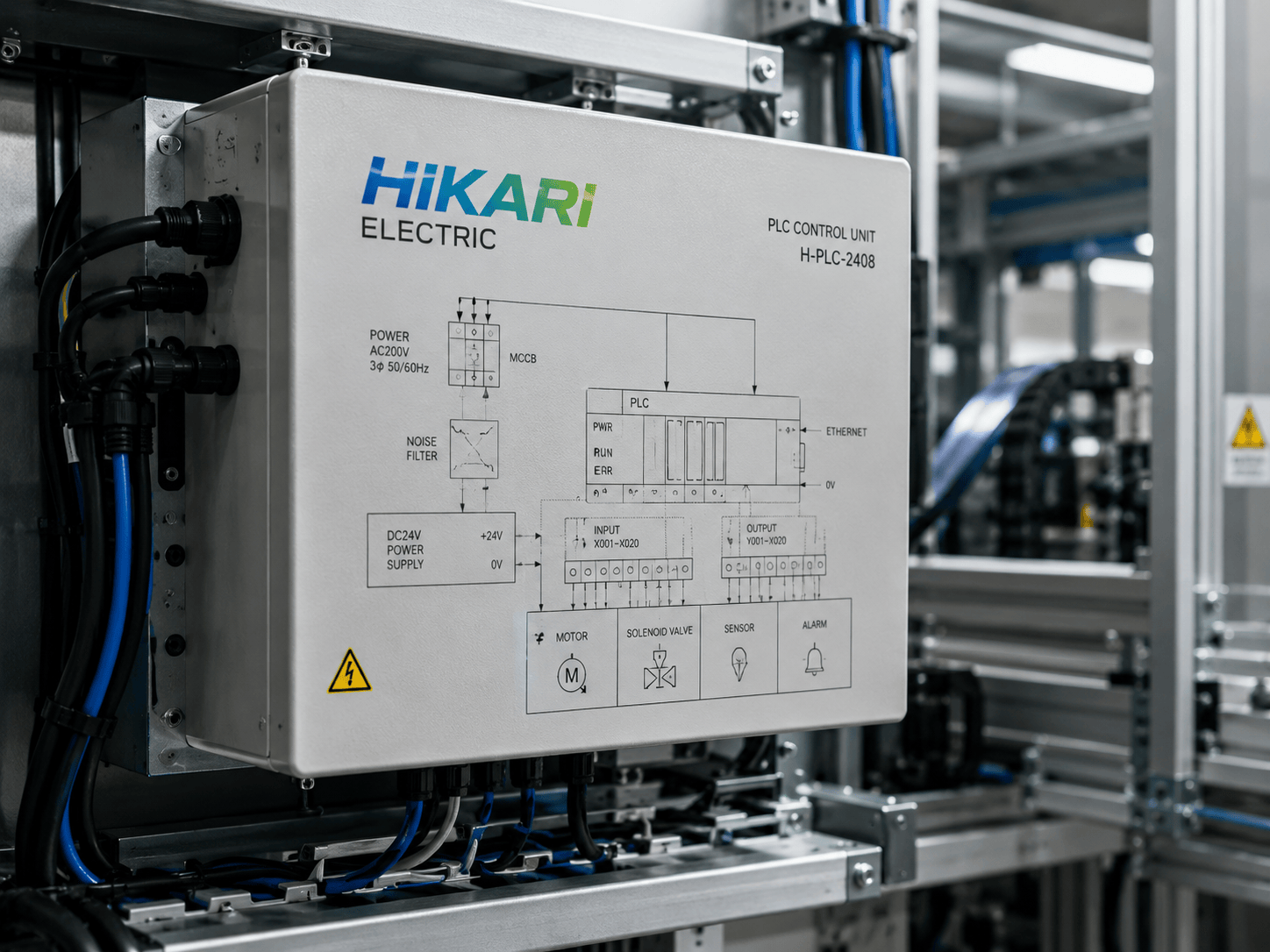

Counter POP displaysMembrane switches & control panelsCosmetics POPBraille & ADA signageCylindrical objects (Kebab)

Specifications

SKU UJF200-3042 / UJF200-6042
Brand Mimaki
Type Benchtop UV-LED flatbed inkjet printer (direct-to-object)
Condition New
Printhead Single 330-series on-demand piezo printhead; 4 pL minimum drop size
Print resolution 600 / 900 / 1,200 / 1,800 dpi
Print speed (4-color mode) Up to 11.3 tables per hour (600 × 900 dpi, 6-pass, single layer, including wiping cycles)
Maximum print area UJF200-3042: 11.8 × 16.5 in (300 × 420 mm, A3)  |  UJF200-6042: 24.0 × 16.5 in (610 × 420 mm, A2)
Media thickness Up to 9.8 in (250 mm)
Media weight Up to 44 lb (20 kg)
Ink Hard UV ELH-100 (C, M, Y, K, Lc, Lm, W, Cl)  |  Flexible UV ELS-120 (C, M, Y, K, Lc, Lm, W, Cl)  |  Fluorescent EFS-150 (Fp, Fy)  |  Primer PR-200
Ink capacity 1 L bottles (all inks); 250 ml bottles (ELH-100, ELS-120, PR-200)
Interface Ethernet 1000BASE-T / USB 2.0
Power supply Single-phase AC 100–240 V ±10%, 50/60 Hz ±1 Hz
Power consumption Maximum 450 W or less; standard 250 W; sleep 4.5 W or less
Operating environment 68–86 °F (20–30 °C), 35–65% RH non-condensing
Dimensions (W × D × H) UJF200-3042: 54.3 × 45.9 × 31.4 in (1,380 × 1,166 × 798 mm)  |  UJF200-6042: 66.1 × 45.9 × 31.4 in (1,680 × 1,166 × 798 mm)
Weight (uncrated) UJF200-3042: 377 lb (171 kg)  |  UJF200-6042: 412 lb (187 kg)
Options OPT-01034 Dedicated mounting stand; OPT-01032 Ionizer Unit 60; OPT-J0424 Exhaust fan unit; OPT-01050 Pilot Lamp; OPT-J0433 Kebab MkII L; OPT-J0528 Kebab HS; OPT-J0515 Deodorizer; OPT-J0521 MDL Gateway; Camera media detection; Belt table
Certifications VCCI Class A, FCC Class A, ETL (IEC 62368-1), CE Marking, CB, REACH, Energy Star, EAC, RCM
Software Mimaki RasterLink8 RIP (bundled)

See it in action

Meet the Mimaki UJF200 Series — More Possibilities. One Printer. (official Mimaki USA)

Specifications per Mimaki; actual throughput varies with RIP, file size, resolution and ink coverage. List price valid in USA and Canada; price excludes ink, shipping, installation and training — ask us about financing and Printing United launch pricing. Questions about configuration, inks or availability? Contact the Allprintheads team at +1 657-208-2768 and we’ll help you spec the right setup before you order.
