Description

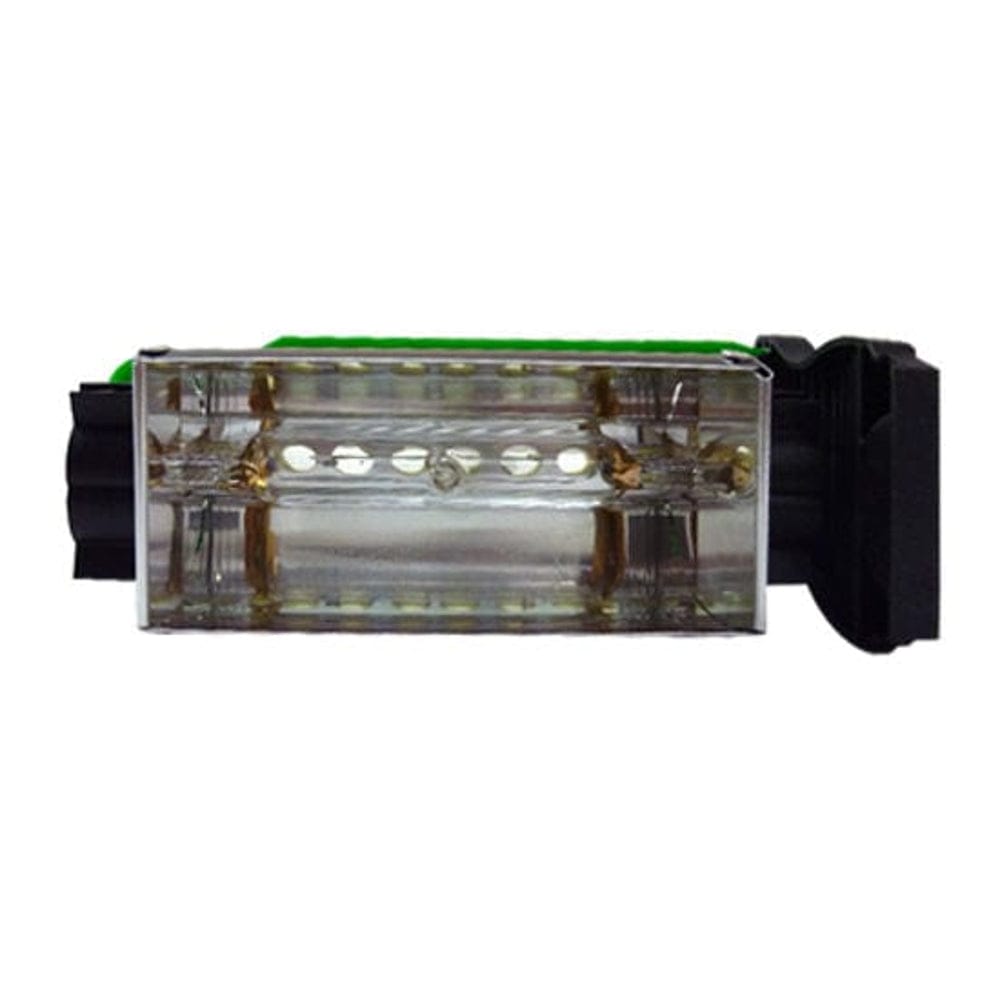

This Subzero 085H Bulb Cassette including the UV bulb and the mirror in a cassette is suitable for Oce Arizona, Fujifilm Acuity HD2504 / Acuity HD2545, and Inca Spyder printers. This is the original Océ part (number 3010105468). The bulb has a total length of 135.73mm, an arc length of 85mm (3.4ins), and a power of 100 W/cm2.
Designed specifically for inkjet curing applications, the world-leading miniature SubZero UV curing system is specifically designed for moving head inkjet printers, the shutter allows the UV exposure to be closed off as the lamp unit moves the media, greatly reducing the risk of reflected UV light causing damage to the expensive printheads.
Detailed research and lengthy cycle testing have enabled a design that offers exceptional service life, eliminating unnecessary downtime and the replacement of worn components. With a total length of 135.73mm, an arc length of 85mm (3.4ins), and power of 100 W/cm2, the SubZero 085H system is ideally suited to medium-sized printer applications using a 20mm inkjet head. This advanced lamp system represents the most effective, lightweight, high output, miniature UV emitter on the market today.
SubZero Standard Features
• Ultra-compact “footprint”
• Ultra lightweight
• High-intensity reflector system
• Quartz Filter
• Quick change Cassette
• Rapid Warm-up and Cooldown
• Integrated air-cooling
• High Flex cable up to 15m
• 500 hours coverage under normal conditions
• 6 months shelf life
SubZero 055 / 085 Compliances
CE/UL 60950-1
ISO CE CB EN60950-1
CE EN 60204
EMC EN 55015
EMC EN 61000
Compatible Printers:
- Canon Océ Arizona 250 GT
- Canon Océ Arizona 300 GT
- Canon Océ Arizona 350 GT
- Canon Océ Arizona 350 XT
- Fujifilm Acuity Advance HD2504
- Fujifilm Acuity Advance HD2545
- Fujifilm Acuity Advance HD2545 X2
- Fujifilm Acuity Advance HYB172
- Inca Spyder 320Q
- Inktec Jetrix 1212FK
- Inktec Jetrix 2513FRQ
- Inktec Jetrix 3015FQ
- Inktec Jetrix KX5
- Inktec Jetrix 2513FQ
