Description
Commanding & Compact

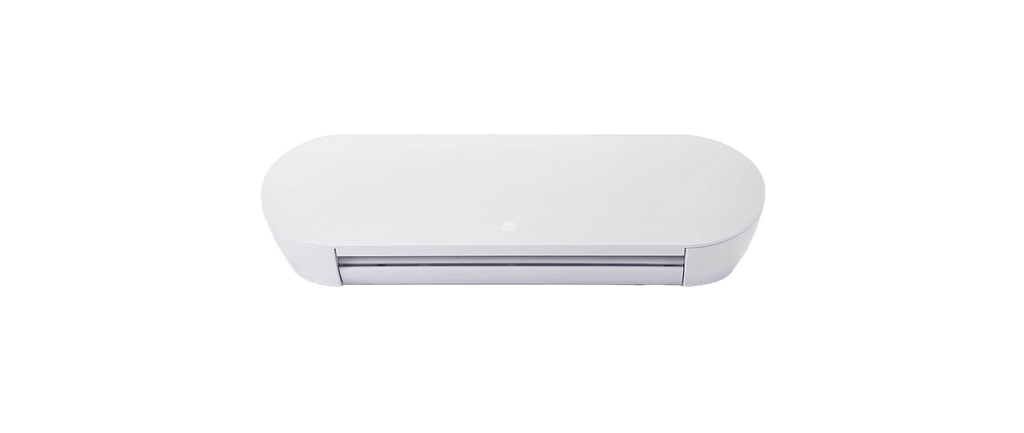

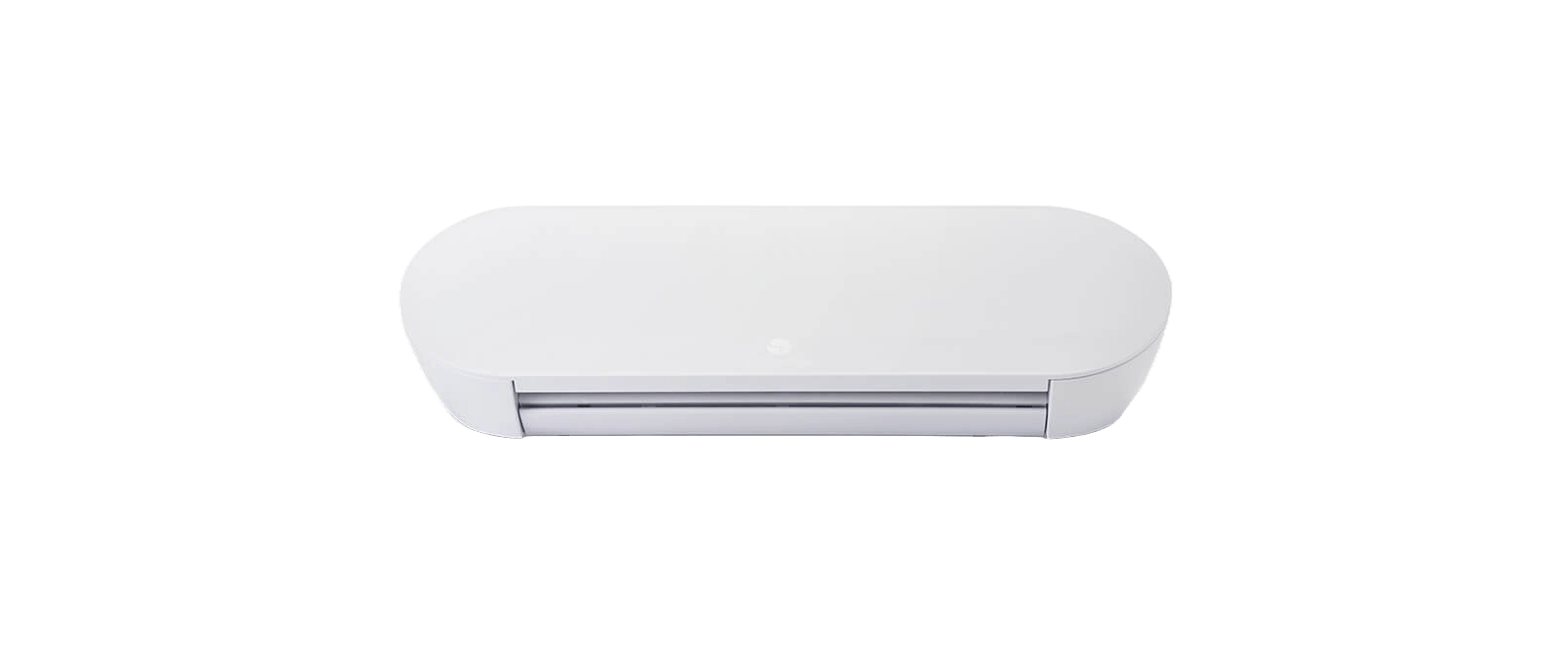

The Portrait 4 is the ultimate compact, portable machine perfect for cutting labels and creating custom stickers and decals.
The Silhouette family just got bigger.
Greater Material Diversity
Portrait4 accommodates a diverse range of materials and various sizes, opening up limitless creative possibilities.
Wireless Bluetooth® connectivity.
Wireless cutting with Bluetooth® connectivity
Expanding Loadable Width
Materials 5” or slightly larger or smaller than standard sizes can now be accommodated.
Powered By Silhouette Studio®
Every Silhouette machine employs the robust Silhouette Studio® software. Access our vast Silhouette Design Store, import custom fonts and images, or craft designs from scratch. Unleash more capabilities through software upgrades.
Command Over Delicate Projects
The Electrostatic Mat enables crafting intricate projects, from delicate paper cuts on thin sheets to making paper flowers and lights.
Powered By Patented Intelligent Path Technology
Intelligent Path Technology enables precise cutting of once-unthinkable ultra-thin paper and facilitates multi-layered cuts.
Curl-free. Tear-free. Easy Weeding.
The Electrostatic Mat* holds thin materials in place rather than rollers or a sticky cutting mat. Thin materials will not tear or curl when removed.
Broaden Your Creativity
Beyond cutting and sketching, creators will have an expanded creative realm with additional tool choices.
Foil Stamp
The Heat Pen offers the capability to foil stamp on paper and faux leather.
Enhanced User Engagement
Effectively utilize materials with improvements to vinyl use. Increase work efficiency with time-saving features and quiet operation.
Technical Specifications
Cutting Area
- 8.5 x 12 inches
With a Cutting Mat
- 8 x 4.7 ft
With lined material (using a Roll Feeder)
Maximum Cutting Force
- 210 gf Tool Holder 1
Maximum Material Thickness
- 2 mm (78.8 mils)
Interface
- USB 2.0 high speed / Bluetooth®
Unit Dimensions
- 17.32 in. x 6.42 in. x 4.88 in. (44.0 cm x 16.3 cm x 12.4 cm)
Unit Weight
- 4 lbs. 1.3 oz (1.85 kg)
Shipping Dimensions
- 19.21 in. x 9.29 in. x 8.11 in. (48.8 cm x 23.6 cm x 20.6 cm)
Shipping Weight
- 6.61lbs (3.0kg)
Warranty
- One-year parts and labor (Limited to USA and Canada only)
Requires Silhouette Studio® software version
- 4.5.700 or higher
System Requirements
- Windows 10 or later, macOS X 10.14 (64bit) or later
Machine features
- Power tool capability
- Compatible auto cross-cutting
- Optional Electrostatic mat
- Adjustable pinch rollers
- Improved Print & Cut registration scanning
- 8.5 inch cutting width
- Cut up to 16 feet in length
- Matless cutting capabilities 2 mm clearance
- Automatic tool detection
- Wireless cutting with Bluetooth® connectivity
- PixScan™ compatible
- Driven by Silhouette Studio® giving you limitless design options to customize your projects
What’s included with your purchase
- Silhouette Portrait®4
- AC Adapter/Power cable set
- Cutting mat
- AutoBlade
- Blade adjustment tool
- Silhouette Studio® software (download)
- 50 exclusive designs (available with registration)
- 1-month Silhouette Design Store subscription (available with registration)
