Ricoh GEN4 Printhead 7PL - N220792/MH2420


Price:
Sale price$1,450.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Ricoh • Printhead

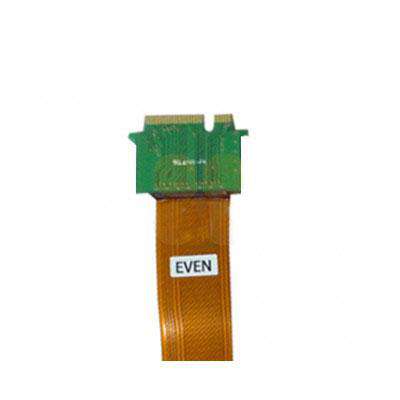

Ricoh GEN4 Printhead 7PL - N220792/MH2420
SKU: N220792

About this printhead

The Ricoh GEN4 greyscale printhead is suitable for a range of water, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. This Ricoh GEN4 is available in two different cable lengths: 19cm long and 44cm long and a choice of hose barb ink inlet or o-ring sealed ink inlet. Ricoh part number N220792W, N220792S or N220792E are all Ricoh GEN4 7PL printheads with a long cable and hose barbs. Technical Specifications - Size: 63 x 63 x 16,2 mm (excluding cables) - Head Materials: SST, Ni, and Epoxy Adhesive - Nozzle Plate Surface: Non-coated SST - Number of Nozzles: 2 x 192 nozzles - Nozzle Spacing: 0,1693 mm - Piezo Type: D33 Stacked PZT - Temperature Control: Integrated Heater and Thermistor - Operator Temperature range: Up to 60° C - Native Drop Volume: 7 pl - Drop Volume Range: 5-25 pl with greyscale - Jetting Frequency: Up to 30 kHz - Life: 100 billion actuations per nozzle

Specifications

SKU N220792
Brand Ricoh
Condition New

Compatible printers

Agfa
Jeti 1224 UV HDC FTRJeti 3020 UV Titan FTR
Ampla Digital
Rio 8000 HybridTarga XT 1804Targa XT 1808Targa XT 1816Targa XT 3204Targa XT 3208Targa XT 3216
Anajet
mPowerMPower MP5iMPower MP10i
ATP Color
DFP1320 G4DFP1000 G4DFP740 G4
CET Color
X-Press 500Q
Digitex
Gunsjet SF-1914Gunsjet SR-1808Gunsjet SR-2508Gunsjet SR-3208Gunsjet UF4547
Durst
Omega 1Omega 2
DYSS
Apollo GF2616-08FApollo GF2616-10FFWApollo GF2616-10FRWApollo GF2616-12FApollo GF2616-12SApollo GF2616-14SFWApollo GF2616-14SRWApollo GF2616-16FApollo GF2616-16SFWFVApollo GF2616-16SRWRVApollo GH1600-08FApollo GH1600-08SFApollo GH1600-08SRApollo GH1600-10FMApollo GH1600-12SApollo GH1600-12SFWFVApollo GH2200-08FApollo GH2200-08SFApollo GH2200-08SRApollo GH2200-10FMApollo GH2200-12SApollo GH2200-16SFWFVApollo GH2600-08FApollo GH2600-08SFApollo GH2600-08SRApollo GH2600-10FMApollo GH2600-12SApollo GH2600-12SFWFV
Gandy Digital
Domin8torPred8tor
Inkcups
X2Helix
M&R
M-LinkI-Image s
Mimaki
UJF-3042

All printheads are brand new, never used or refurbished. Not sure this is the right head for your machine? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
