Ricoh GEN5 Printhead (Cable: 248mm) - N221414J


Price:
Sale price$2,650.00 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
When product is not in stock, usually the time to process is 5-7 days.

Description

Mimaki • Printhead

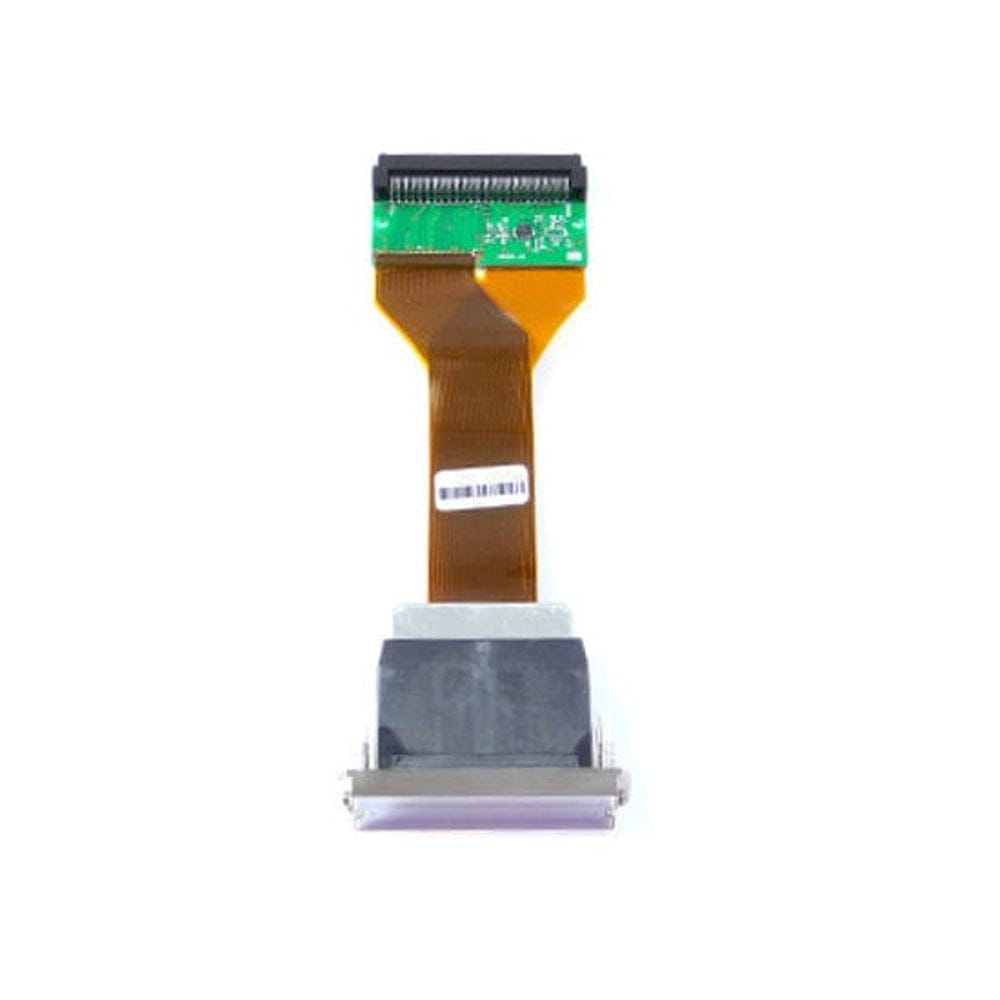

Ricoh GEN5 Printhead (Cable: 248mm)
SKU: N221414J

About this printhead

This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to four colors and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh's original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is available in two different cable lengths (connector included): 248mm and 500mm.

Specifications

SKU N221414J
Brand Ricoh
Condition New
Dimensions 89 x 25 x 69 mm (excluding cables)
Number of nozzles 4 x 320 nozzles
Nozzle density up to 600 NPI
Native drop volume 7 pl
Drop volume range 7 - 35 pl
Drop velocity 7 m/s

Compatible printers

Compatible printers
Jeti Mira MG2716 S/HSJeti Mira MG2732 S/HSJeti Tauro H2500Jeti Titan HSJeti Titan SNovaJet UV M6Q5-1000Q5-1000hQ5-250Q5-250hQ5-500Q5-500h1212 UVFR3210FRT3116M10M6M8HT1600UV HR4HT1610UV FR4HT2500UV HR8HT2512UV-D FR8HT3116UV FR8HT3200UV HG12HT3200UV HR8UJV500-160

All printheads are brand new, never used or refurbished. Not sure this is the right head for your machine? Contact the Allprintheads team with your printer make, model and serial number and we'll confirm the correct SKU before you order.
