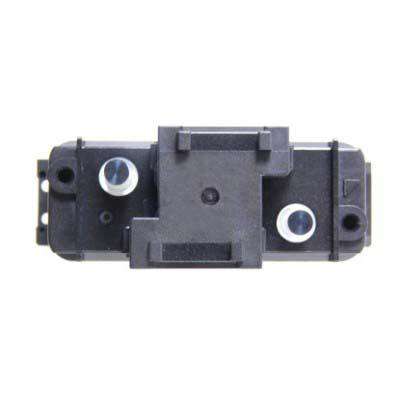

Ricoh GH2220 Printhead - Xante, Wer, Oric


Price:
Sale price$799.00 USD
When product is not in stock, usually the time to process is 5-7 days.

Pickup available at Main Office

Usually ready in 2 hours

Description

This Ricoh printhead is suitable for GH2220 based printers. This is the original Ricoh part (number GH2220).

Technical Specifications

  • Size: 61.8(W) × 40.5(D) × 23.3(H) mm (2.43" × 1.59" × 0.92")
  • Number of Nozzles: 384
  • Nozzle spacing (Within a row): 0,1693 mm/row
  • Nozzle spacing (Row to row distance): 0.931 mm
  • Method: Piston pusher with the metallic diaphragm plate
  • Temperature Control: No heater or thermistor
  • Drop volume: Binary mode : 3-5pl / Grey-scale mode : 21±2pl
  • *depending on the ink
  • Jetting Frequency: Binary mode : 30kHz / Grey-scale mode : 24kHz
  • Life: 30 billion actuations per nozzle
  • Compatible ink: Aqueous, Solvent, UV
    COMPATIBLE PRINTERS :
    Oric
    • TS1519-GH-6H
    WER
    • RF1808
    • R3208
    • R1808
    • R3T
    • RD3T
    Winjet
    • W2-GH2220
    Yuxunda
    • SGH0606
    • SGH0609
    • SGH1013
    • SGH2513

    Xante

    • X32
