Description

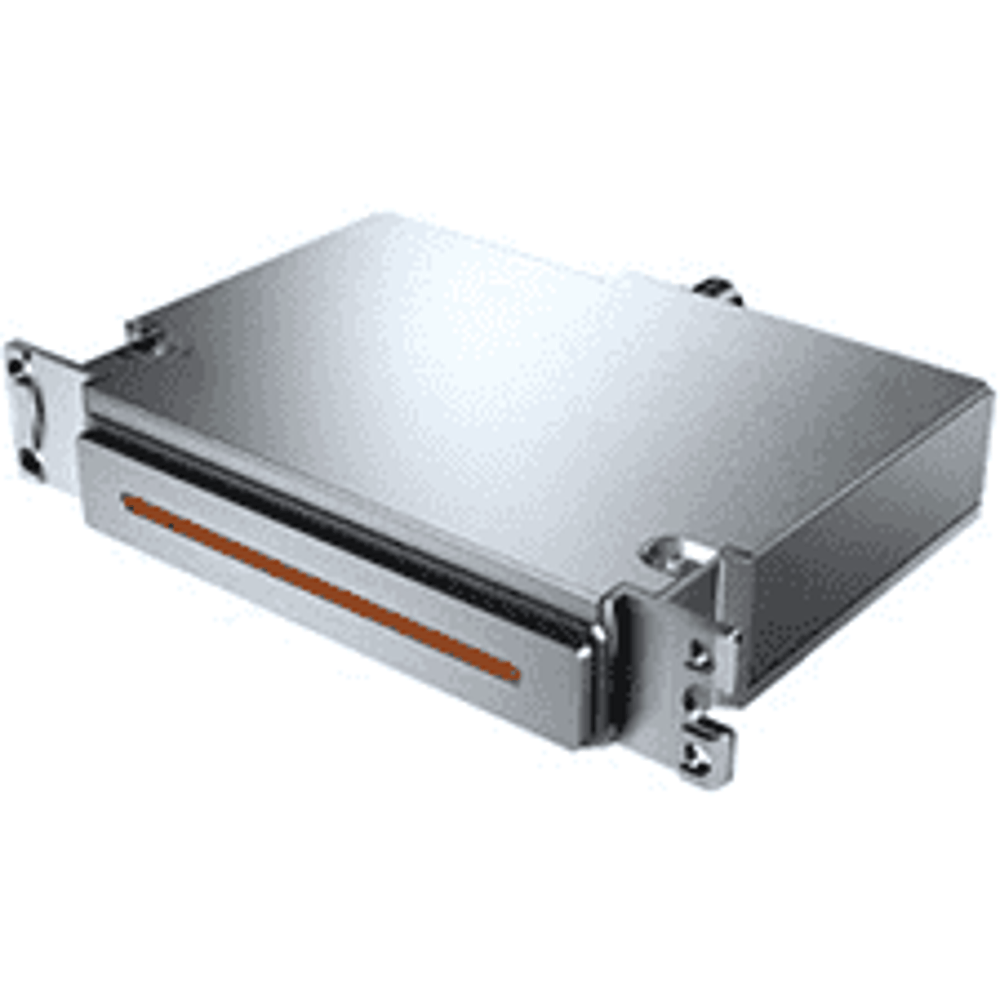

The Seiko SPT1020 printhead offers high-resolution and high-speed with 1020 nozzles and 35pl. It features a fast firing frequency and high precision combined with a long useable life. This original print head is used on a grand format digital printers.
Technical Specifications:
- Active nozzles: 1020
- Nozzle density: 185 npi
- Print swathe width: 71.9 mm
- Native resolution: 360 dpi
- Max. Resolution: 720 dpi
- Firing frequency: 6.46 or 8.29 Khz
- Drop Size: 35 pl
COMPATIBLE PRINTERS :
CrystalJet
Icontek
- M5
- M7
- TW-3306FB
- TW-3306FD
- TW-3306FZ
- TW-3306HB
- TW-3308FB
- TW-3308FD
- TW-3308FZ
- TW-3308HB
- TW-5308FZ
Infiniti
- Challenger FY-3208GS
- Challenger FY-5008GS
- Challenger FY-UV2508S
Phaeton
Seiko
