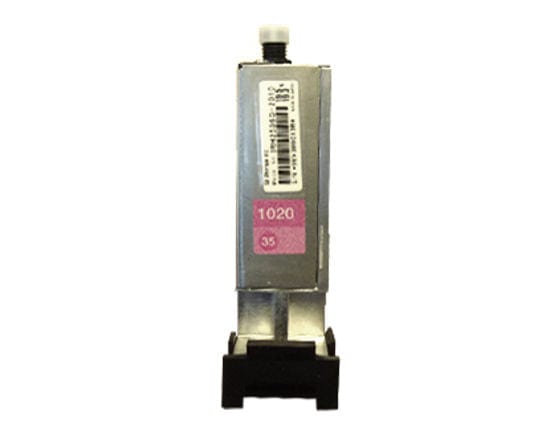

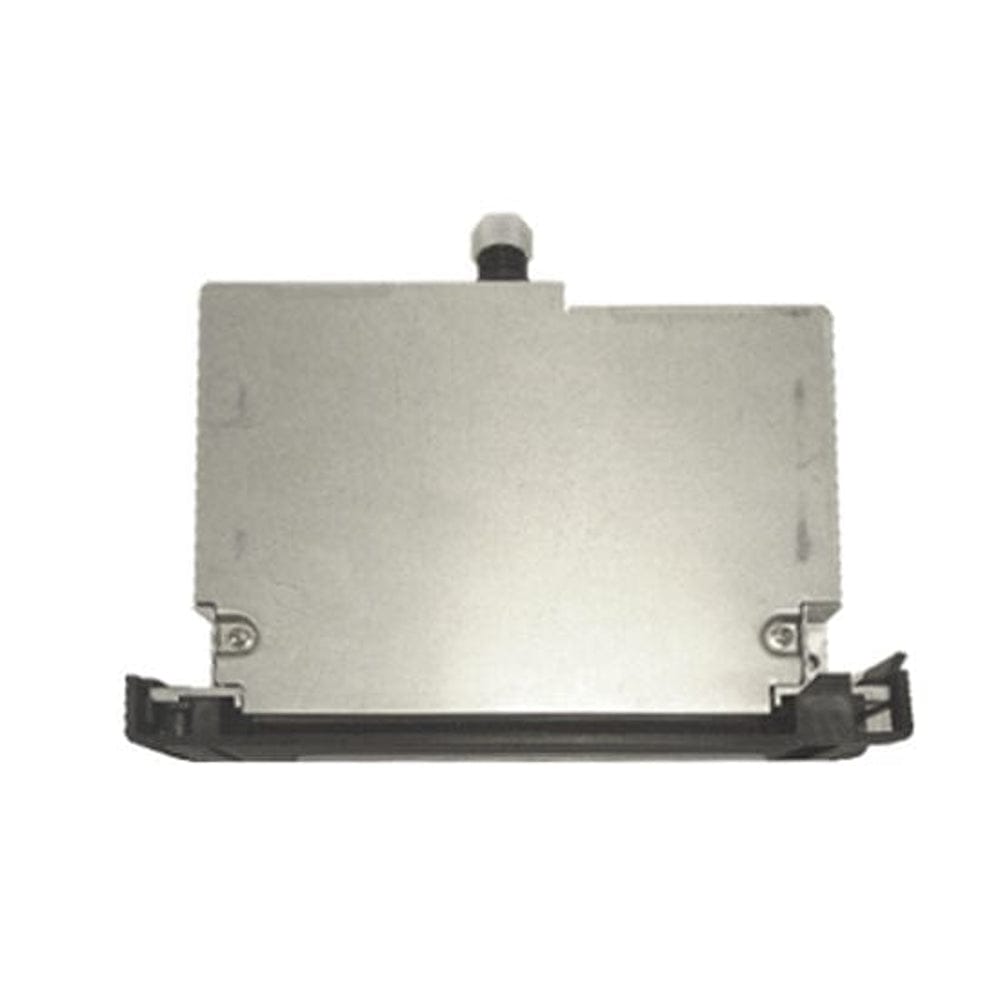

Seiko Spt-1020 printhead - IRH2536Q-2010

  • Sale
  • Regular price $1,699.00


The Seiko SPT1020 printhead offers high-resolution and high-speed with 1020 nozzles and 35pl. It features a fast firing frequency and high precision combined with a long useable life. This original print head is used on a grand format digital printers.

Technical Specifications:


- Active nozzles: 1020
- Nozzle density: 185 npi
- Print swathe width: 71.9 mm
- Native resolution: 360 dpi
- Max. Resolution: 720 dpi
- Firing frequency: 6.46 or 8.29 Khz
- Drop Size: 35 pl.

Compatible Printers:

  • M5
  • M7
  • TW-3306FB
  • TW-3306FD
  • TW-3306FZ
  • TW-3306HB
  • TW-3308FB
  • TW-3308FD
  • TW-3308FZ
  • TW-3308HB
  • TW-5308FZ
  • TW-3308RS
  • TW-3304XB
  • TW-3306X
  • TW-3308MB
  • TW-3200F3
  • FY-3208GS
  • FY-5008GS
  • FY-UV2508S
