Description

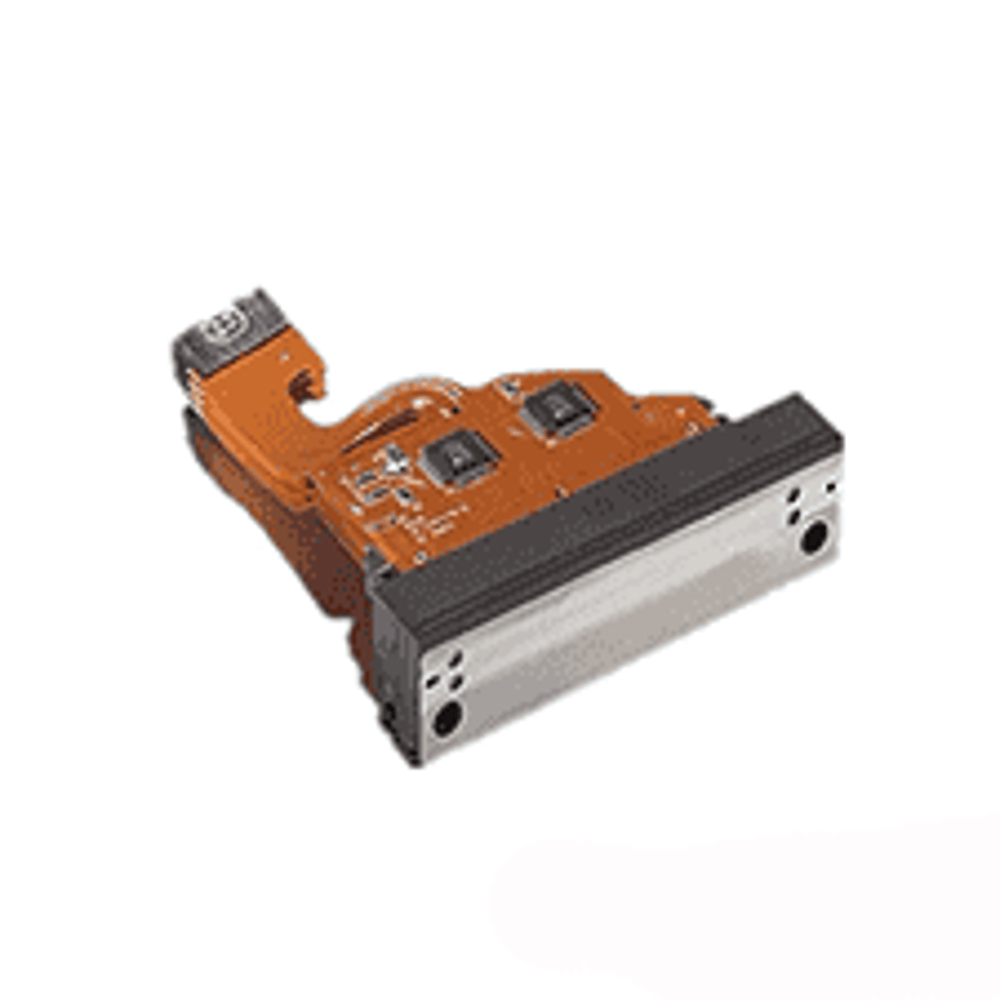

The Spectra Nova JA 256/80 AAA is a compact inkjet jetting assembly designed specifically for applications using solvent, UV-curable or aqueous ink formulations at resolutions up to 450 dpi.
Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a 0.011 inch distance between nozzles.
Features
- 75 picoliters calibrated drop size.
- Resolutions up to 450 dpi.
- 256 individually addressable, inline nozzles.
- Supports solvent, UV-curable and aqueous inks.
- Orientation independent.
- Designed for long service life.
- Operation up to 90ºC [194ºF].
- Dual ported for ease of flushing.
- Optional temperature control.
| Spectra NOVA 256/80 AAA | |
| Active nozzles | 256 |
| Nozzle spacing | 279 μm |
| Nozzle diameter | 52 μm |
| Drop velocity | 8 m/s |
| Printhead weight (dry) | 113 g (3.98 oz) |
| Fluid type | Aqueous, Organic solvent, UV curable |
| Drop volume* | 75 pl |
| Typical firing frequency | 20 kHz |
| Dimensions (WxDxH) | 112.79×26.67×101.60mm |
