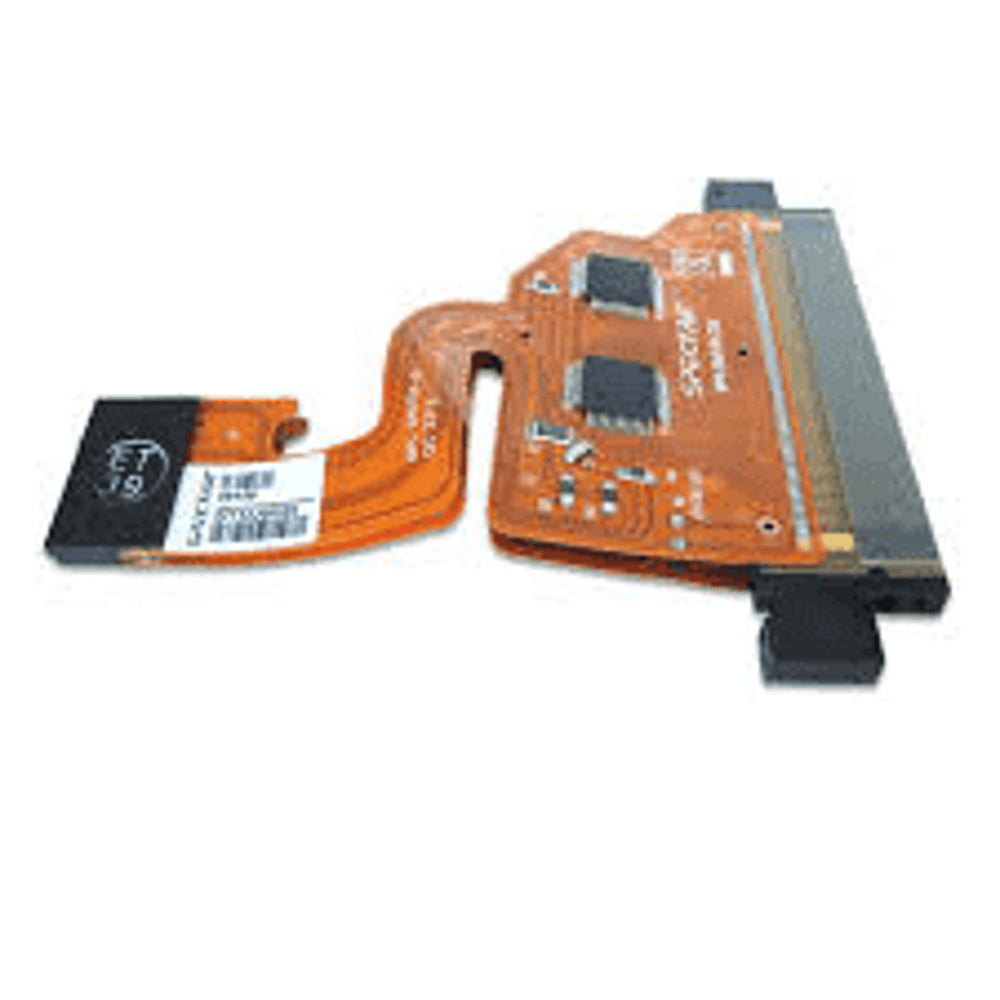

Spectra SL-128/80 AA Printhead

  • Sale
  • Regular price $1,350.00
  • or


The SL-128 AA is a highly compact and light-weight jetting assembly designed specifically for ink jet applications requiring multiple printheads packed tightly together.

These modules are ideal for fast moving, high performance printer carriage designs. General compatibility with a wide range of fluids makes the SL-128 AA jetting assembly extremely versatile.

Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 jets. The nozzles are arranged in a single line, at a 0.020 inch distance between nozzles. Resolutions up to 450 dpi are possible.

Features

  • 80 picoliter calibrated drop size.
  • Resolutions up to 450 dpi.
  • 128 individually addressable, inline nozzles.
  • Lightweight and highly stackable.
  • Orientation independent.
  • Supports solvent and UV-curable based inks.
  • Dual ported for ease of flushing.
  • Optional temperature control.
SL-128/80 AA
Active nozzles 128
Nozzle spacing 508 μm
Nozzle diameter 80 μm
Drop velocity 8 m/s
Printhead weight (dry) 35 g (1.23 oz)
Fluid type Organic solvents, UV curables
Drop volume* 80 pl
Typical firing frequency 30 kHz
Dimensions (WxDxH) 110x5x110mm





COMPATIBLE PRINTERS :



3M
  • Virtu 3600
Agfa
  • Jeti 1224 UV HDC FTR
  • Jeti 2030 X-2 UV Flatbed
  • Jeti 3150 X-2 UV Flatbed
  • Jeti 3300 Solvent RTR
  • Jeti 3312 Solvent RTR
  • Jeti 3318 Solvent RTR
  • Jeti 3324 AquaJet RTR
  • Jeti 3324 Solvent RTR
  • Jeti 3324 UV RTR
  • Jeti 3348 Solvent HSS RTR
  • Jeti 3348 UV Galaxy RTR
  • Jeti 3348 UV Jetspeed RTR
  • Jeti 5000 Solvent RTR
  • Jeti 5024 Solvent RTR
  • Jeti 5024 UV JetSpeed RTR
  • Jeti 5048 UV XL JetSpeed
Infiniti
  • Challenger FY-6250SL
Keundo
  • SupraQ 3000 Bio
  • SupraQ 3300 PRO
  • SupraQ 3300DS
  • SupraQ 3300S
Kodak
  • Versamark DS4350
